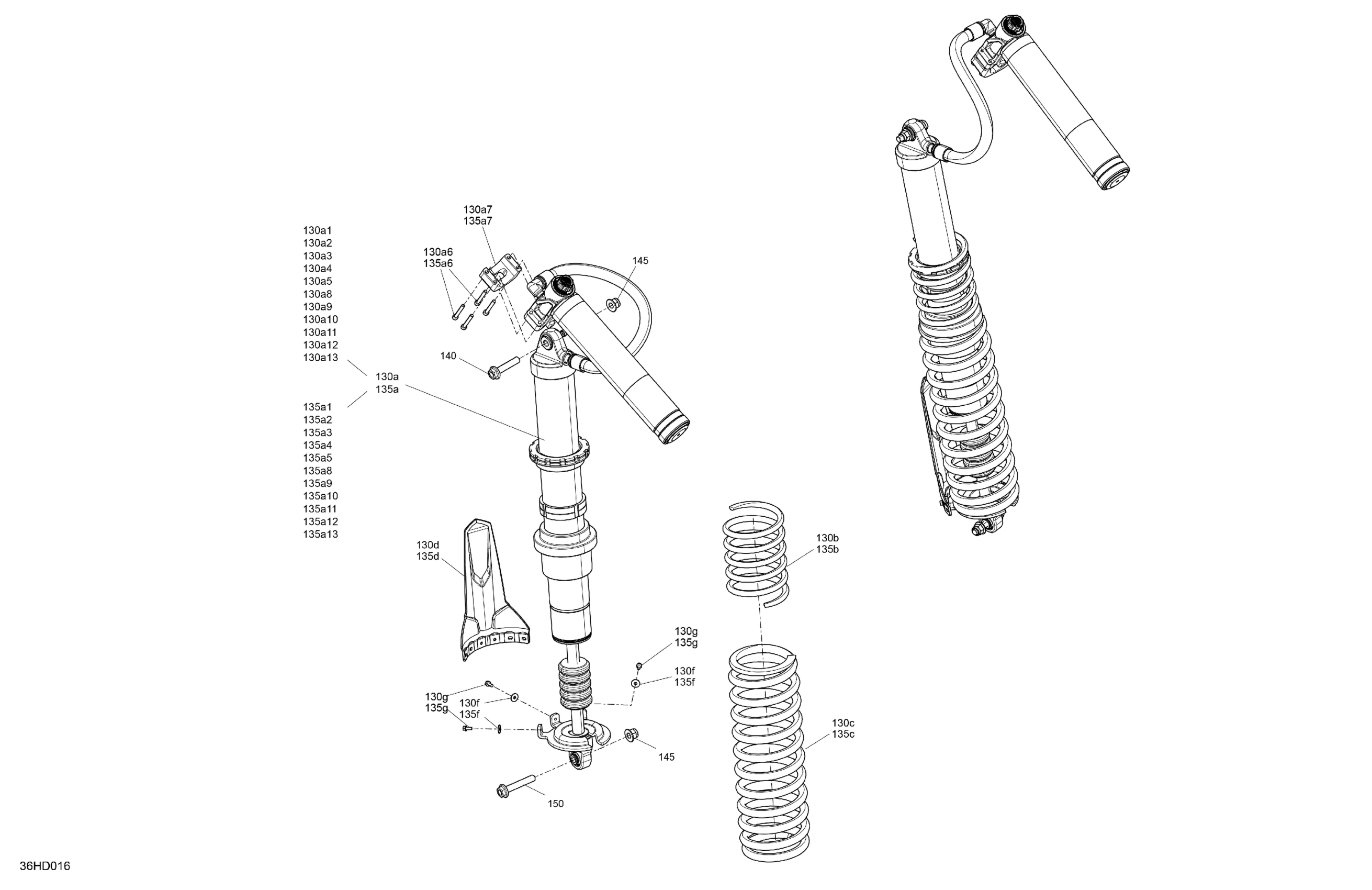

Can-Am Maverick Turbo RR - XRS STD - 7TRB - Fiery Red Metallic - 72" Width, 2024 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Adjustable Shock Absorber | Includes 130a to 130a13

706004750

$1,639.99

130a1

Spherical Bearing

715900337

$80.74

130a2

Ball Joint

706004078

$45.12

130a3

O-Ring Bushing

715900338

$10.98

130a4

Circlip

715900480

$11.06

130a5

Reducer

715900481

$27.66

130a6

Screw M6 X 35

715900521

$5.52

130a7

Réservoir Clamp

715900522

$36.89

130a8

Preload Ring

715900605

$27.66

130a9

Preload Ring Backup

715900606

$27.66

130a10

Spring Adapter

715900607

$10.77

130a11

Crossover ring

715900608

$119.97

130a12

Spring Retainer

715900597

$36.89

130a13

Spring Coupler

715900593

$104.58

130b

Legion Red, Compression Spring

706005554

$119.97

130c

Legion Red, Compression Spring

706005561

$147.66

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

135a

Rear Adjustable Shock Absorber | Includes 130a to 130a13

706004750

$1,639.99

135a1

Spherical Bearing

715900337

$80.74

135a2

Ball Joint

706004078

$45.12

135a3

O-Ring Bushing

715900338

$10.98

135a4

Circlip

715900480

$11.06

135a5

Reducer

715900481

$27.66

135a6

Screw M6 X 35

715900521

$5.52

135a7

Réservoir Clamp

715900522

$36.89

135a8

Preload Ring

715900605

$27.66

135a9

Preload Ring Backup

715900606

$27.66

135a10

Spring Adapter

715900607

$10.77

135a11

Crossover ring

715900608

$119.97

135a12

Spring Retainer

715900597

$36.89

135a13

Spring Coupler

715900593

$104.58

135b

Legion Red, Compression Spring

706005554

$119.97

135c

Legion Red, Compression Spring

706005561

$147.66

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Hex. Flange Screw M12 X 70

250000858

$3.11
