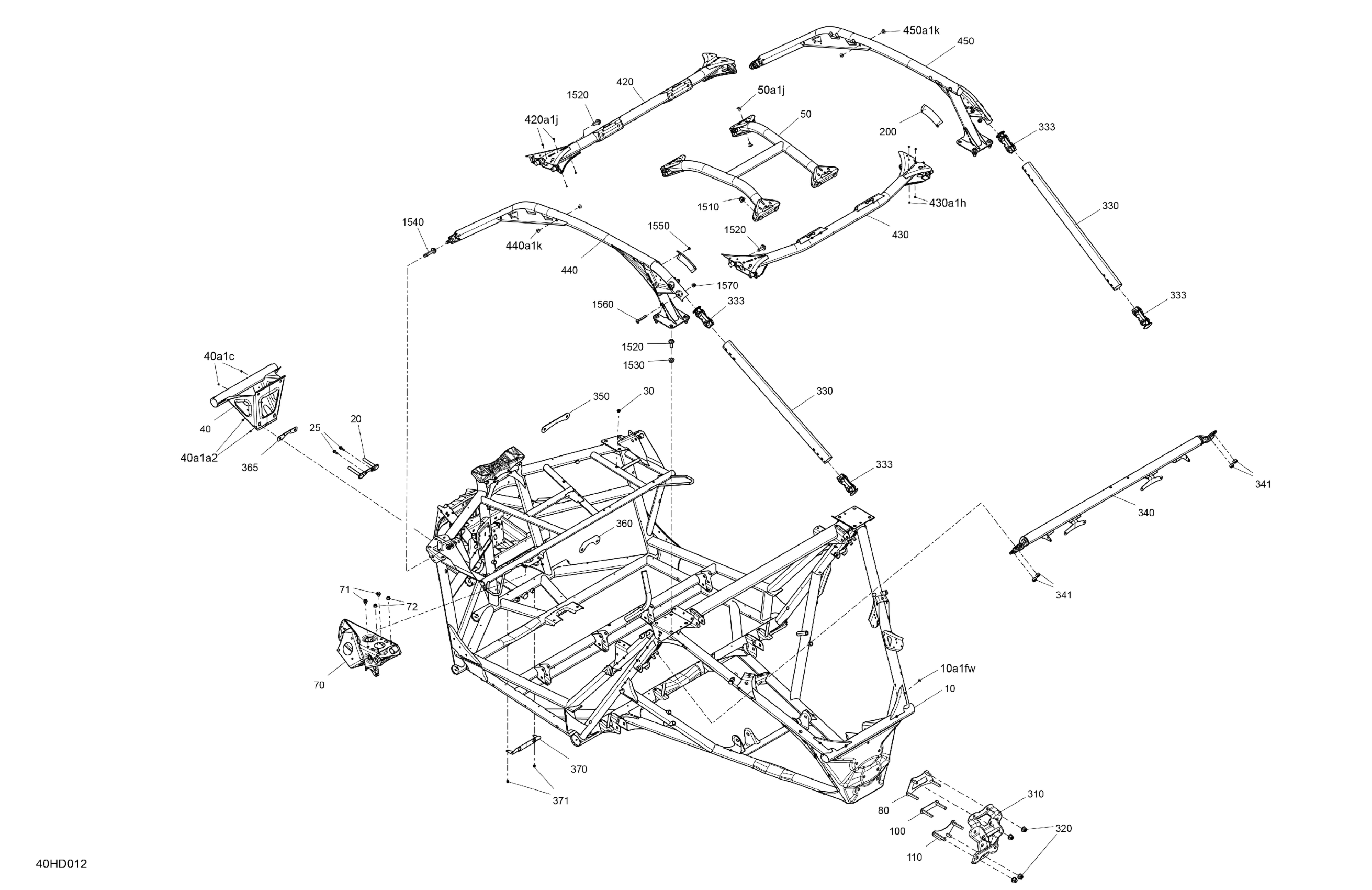

Can-Am Maverick Turbo RR - XRS Smart Shock - 7TRM - Dazzling Blue - 72" Width SAS, 2024 Frame - System Diagram

Liquid Titan, Frame Kit

715009100

$3,459.99

Pop Rivet 3/16 X ,425

293150293

$0.30

Front Plate

705211561

$17.88

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Liquid Titan, Front Bumper Kit

715009852

$96.24

Pop Rivet 3/16 X ,425

293150293

$0.30

Pop Rivet 3/16 X ,425

293150293

$0.30

Liquid Titan, Reinforcement Cage | Includes 50 to 50a1j

705209864

$91.99

Pop Rivet 3/16 X ,425

293150293

$0.30

DPS Support

705206924

$64.15

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

Hex. Elastic Flange Nut M8

233281416

$1.43

Rear Upper Plate

705211557

$17.13

Rear Central Plate

705211558

$17.13

Rear Lower Plate

705211556

$16.39

Liquid Titan, Upper Plate Kit

705211601

$24.60

Junction Plate Kit

715008492

$40.27

Elastic Flange Nut M12

250001195

$2.46

Liquid Titan, Rear Pillar

705209861

$24.99

Sleeve

705210648

$8.42

Safety Belt Anchorage

705212141

$112.66

Elastic Stop Nut M12

232521416

$1.61

Connecting Plate

705211552

$4.81

Retaining Plate

705210249

$4.72

Front Plate

705211553

$2.69

Support

705211560

$10.67

Pop Rivet 3/16"

390402200

$0.30

Liquid Titan, Front Cross Member | Includes 420 to 420a1j

705209868

$204.99

Pop Rivet 3/16 X ,425

293150293

$0.30

Liquid Titan, Rear Cross Member | Includes 430 to 430a1h

705209870

$194.74

Pop Rivet 3/16 X ,425

293150293

$0.30

Liquid Titan, LH Cage Kit

715008446

$399.99

Pop Rivet 3/16 X ,425

293150293

$0.30

Liquid Titan, RH Cage Kit

715008460

$399.99

Pop Rivet 3/16 X ,425

293150293

$0.30

Elastic Flange Nut M12

250001195

$2.46

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

Elastic Flange Nut M12

250001195

$2.46

Flange Screw M12 X 60

250000857

$6.99

Black, Pop Rivet 3/16 X ,425

293150300

$0.69

Torx Truss M8 X 65

250000901

$1.79

Elastic Flange Nut M8

250100025

$1.43
