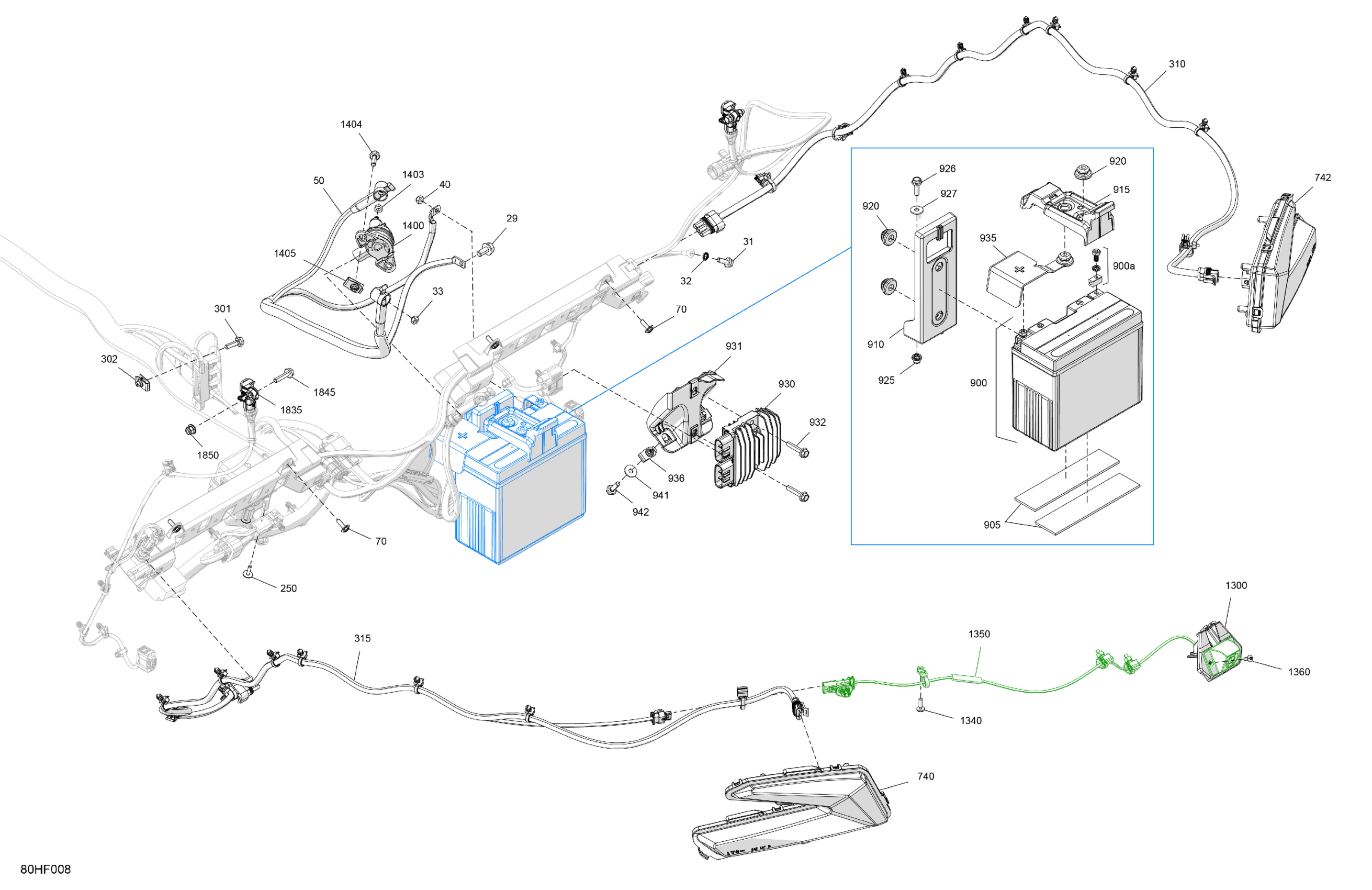

Can-Am Maverick - TURBO RR - XRS SAS - 7TTW - Dusty Navy Satin - 72" Width CALI, 2026 Electric - Rear Section Diagram

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

External Serrated Lock Washer 6 mm

234461608

$1.06

Elastic Stop Nut M6, Brass

232561200

$4.03

Elastic Stop Nut M6, Brass

232561200

$4.03

Starter Wiring Harness

710007440

$64.15

Screw PT Type K-50 X 16

250000959

$2.00

Screw M4 X 16

250000725

$3.30

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

Rear Wiring Harness

710006424

$24.60

Wiring Harness_Rear Lighting Rear L

710010775

$105.19

LH Tail Light

710004743

$120.12

RH Tail Light

710004744

$120.12

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Rubber Pad

293830126

$12.64

Fixation Plate

710004788

$9.48

Battery Support

710009128

$6.72

Stopper Rubber

705014429

$6.09

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Flat Washer 6 mm

234062410

$0.73

Regulator_Voltage

710009975

$207.43

Support_Voltage Regulator

710010829

$3.93

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

Battery Cable Cap

710006471

$2.59

Panel Nut M6 X 1.0

250100198

$1.99

Stainless Steel Flat Washer

234062670

$2.00

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Support_Camera Rear

709403251

$17.13

Torx Screw K50 X 16

250000720

$1.60

Camera

710010964

$287.28

Torx Truss Screw K40 X 12

250000577

$2.00

Starter Relay

278003012

$40.27

Elastic Stop Nut M6, Brass

232561200

$4.03

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

Sensor

710009009

$62.66

Hex. Flange Screw M6 X 25

207662554

$1.43

Hex. Flange Elastic Nut M6

233261494

$1.45
