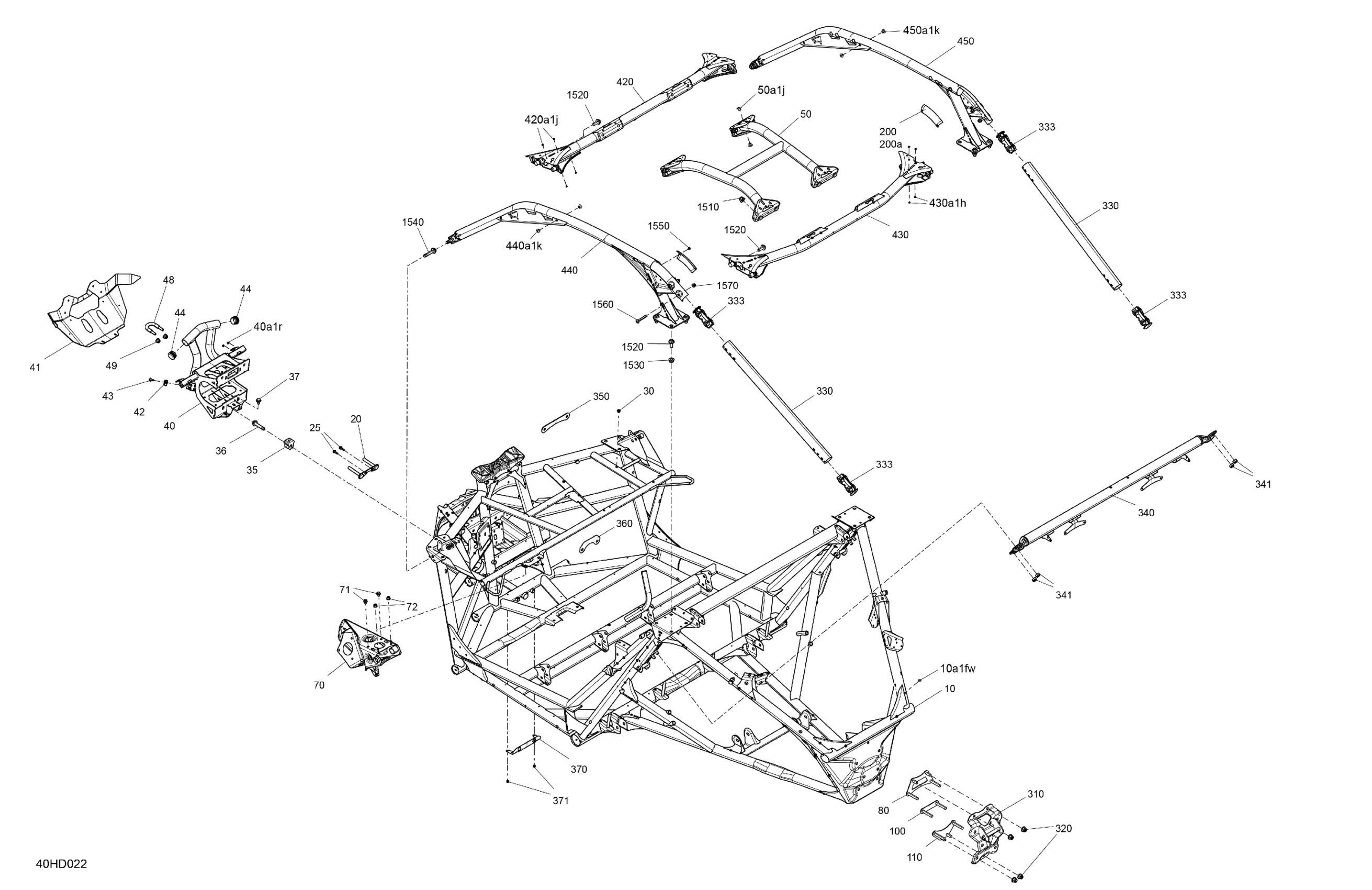

Can-Am North America - Maverick Turbo RR - XRC - 9LRA - Hyper Silver - 72" Width, 2024 06- Frame - System Diagram

#

Description
Price

10

Hyper Silver, Chassis Kit

715009823

Unavailable

10a1fw

Pop Rivet 3/16 X ,425

293150293

Unavailable

20

Front Plate

705211561

Unavailable

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

30

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

35

Bumper Link

705206992

Unavailable

36

Flange Screw M12 X 60

250000857

Unavailable

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

Unavailable

40

Legion Red, Front Bumper Kit

715009850

Unavailable

40a1r

Pop Rivet 3/16 X ,425

293150293

Unavailable

41

Front Master Plate

715006996

Unavailable

42

Panel Nut M6 X 1.0

250100198

Unavailable

43

Torx Screw M6 X 20

250000722

Unavailable

44

Cap

705202455

Unavailable

48

Deep Black, Flange

705212138

Unavailable

49

Hex. Flange Elastic Nut M10

233201436

Unavailable

50

Hyper Silver, Cage Reinforcement | Includes 50 to 50a1j

705210209

Unavailable

50a1j

Pop Rivet 3/16 X ,425

293150293

Unavailable

70

DPS Support

705206924

Unavailable

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

72

Hex. Elastic Flange Nut M8

233281416

Unavailable

80

Rear Upper Plate

705211557

Unavailable

100

Rear Central Plate

705211558

Unavailable

110

Rear Lower Plate

705211556

Unavailable

200

Hyper Silver, Upper Plate Kit | Includes 200 to 200a

705211612

Unavailable

200a

Hyper Silver, Upper Plate Kit

705211613

Unavailable

310

Junction Plate Kit

715008492

Unavailable

320

Elastic Flange Nut M12

250001195

Unavailable

330

Hyper Silver, Rear Pillar

705210223

Unavailable

333

Sleeve

705210648

Unavailable

340

Safety Belt Anchorage

705212141

Unavailable

341

Elastic Stop Nut M12

232521416

Unavailable

350

Connecting Plate

705211552

Unavailable

360

Retaining Plate

705210249

Unavailable

370

Support

705211560

Unavailable

371

Pop Rivet 3/16"

390402200

Unavailable

420

Hyper Silver, Front Cross Member | Includes 420 to 420a1j

705210234

Unavailable

420a1j

Pop Rivet 3/16 X ,425

293150293

Unavailable

430

Hyper Silver, Rear Cross Member | Includes 430 to 430a1h

705210240

Unavailable

430a1h

Pop Rivet 3/16 X ,425

293150293

Unavailable

440

Hyper Silver, LH Front Cage Kit

715008932

Unavailable

440a1k

Pop Rivet 3/16 X ,425

293150293

Unavailable

450

Hyper Silver, RH Front Cage Kit

715008942

Unavailable

450a1k

Pop Rivet 3/16 X ,425

293150293

Unavailable

1510

Elastic Flange Nut M12

250001195

Unavailable

1520

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

Unavailable

1530

Elastic Flange Nut M12

250001195

Unavailable

1540

Flange Screw M12 X 60

250000857

Unavailable

1550

Black, Pop Rivet 3/16 X ,425

293150300

Unavailable

1560

Torx Truss M8 X 65

250000901

Unavailable

1570

Elastic Flange Nut M8

250100025

Unavailable
