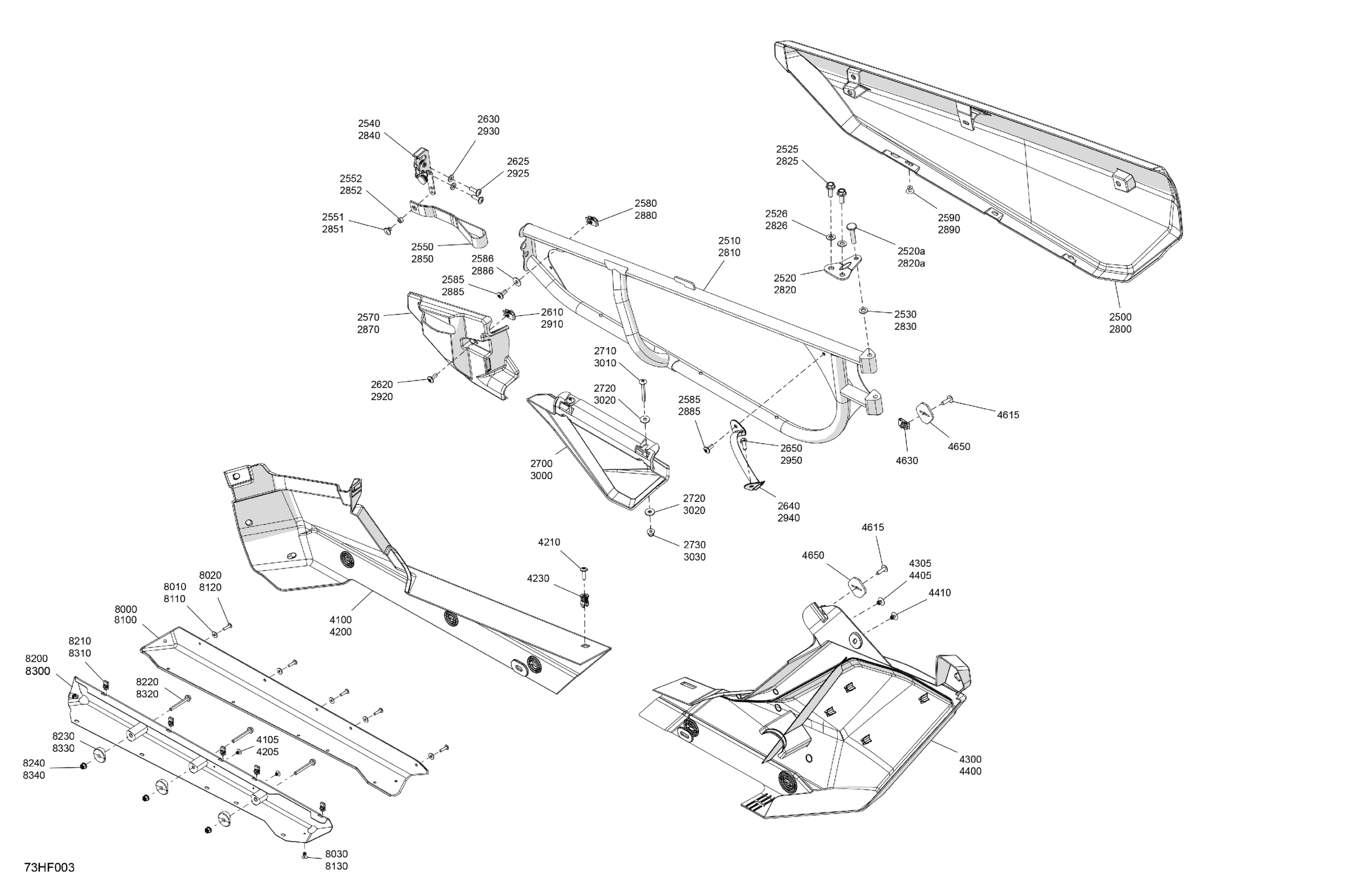

Can-Am Maverick - TURBO RR - XRC - 7KTM - Loft Green Satin - 64" Width, 2026 Body - Doors Diagram

#

Description
Price

2500

Loft Green, LH Front Door Panel

705019621

$191.76

2510

Deep Black, LH Front Door

705018468

$141.01

2520

Door Support

705011187

$10.55

2520a

Door Support

705011187

$10.55

2525

Hex Screw Washer Head M8 X 20

207582054

$3.00

2526

Flat Washer M8

234081430

$2.00

2530

Flat Washer 8 mm, Nylon

234081100

$1.15

2540

LH Latch

705013095

$53.70

2550

Belt

293850135

$13.45

2551

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

2552

Bushing | DS 650 X

293900104

$5.10

2570

LH Latch Cover

705013535

$35.79

2580

Panel Nut M6 X 1.0

250100198

$1.99

2585

Torx Truss Screw M6 X 16

250000721

$1.60

2586

Stainless Steel Flat Washer

234062670

$2.00

2590

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

2610

Panel Nut M6 X 1.0

250100198

$1.99

2620

Torx Truss Screw M6 X 16

250000721

$1.60

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$3.01

2630

Flat Washer

224061121

$0.51

2640

Retaining Strap

705801727

$14.61

2650

Hex. Forming Screw M6 X 10

210261050

$1.63

2700

LH Lower Door Panel

705010732

$52.21

2710

Torx Truss Screw M6 X 50

250000749

$3.01

2720

Stainless Steel Flat Washer

234062670

$2.00

2730

Hex. Flange Elastic Nut M6

233261466

$1.91

2800

Loft Green, LH Front Door Panel

705019622

$247.73

2810

Deep Black, RH Front Door

705018470

$141.01

2820

Door Support

705011187

$10.55

2820a

Door Support

705011187

$10.55

2825

Hex Screw Washer Head M8 X 20

207582054

$3.00

2826

Flat Washer M8

234081430

$2.00

2830

Flat Washer 8 mm, Nylon

234081100

$1.15

2840

RH Latch

705013096

$53.70

2850

Belt

293850135

$13.45

2851

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

2852

Bushing | DS 650 X

293900104

$5.10

2870

RH Latch Cover

705013536

$35.79

2880

Panel Nut M6 X 1.0

250100198

$1.99

2885

Torx Truss Screw M6 X 16

250000721

$1.60

2886

Stainless Steel Flat Washer

234062670

$2.00

2890

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

2910

Panel Nut M6 X 1.0

250100198

$1.99

2920

Torx Truss Screw M6 X 16

250000721

$1.60

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$3.01

2930

Flat Washer

224061121

$0.51

2940

Retaining Strap

705801727

$14.61

2950

Hex. Forming Screw M6 X 10

210261050

$1.63

3000

RH Lower Door Panel

705010733

$55.19

3010

Torx Truss Screw M6 X 50

250000749

$3.01

3020

Stainless Steel Flat Washer

234062670

$2.00

3030

Hex. Flange Elastic Nut M6

233261466

$1.91

4100

LH Central Lateral Panel

705012768

$65.64

4105

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

4200

Deep Black, RH Lower Body Panel

705017549

$59.67

4205

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

4210

Torx Screw M6 X 20

250000722

$1.54

4230

Insert

705016606

$2.06

4300

LH Rear Lateral Panel

705012770

$103.70

4305

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

4400

RH Rear Lateral Panel

705012771

$103.70

4405

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

4410

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

4615

Torx Screw M6 X 20

250000722

$1.54

4630

Panel Nut M6 X 1.0

250100198

$1.99

4650

Support Plate

705003841

$0.91

8000

Black, LH Lateral Panel

705013015

$101.46

8010

Flat washer M6

250200164

$0.96

8020

Torx Truss Screw M6 X 25

250000807

$2.00

8030

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

8100

Black, RH Lateral Panel

705013016

$101.46

8110

Flat washer M6

250200164

$0.96

8120

Torx Truss Screw M6 X 25

250000807

$2.00

8130

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

8200

LH Frame

705018480

$202.96

8210

Panel Nut M6 X 1.0

250100198

$1.99

8220

Hex. Flange Screw M8 X 70

207687044

$7.01

8230

Saddle Washer

705205462

$5.03

8240

Elastic Flange Nut M8

233281464

$0.96

8300

RH Frame

705018478

$202.96

8310

Panel Nut M6 X 1.0

250100198

$1.99

8320

Hex. Flange Screw M8 X 70

207687044

$7.01

8330

Saddle Washer

705205462

$5.03

8340

Elastic Flange Nut M8

233281464

$0.96
