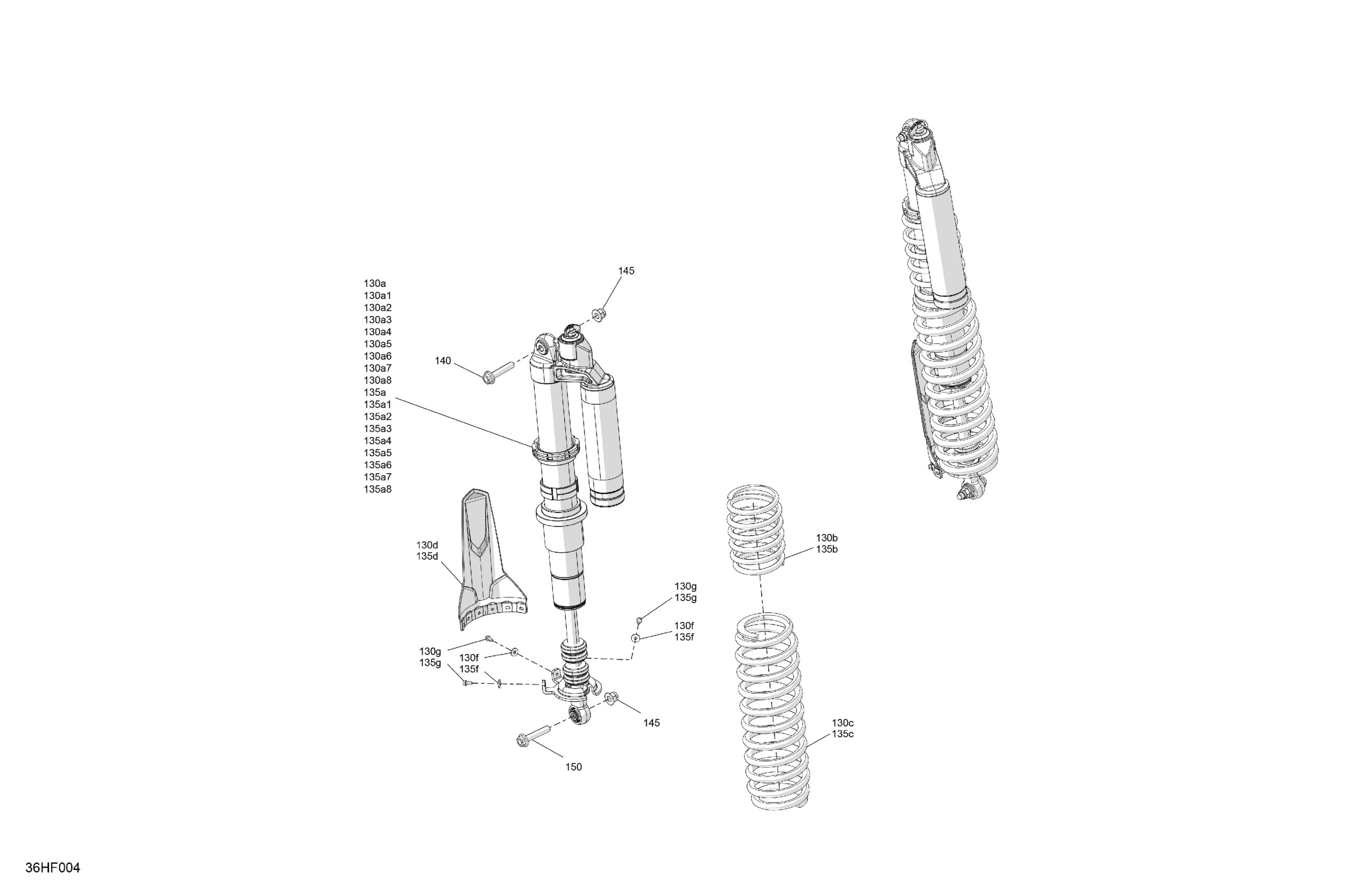

Can-Am Maverick - TURBO RR - XRC - 7KTM - Loft Green Satin - 64" Width, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Shock Absorber | Includes 130a to 130a5

706004565

$933.05

130a1

Spherical Bearing

715900337

$80.74

130a2

Ball Joint

706004078

$45.12

130a3

O-Ring Bushing

715900338

$10.98

130a4

Circlip

715900480

$11.06

130a5

Reducer

715900481

$27.66

130a6

Crossover Ring

715900594

$14.98

130a7

Spring Retainer

715900596

$36.89

130a8

Spring Coupler Long

715900591

$32.28

130b

Deep Black, Compression Spring

706005116

$101.51

130c

Deep Black, Compression Spring

706005144

$161.51

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

135a

RH Rear Shock Absorber | Includes 135a to 135a5

706004566

$923.05

135a1

Spherical Bearing

715900337

$80.74

135a2

Ball Joint

706004078

$45.12

135a3

O-Ring Bushing

715900338

$10.98

135a4

Circlip

715900480

$11.06

135a5

Reducer

715900481

$27.66

135a6

Crossover Ring

715900594

$14.98

135a7

Spring Retainer

715900596

$36.89

135a8

Spring Coupler Long

715900591

$32.28

135b

Deep Black, Compression Spring

706005116

$101.51

135c

Deep Black, Compression Spring

706005144

$161.51

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Flange Screw M12 X 60

250000857

$6.08
