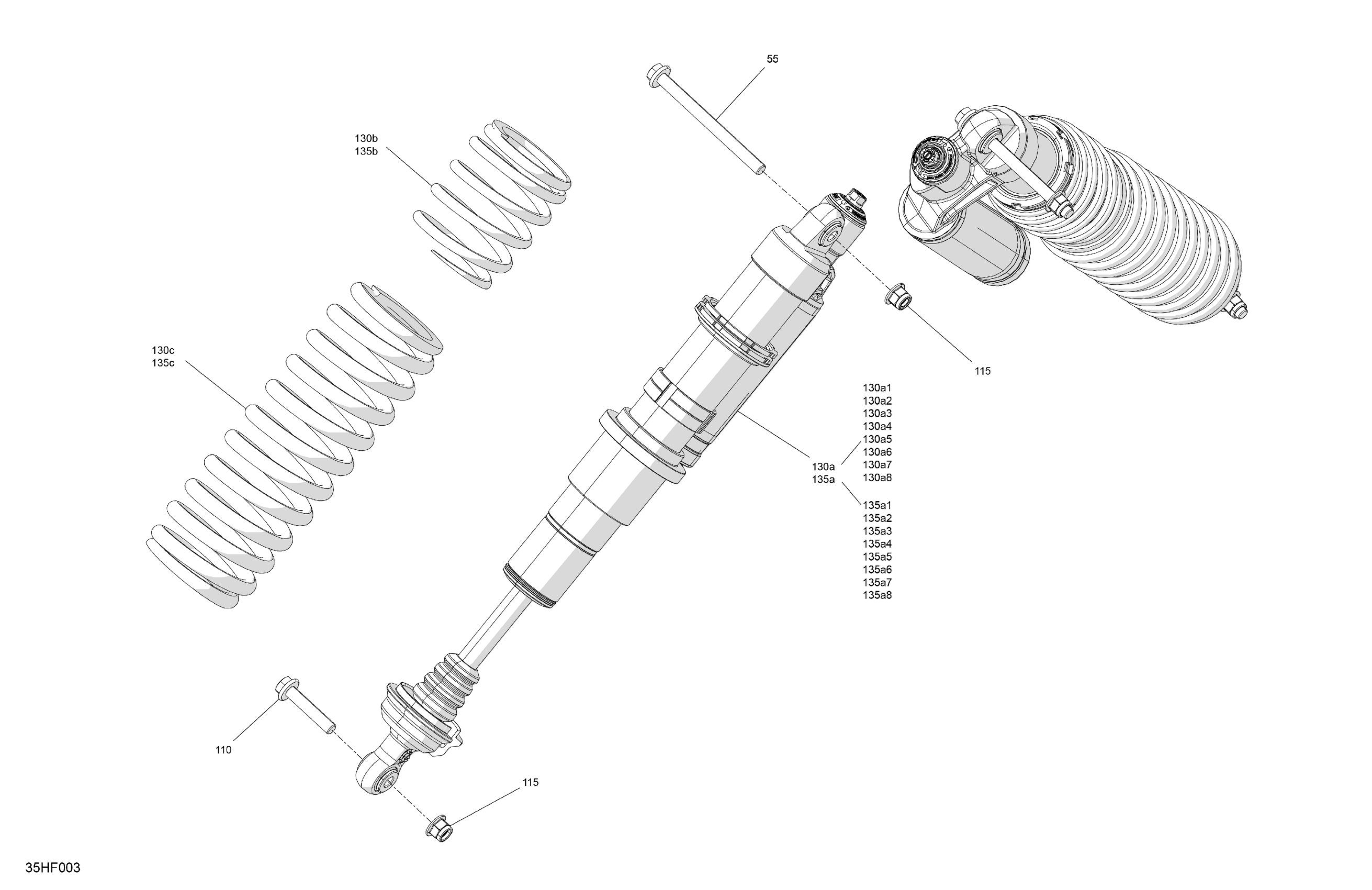

Can-Am Maverick - TURBO RR - XRC - 7KTM - Loft Green Satin - 64" Width, 2026 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.67

110

Flange Screw M12 X 60

250000857

$7.41

115

Elastic Flange Nut M12

250001195

$2.64

130a

LH Front Shock Absorber | Includes 130a to 130a5

706204763

$889.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130a6

Crossover Ring

715900594

$14.49

130a7

Spring Retainer

715900598

$36.99

130a8

Spring Coupler Long

715900591

$31.99

130b

Deep Black, Compression Spring

706205328

$84.99

130c

Deep Black, Compression Spring

706205347

$126.99

135a

RH Front Shock Absorber | Includes 135a to 135a5

706204764

$889.99

135a1

Spherical Bearing

715900337

$84.99

135a2

Ball Joint

706004078

$47.49

135a3

O-Ring Bushing

715900338

$12.63

135a4

Circlip

715900480

$11.49

135a5

Reducer

715900481

$27.99

135a6

Crossover Ring

715900594

$14.49

135a7

Spring Retainer

715900598

$36.99

135a8

Spring Coupler Long

715900591

$31.99

135b

Deep Black, Compression Spring

706205328

$84.99

135c

Deep Black, Compression Spring

706205347

$126.99
