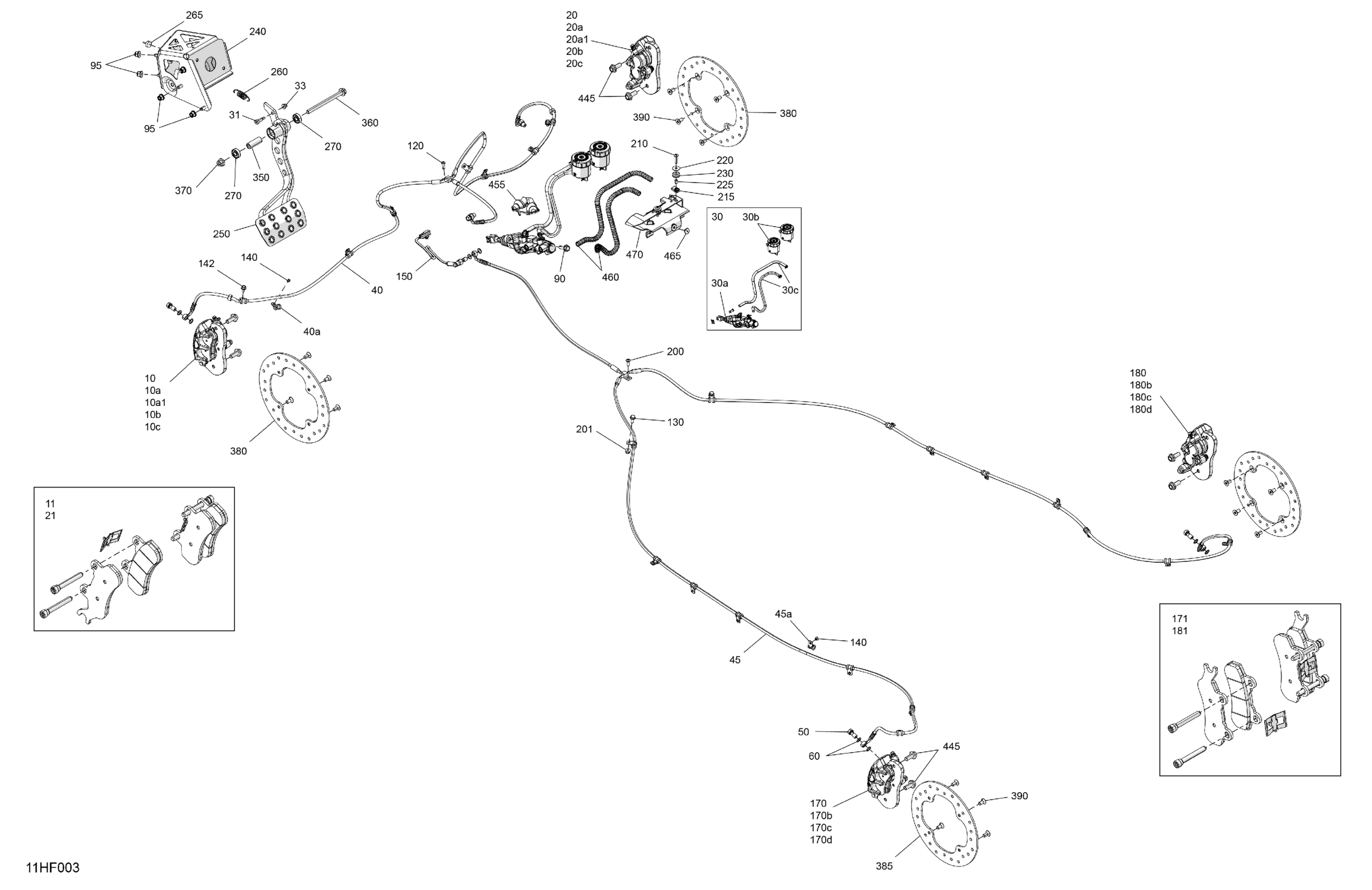

Can-Am Maverick - TURBO RR - XRC - 7KTM - Loft Green Satin - 64" Width, 2026 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10a

LH Brake Pads

715900379

$111.51

10a1

Pin Kit | Packages STD & PRO

715900384

$10.98

10b

Bleeding Screw

705601017

$6.45

10c

Cap Spring Kit

715900385

$17.66

11

Front Brake Pad Set

703501198

$110.67

20

RH Front Brake Caliper | Includes 20 to 20c

705602181

$230.74

20a

RH Brake Pads

715900380

$110.67

20a1

Pin Kit | Packages STD & PRO

715900384

$10.98

20b

Bleeding Screw

705601017

$6.45

20c

Cap Spring Kit

715900385

$17.66

21

Front Brake Pad Set

703501198

$110.67

30

Master Cylinder Ass'y | Includes 30 to 30c

705602307

$272.28

30a

Master Cylinder

705602306

$276.89

30b

Oil Tank

705601020

$36.89

30c

Housing Oil Hose

705601866

$15.35

31

Socket Head Screw M8 X 16

250000669

$2.61

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Front Flexible Hose | Includes 40 to 40a

705601492

$147.66

40a

Clamp

293650256

$4.36

45

Rear Flexible Hose | Includes 45 to 45a

705601493

$203.05

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Copper Washer

705601628

$4.34

90

Hex. Flange Screw M8 X 25

207682544

$0.90

95

Hex. Elastic Flange Nut M8

233281416

$1.25

120

Torx Screw M6 X 16 | Not shown

235661644

$4.39

130

Hex. Flange Screw M6 X 16

207661644

$0.61

140

Pop Rivet 3/16 X ,425

293150293

$0.26

142

Hex. Flange Screw M6 X 10

210261040

$1.25

150

Brake Switch

705601250

$59.97

170

LH Rear Brake Caliper | Includes 170 to 170d

705602186

$294.49

170b

Pin Kit | Packages STD & PRO

715900384

$10.98

170c

Bleeding Screw

705601017

$6.45

170d

Cap Spring Kit

715900385

$17.66

171

Rear Brake Pad Set

703501199

$110.67

180

RH Rear Brake Caliper | Includes 180 to 180d

705602187

$294.49

180b

Pin Kit | Packages STD & PRO

715900384

$10.98

180c

Bleeding Screw

705601017

$6.45

180d

Cap Spring Kit

715900385

$17.66

181

Rear Brake Pad Set

703501199

$110.67

200

Torx Screw K50 X 16

250000720

$1.39

201

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

210

Torx Screw M5 X 25

250000762

$1.74

215

Panel Nut M5 X 0.8

250000958

$3.48

220

Flat Washer

250200040

$1.82

225

Bushing

293900112

$10.14

230

Grommet

414036300

$2.22

240

Brake Support Plate Ass'y

705207621

$50.74

250

Brake Pedal

705601676

$64.58

260

Brake Pedal Spring

705600792

$9.22

265

Seat Stopper

708003866

$3.61

270

Bearing

705600458

$7.03

350

Bushing | RT

705601275

Unavailable

360

Hex. Flange Screw, M10 X 130

230603046

$6.08

370

Hex. Flange Elastic Nut M10

233201436

$1.74

380

Front Disc Brake

705601841

$50.74

385

Rear Disc Brake

705601840

$59.97

390

Torx Screw M8 X 25, Scotch Grip

250000143

$1.77

445

Hex. Flange Screw M10 X 25

207502546

$1.74

455

Hose Support

705601750

$4.60

460

Tubing 10 MM 1000MM Long

219704407

$2.20

465

Oil Tank Support

705601815

$4.95

470

Black, Pop Rivet 3/16 X ,425

293150291

$0.54
