06- Frame - System

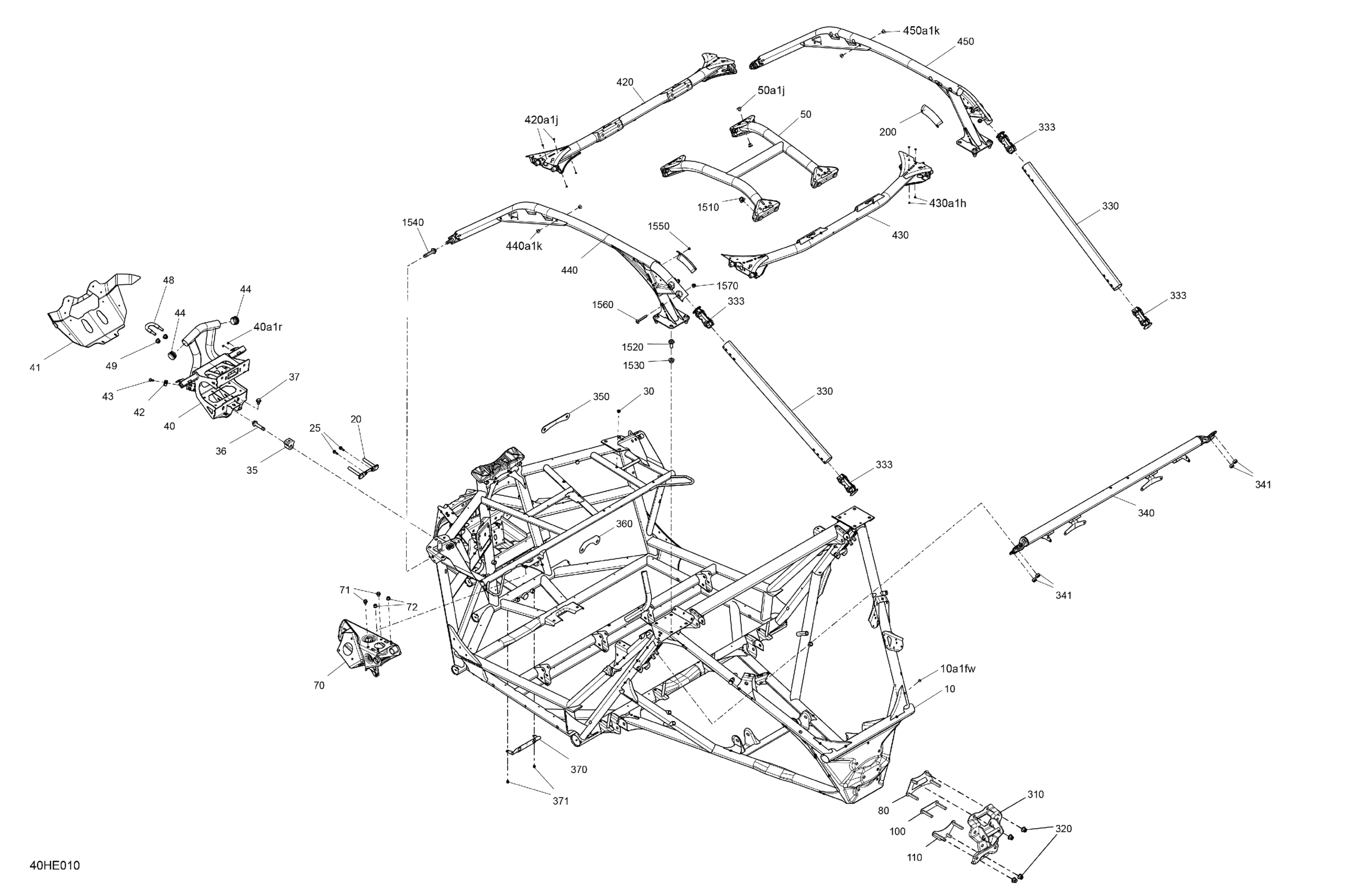

Can-Am North America - Maverick - TURBO RR - XRC - 7KSB - Hybrid White Pearl - 64" Width, 2025 06- Frame - System Diagram
#
10
Black, Frame Kit
715009098
Unavailable
10a1fw
Pop Rivet 3/16 X ,425
293150293
Unavailable
20
Front Plate
705211898
Unavailable
25
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
30
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
35
Bumper Link
705206992
Unavailable
36
Flange Screw M12 X 60
250000857
Unavailable
37
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
40
Legion Red, Front Bumper Kit
715009850
Unavailable
40a1r
Pop Rivet 3/16 X ,425
293150293
Unavailable
41
Front Master Plate
715006996
Unavailable
42
Panel Nut M6 X 1.0
250100198
Unavailable
43
Torx Screw M6 X 20
250000722
Unavailable
44
Cap
705202455
Unavailable
48
Deep Black, Flange
705212138
Unavailable
49
Hex. Flange Elastic Nut M10
233201436
Unavailable
50
Deep Black, Reinforcement Cage | Includes 50 to 50a1j
705210064
Unavailable
50a1j
Pop Rivet 3/16 X ,425
293150293
Unavailable
70
DPS Support
705206924
Unavailable
71
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
Unavailable
72
Hex. Elastic Flange Nut M8
233281416
Unavailable
80
Rear Upper Plate
705211557
Unavailable
100
Rear Central Plate
705211558
Unavailable
110
Rear Lower Plate
705211556
Unavailable
200
Deep Black, Upper Plate Kit
705211599
Unavailable
310
Junction Plate Kit
715008492
Unavailable
320
Elastic Flange Nut M12
250001195
Unavailable
330
Deep Black, Rear Pillar
705210066
Unavailable
333
Sleeve
705210648
Unavailable
340
Safety Belt Anchorage
705212141
Unavailable
341
Elastic Stop Nut M12
232521416
Unavailable
350
Connecting Plate
705211552
Unavailable
360
Retaining Plate
705210249
Unavailable
370
Support
705211560
Unavailable
371
Pop Rivet 3/16 X ,425
293150293
Unavailable
420
Deep Black, Front Cross Member | Includes 420 to 420a1j
705210068
Unavailable
420a1j
Pop Rivet 3/16 X ,425
293150293
Unavailable
430
Deep Black, Rear Cross Member | Includes 430 to 430a1h
705210070
Unavailable
430a1h
Pop Rivet 3/16 X ,425
293150293
Unavailable
440
Black, LH Cage Kit
715008442
Unavailable
440a1k
Pop Rivet 3/16 X ,425
293150293
Unavailable
450
Black, RH Cage Kit
715008456
Unavailable
450a1k
Pop Rivet 3/16 X ,425
293150293
Unavailable
1510
Elastic Flange Nut M12
250001195
Unavailable
1520
Hex. Flange Screw M12 X 30, Scotch Grip
207523056
Unavailable
1530
Elastic Flange Nut M12
250001195
Unavailable
1540
Flange Screw M12 X 60
250000857
Unavailable
1550
Black, Pop Rivet 3/16 X ,425
293150300
Unavailable
1560
Torx Truss M8 X 65
250000901
Unavailable
1570
Elastic Flange Nut M8
250100025
Unavailable
