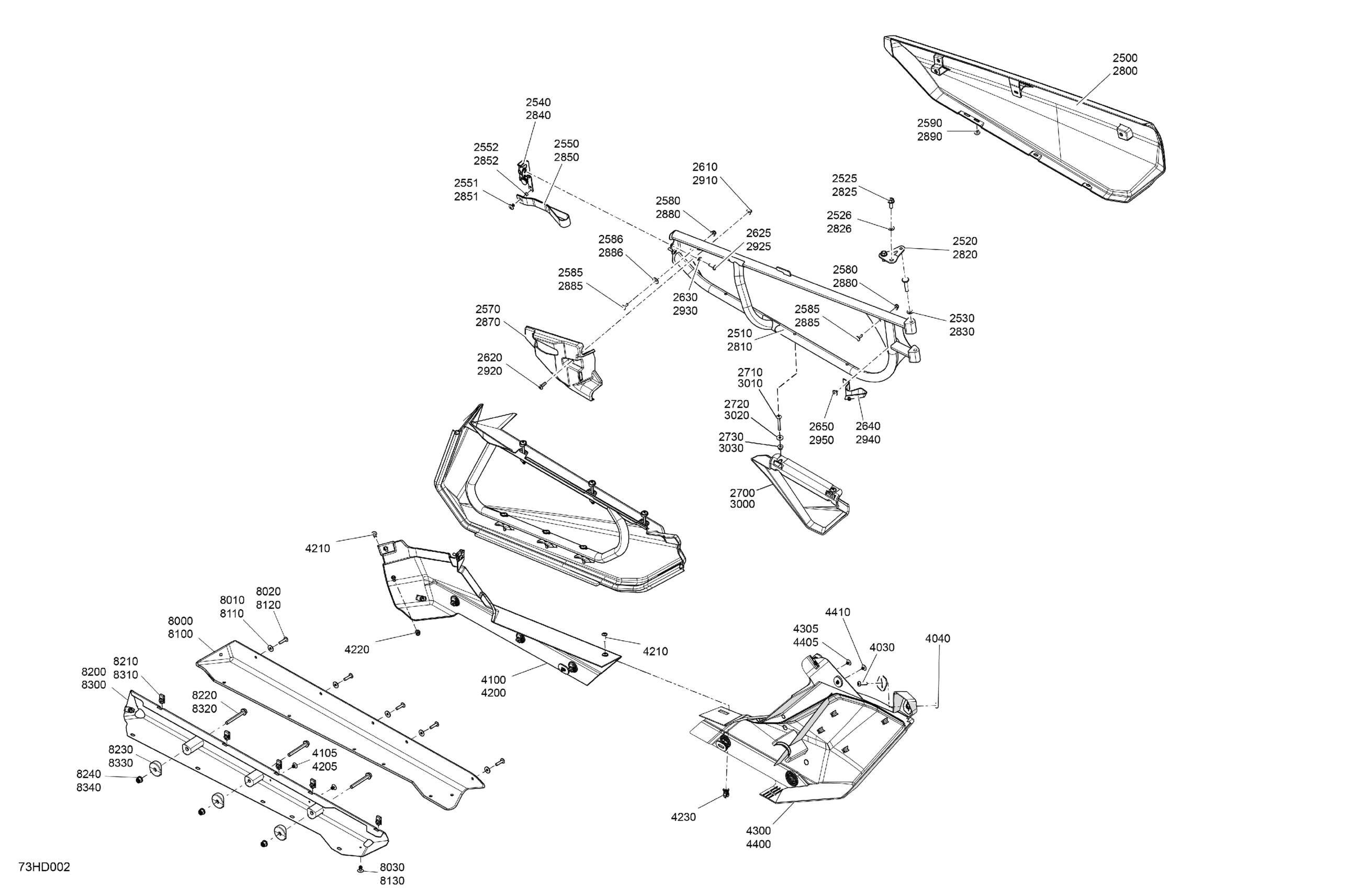

Can-Am Maverick Turbo RR - XRC - 7KRB - Hybrid White Pearl - 64" Width, 2024 Body - Doors Diagram

#

Description
Price

2500

Hydrib White Pearl, LH Front Door Panel

705018254

$197.66

2510

Deep Black, LH Front Door

705018468

$145.35

2520

Door Support

705011187

$10.98

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$55.35

2550

Belt

293850135

$14.75

2551

Pop Rivet 3/16"

293150103

$0.54

2552

Bushing | DS 650 X

293900104

$5.26

2570

LH Latch Cover

705013535

$36.89

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Pop Rivet 3/16"

293150103

$0.54

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Truss Screw M6 X 16

250000721

$1.39

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2630

Flat Washer

224061121

$0.44

2640

Door Belt

293850129

$15.35

2650

Pop Rivet 3/16"

293150103

$0.54

2700

LH Lower Door Panel

705010732

$53.82

2710

Torx Truss Screw M6 X 50

250000749

$3.11

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Hex. Flange Elastic Nut M6

233261466

$1.66

2800

Hydrib White Pearl, RH Front Door Panel

705018255

$197.66

2810

Deep Black, RH Front Door

705018470

$145.35

2820

Door Support

705011187

$10.98

2825

Hex Screw Washer Head M8 X 20

207582054

$2.61

2826

Flat Washer M8

234081430

$1.74

2830

Flat Washer 8 mm, Nylon

234081100

$1.00

2840

RH Latch

705013096

$55.35

2850

Belt

293850135

$14.75

2851

Pop Rivet 3/16"

293150103

$0.54

2852

Bushing | DS 650 X

293900104

$5.26

2870

RH Latch Cover

705013536

$36.89

2880

Panel Nut M6 X 1.0

250100198

$1.73

2885

Torx Truss Screw M6 X 16

250000721

$1.39

2886

Stainless Steel Flat Washer

234062670

$1.74

2890

Pop Rivet 3/16"

293150103

$0.54

2910

Panel Nut M6 X 1.0

250100198

$1.73

2920

Torx Truss Screw M6 X 16

250000721

$1.39

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2930

Flat Washer

224061121

$0.44

2940

Door Belt

293850129

$15.35

2950

Pop Rivet 3/16"

293150103

$0.54

3000

RH Lower Door Panel

705010733

$59.97

3010

Torx Truss Screw M6 X 50

250000749

$3.11

3020

Stainless Steel Flat Washer

234062670

$1.74

3030

Hex. Flange Elastic Nut M6

233261466

$1.66

4030

Torx Truss Screw M6 X 25

250000807

$1.74

4040

Panel Nut M6 X 1.0

250100198

$1.73

4100

Deep Black, LH Interior Body Panel

705017548

$69.20

4105

Pop Rivet 3/16"

293150103

$0.54

4200

Deep Black, RH Lower Body Panel

705017549

$64.58

4205

Pop Rivet 3/16"

293150103

$0.54

4210

Torx Screw M6 X 20

250000722

$1.34

4220

Panel Nut M6 X 1.0

250100198

$1.73

4230

Insert

705016606

$2.31

4300

Legion Red, LH Rear Panel

705018237

$110.74

4305

Pop Rivet 3/16"

293150103

$0.54

4400

Legion Red, RH Rear Panel

705018238

$110.74

4405

Pop Rivet 3/16"

293150103

$0.54

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

8000

Black, LH Lateral Panel

705013015

$106.12

8010

Flat washer M6

250200164

$0.83

8020

Torx Truss Screw M6 X 25

250000807

$1.74

8030

Pop Rivet 3/16”

293150108

$1.23

8100

Black, RH Lateral Panel

705013016

$106.12

8110

Flat washer M6

250200164

$0.83

8120

Torx Truss Screw M6 X 25

250000807

$1.74

8130

Pop Rivet 3/16”

293150108

$1.23

8200

LH Frame

705018480

$209.20

8210

Panel Nut M6 X 1.0

250100198

$1.73

8220

Hex. Flange Screw M8 X 70

207687044

$6.11

8230

Saddle Washer

705205462

$5.52

8240

Elastic Flange Nut M8

233281464

$0.83

8300

RH Frame

705018478

$209.20

8310

Panel Nut M6 X 1.0

250100198

$1.73

8320

Hex. Flange Screw M8 X 70

207687044

$6.11

8330

Saddle Washer

705205462

$5.52

8340

Elastic Flange Nut M8

233281464

$0.83
