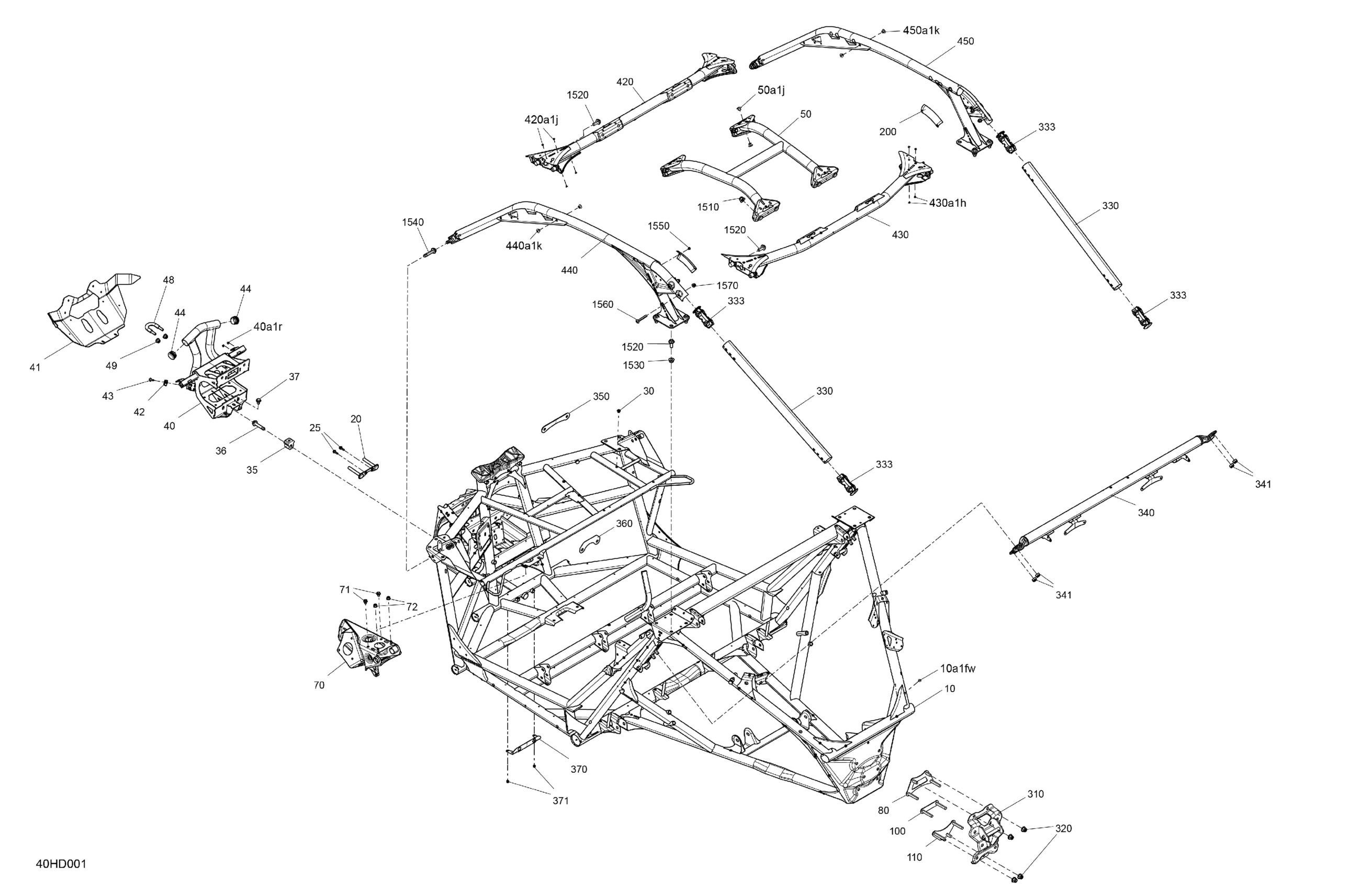

Can-Am Maverick Turbo RR - XRC - 6VRA - Hyper Silver - 64" Width, 2024 Frame - System Diagram

#

Description
Price

10

Black, Frame Kit

715009098

$3,459.99

10a1fw

Pop Rivet 3/16 X ,425

293150293

$0.30

20

Front Plate

705211561

$17.88

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

30

Insert Half Hex Body M6 x 1.0

250100199

$2.91

35

Bumper Link

705206992

$14.90

36

Flange Screw M12 X 60

250000857

$6.99

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

40

Legion Red, Front Bumper Kit

715009850

$342.51

40a1r

Pop Rivet 3/16 X ,425

293150293

$0.30

41

Front Master Plate

715006996

$188.78

42

Panel Nut M6 X 1.0

250100198

$1.99

43

Torx Screw M6 X 20

250000722

$1.54

44

Cap

705202455

$4.27

48

Deep Black, Flange

705212138

$35.79

49

Hex. Flange Elastic Nut M10

233201436

$2.00

50

Deep Black, Reinforcement Cage | Includes 50 to 50a1j

705210064

$91.99

50a1j

Pop Rivet 3/16 X ,425

293150293

$0.30

70

DPS Support

705206924

$64.15

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

72

Hex. Elastic Flange Nut M8

233281416

$1.43

80

Rear Upper Plate

705211557

$17.13

100

Rear Central Plate

705211558

$17.13

110

Rear Lower Plate

705211556

$16.39

200

Deep Black, Upper Plate Kit

705211599

$23.10

310

Junction Plate Kit

715008492

$40.27

320

Elastic Flange Nut M12

250001195

$2.46

330

Deep Black, Rear Pillar

705210066

$24.99

333

Sleeve

705210648

$8.42

340

Safety Belt Anchorage

705212141

$112.66

341

Elastic Stop Nut M12

232521416

$1.61

350

Connecting Plate

705211552

$4.81

360

Retaining Plate

705210249

$4.72

370

Support

705211560

$10.67

371

Pop Rivet 3/16"

390402200

$0.30

420

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$194.74

420a1j

Pop Rivet 3/16 X ,425

293150293

$0.30

430

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

430a1h

Pop Rivet 3/16 X ,425

293150293

$0.30

440

Black, LH Cage Kit

715008442

$399.99

440a1k

Pop Rivet 3/16 X ,425

293150293

$0.30

450

Black, RH Cage Kit

715008456

$399.99

450a1k

Pop Rivet 3/16 X ,425

293150293

$0.30

1510

Elastic Flange Nut M12

250001195

$2.46

1520

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

1530

Elastic Flange Nut M12

250001195

$2.46

1540

Flange Screw M12 X 60

250000857

$6.99

1550

Black, Pop Rivet 3/16 X ,425

293150300

$0.69

1560

Torx Truss M8 X 65

250000901

$1.79

1570

Elastic Flange Nut M8

250100025

$1.43
