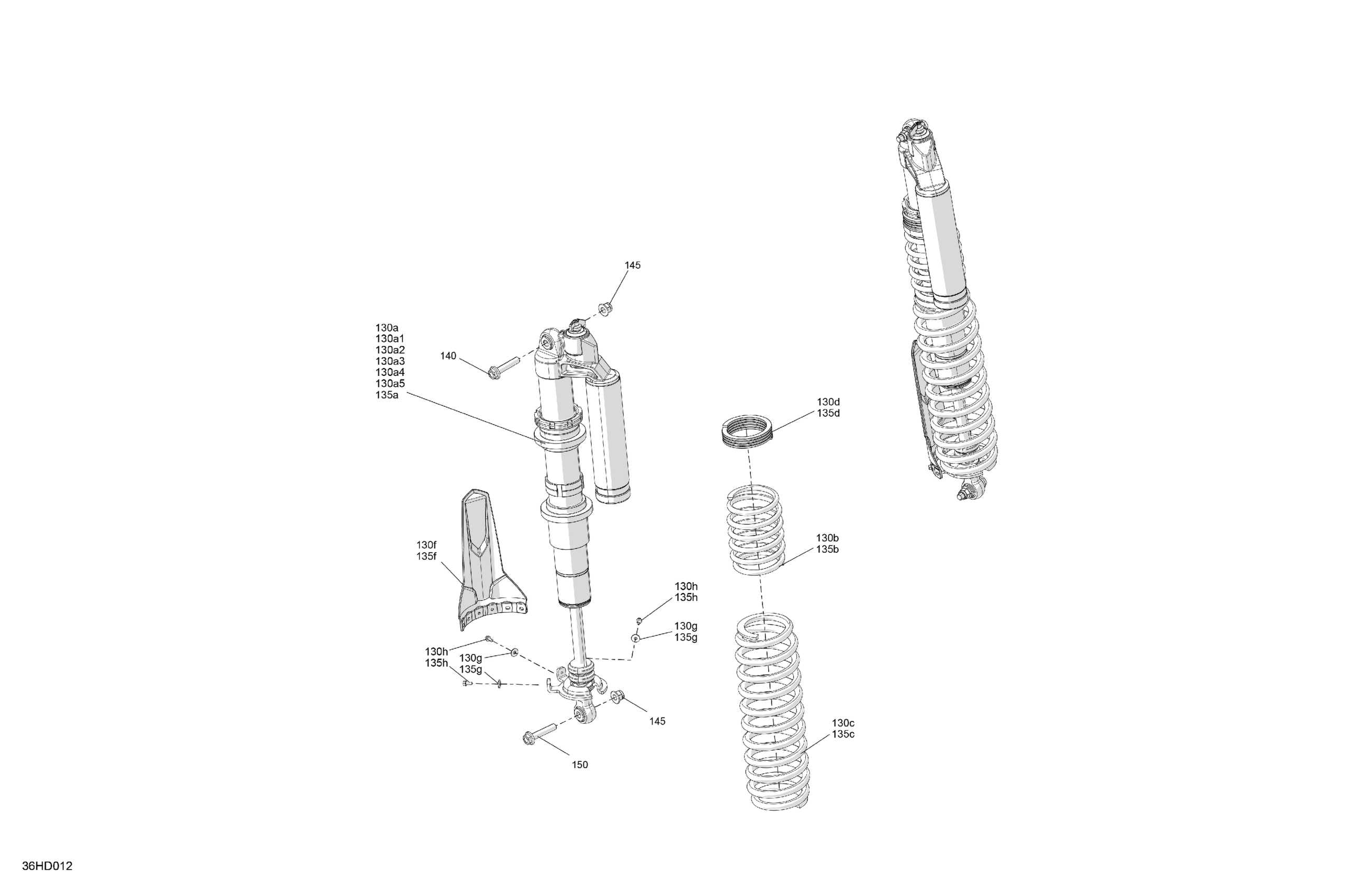

Can-Am Maverick Turbo RR - XRC - 6VRA - Hyper Silver - 64" Width, 2024 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a5

706004808

$905.19

130a1

Spherical Bearing

715900337

$79.07

130a2

Ball Joint

706004078

$44.00

130a3

O-Ring Bushing

715900338

$10.55

130a4

Circlip

715900480

$10.24

130a5

Reducer

715900481

$24.60

130b

Legion Red, Compression Spring

548875078

$115.64

130c

Legion Red, Compression Spring

706005560

$139.52

130d

Legion Red, Compression Spring

706005562

$64.90

130f

Protector

706202215

$8.66

130g

Washer M5

250200025

$0.70

130h

Hex Flange Screw M5 X 11

210251150

$2.00

135a

RH Rear Adjustable Shock Absorber

706004809

$895.49

135b

Legion Red, Compression Spring

548875078

$115.64

135c

Legion Red, Compression Spring

706005560

$139.52

135d

Legion Red, Compression Spring

706005562

$64.90

135f

Protector

706202215

$8.66

135g

Washer M5

250200025

$0.70

135h

Hex Flange Screw M5 X 11

210251150

$2.00

140

Flange Screw M12 X 60

250000857

$6.99

145

Elastic Flange Nut M12

250001195

$2.46

150

Flange Screw M12 X 60

250000857

$6.99
