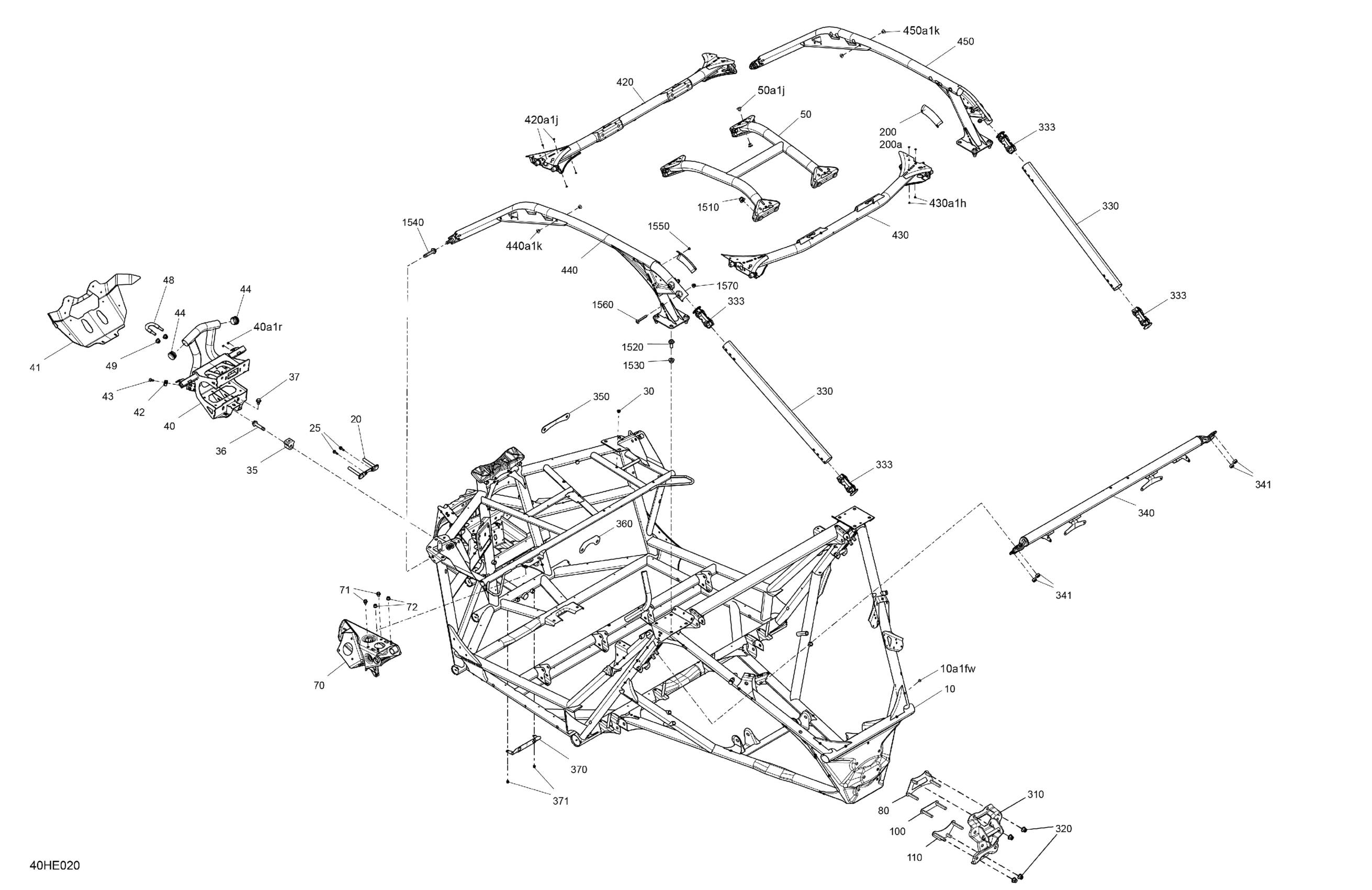

Can-Am Maverick - TURBO RR - XMR - 9LSA - Hyper Silver - 72" Width, 2025 Frame - System Diagram

#

Description
Price

10

Hyper Silver, Chassis Kit

715009823

$2,969.99

10a1fw

Pop Rivet 3/16 X ,425

293150293

$0.35

20

Front Plate

705211898

$21.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

35

Bumper Link

705206992

$18.49

36

Flange Screw M12 X 60

250000857

$7.41

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

40

Legion Red, Front Bumper Kit

715009850

$370.99

40a1r

Pop Rivet 3/16 X ,425

293150293

$0.35

41

Front Master Plate

715006996

$206.49

42

Panel Nut M6 X 1.0

250100198

$2.11

43

Torx Screw M6 X 20

250000722

$1.68

44

Cap

705202455

$5.69

48

Deep Black, Flange

705212138

$39.99

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

Hyper Silver, Cage Reinforcement | Includes 50 to 50a1j

705210209

$159.99

50a1j

Pop Rivet 3/16 X ,425

293150293

$0.35

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705211557

$20.99

100

Rear Central Plate

705211558

$20.99

110

Rear Lower Plate

705211556

$18.49

200

Hyper Silver, Upper Plate Kit | Includes 200 to 200a

705211612

$38.99

200a

Hyper Silver, Upper Plate Kit

705211613

Unavailable

310

Junction Plate Kit

715008492

$44.99

320

Elastic Flange Nut M12

250001195

$2.64

330

Hyper Silver, Rear Pillar

705210223

$24.99

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705212141

$124.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

370

Support

705211560

$14.49

371

Pop Rivet 3/16 X ,425

293150293

$0.35

420

Hyper Silver, Front Cross Member | Includes 420 to 420a1j

705210234

$204.99

420a1j

Pop Rivet 3/16 X ,425

293150293

$0.35

430

Hyper Silver, Rear Cross Member | Includes 430 to 430a1h

705210240

$204.99

430a1h

Pop Rivet 3/16 X ,425

293150293

$0.35

440

Hyper Silver, LH Front Cage Kit

715008932

$399.99

440a1k

Pop Rivet 3/16 X ,425

293150293

$0.35

450

Hyper Silver, RH Front Cage Kit

715008942

$399.99

450a1k

Pop Rivet 3/16 X ,425

293150293

$0.35

1510

Elastic Flange Nut M12

250001195

$2.64

1520

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

1530

Elastic Flange Nut M12

250001195

$2.64

1540

Flange Screw M12 X 60

250000857

$7.41

1550

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

1560

Torx Truss M8 X 65

250000901

$1.90

1570

Elastic Flange Nut M8

250100025

$1.48
