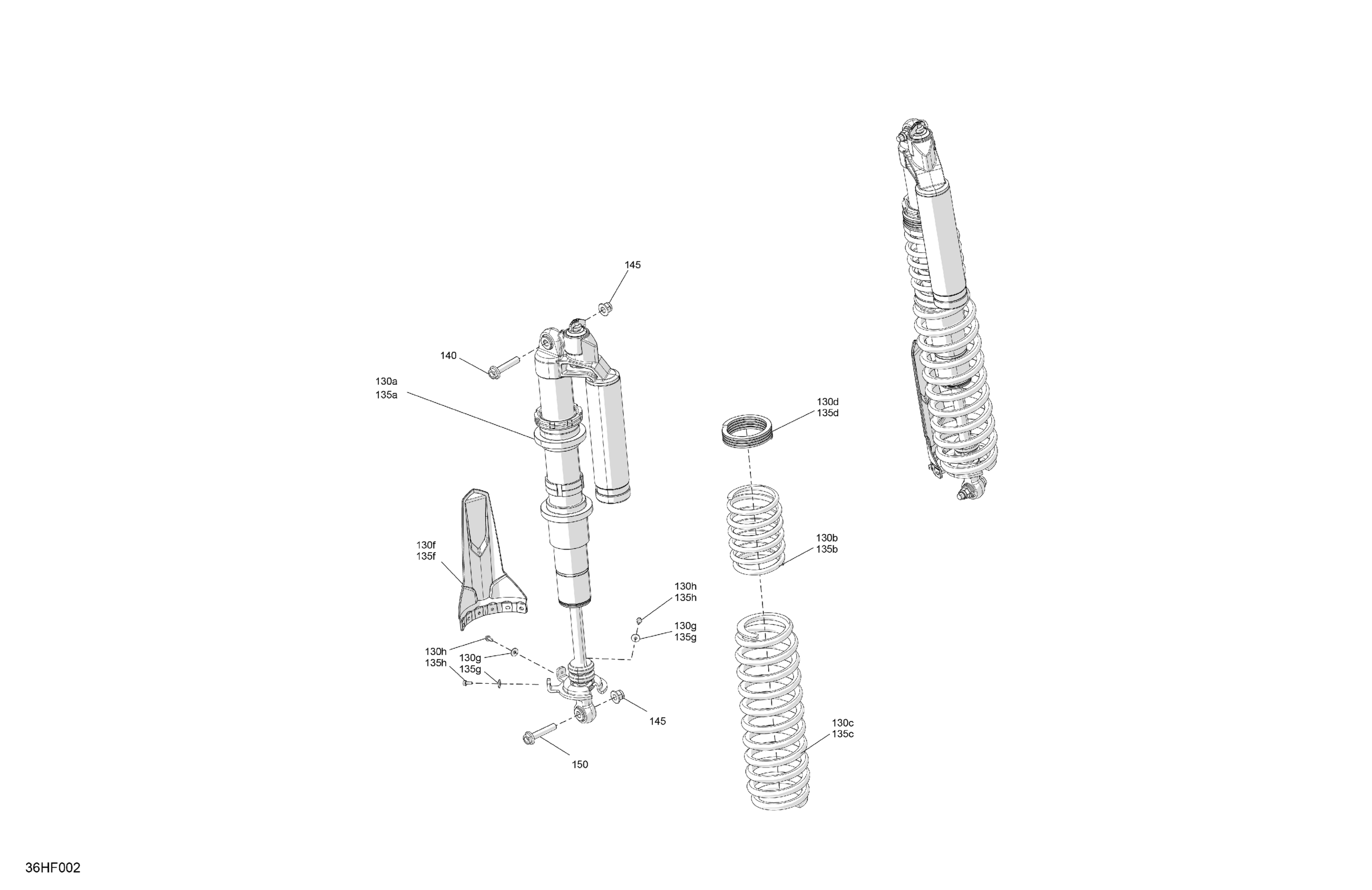

Can-Am Maverick - TURBO RR - XMR - 6VTB - Loft Green Satin - 64" Width, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a5

706004808

$905.19

130b

Liquid Titan, Compression Spring

706006183

$76.84

130c

Liquid Titan, Compression Spring

706006184

$139.52

130d

Liquid Titan, Compression Spring

706006185

$83.55

130f

Protector

706202215

$8.66

130g

Washer M5

250200025

$0.70

130h

Hex Flange Screw M5 X 11

210251150

$2.00

135a

RH Rear Adjustable Shock Absorber

706004809

$895.49

135b

Liquid Titan, Compression Spring

706006183

$76.84

135c

Liquid Titan, Compression Spring

706006184

$139.52

135d

Liquid Titan, Compression Spring

706006185

$83.55

135f

Protector

706202215

$8.66

135g

Washer M5

250200025

$0.70

135h

Hex Flange Screw M5 X 11

210251150

$2.00

140

Flange Screw M12 X 60

250000857

$6.99

145

Elastic Flange Nut M12

250001195

$2.46

150

Flange Screw M12 X 60

250000857

$6.99
