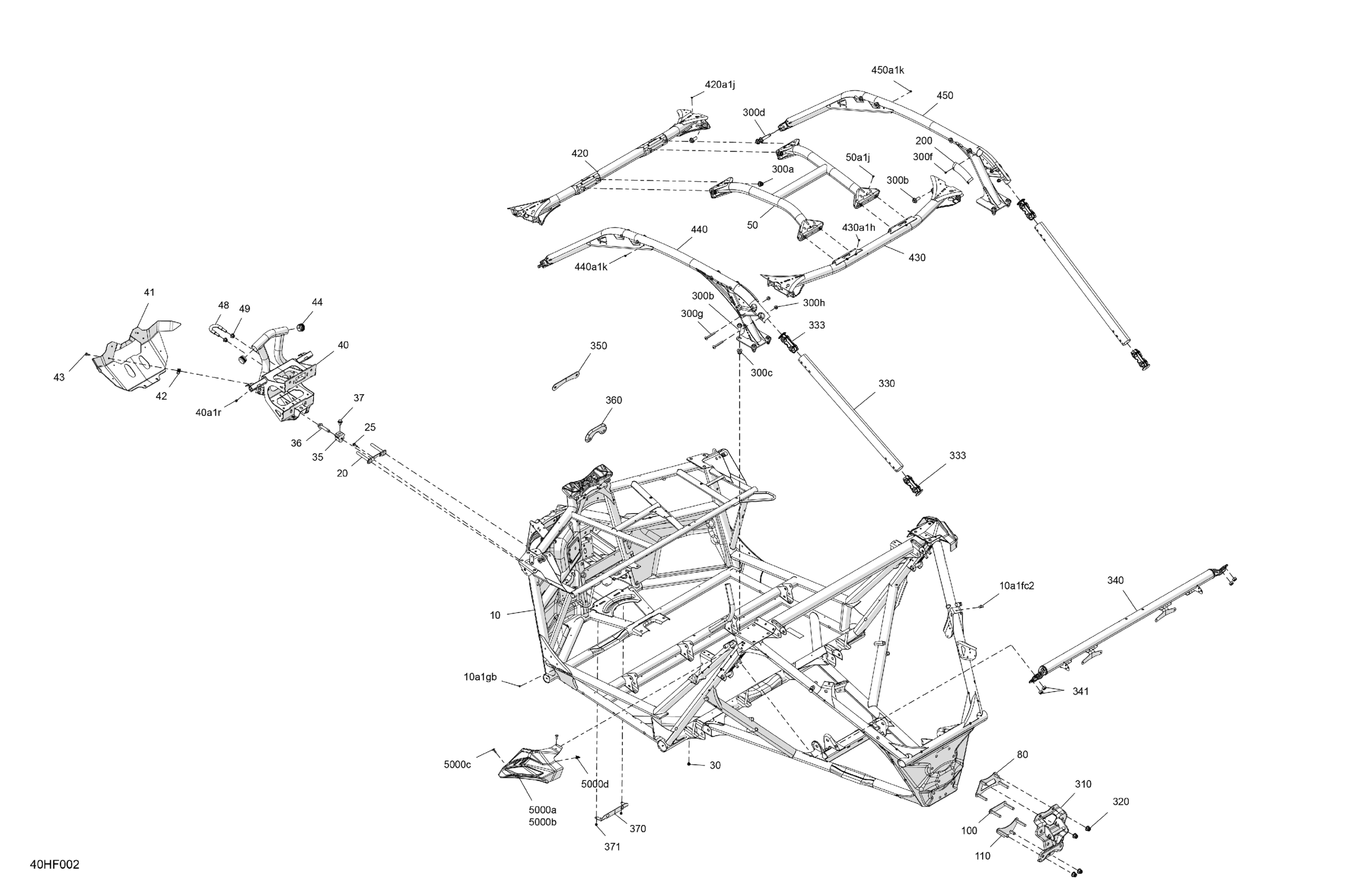

Can-Am Maverick - TURBO RR - XMR - 6VTA - Loft Green Satin - 72" Width, 2026 Frame - System Diagram

#

Description
Price

10

Black, Frame Kit

715011293

$3,359.99

10a1fc2

Nut M6

250100059

$1.55

10a1gb

Pop Rivet 3/16 X ,425

293150293

$0.30

20

Front Plate

705211898

$17.88

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

30

Insert Half Hex Body M6 x 1.0

250100199

$2.91

35

Bumper Link

705206992

$14.90

36

Flange Screw M12 X 60

250000857

$6.99

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

40

Liquid Titan, Front Bumper Kit

715011348

$342.51

40a1r

Pop Rivet 3/16 X ,425

293150293

$0.30

41

Front Master Plate

715006996

$188.78

42

Panel Nut M6 X 1.0

250100198

$1.99

43

Torx Screw M6 X 20

250000722

$1.54

44

Cap

705202455

$4.27

48

Deep Black, Flange

705212138

$35.79

49

Hex. Flange Elastic Nut M10

233201436

$2.00

50

Liquid Titan, Reinforcement Cage | Includes 50 to 50a1j

705209864

$91.99

50a1j

Pop Rivet 3/16 X ,425

293150293

$0.30

80

Rear Upper Plate

705211557

$17.13

100

Rear Central Plate

705211558

$17.13

110

Rear Lower Plate

705211556

$16.39

200

Liquid Titan, Upper Plate Kit

705211601

$24.60

310

Junction Plate Kit

715008492

$40.27

320

Elastic Flange Nut M12

250001195

$2.46

330

Liquid Titan, Rear Pillar

705209861

$24.99

333

Sleeve

705210648

$8.42

340

Safety Belt Anchorage

705212141

$112.66

341

Elastic Stop Nut M12

232521416

$1.61

350

Connecting Plate

705211552

$4.81

360

Retaining Plate

705210249

$4.72

370

Support

705211560

$10.67

371

Pop Rivet 3/16 X ,425

293150293

$0.30

420

Liquid Titan, Front Cross Member | Includes 420 to 420a1j

705209868

$204.99

420a1j

Pop Rivet 3/16 X ,425

293150293

$0.30

430

Liquid Titan, Rear Cross Member | Includes 430 to 430a1h

705209870

$194.74

430a1h

Pop Rivet 3/16 X ,425

293150293

$0.30

440

Liquid Titan, LH Cage Kit

715011253

$399.99

440a1k

Pop Rivet 3/16 X ,425

293150293

$0.30

450

Liquid Titan, RH Cage Kit

715008460

$399.99

450a1k

Pop Rivet 3/16 X ,425

293150293

$0.30

300a

Elastic Flange Nut M12

250001195

$2.46

300b

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

300c

Elastic Flange Nut M12

250001195

$2.46

300d

Flange Screw M12 X 60

250000857

$6.99

300f

Black, Pop Rivet 3/16 X ,425

293150300

$0.69

300g

Torx Truss M8 X 65

250000901

$1.79

300h

Elastic Flange Nut M8

250100025

$1.43

5000a

LH Rear Cage Trim

705010335

$32.06

5000b

RH Rear Cage Trim

705010336

$32.06

5000c

Torx Screw M6 X 20

250000722

$1.54

5000d

Clip

293650268

$0.66
