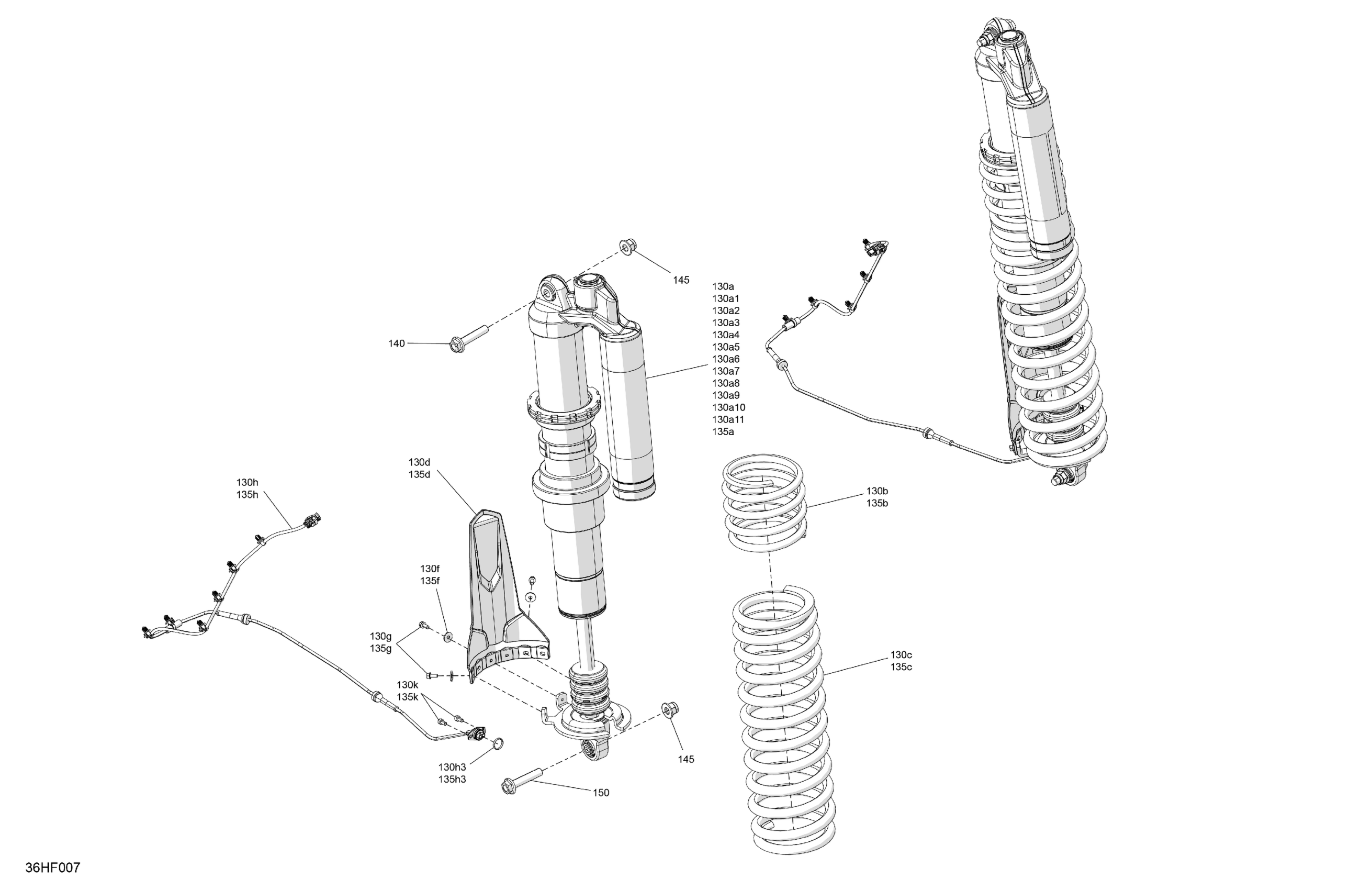

Can-Am Maverick - TURBO RR - XDS SAS - 7STU - Timeless Black Metallic - 64" Width, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a5

706004671

$1,529.99

130a1

Spherical Bearing

715900337

$79.07

130a2

Ball Joint

706004078

$44.00

130a3

O-Ring Bushing

715900338

$10.55

130a4

Circlip

715900480

$10.24

130a5

Reducer

715900481

$24.60

130a6

Preload Ring

715900605

$23.85

130a7

Preload Ring Backup

715900606

$23.85

130a8

Spring Adapter

715900607

$10.27

130a9

Crossover ring

715900608

$111.91

130a10

Spring Retainer

715900597

$32.81

130a11

Spring Coupler

715900593

$96.99

130b

Deep Black, Compression Spring

706005120

$115.64

130c

Deep Black, Compression Spring

706005129

$134.30

130d

Protector

706202215

$8.66

130f

Washer M5

250200025

$0.70

130g

Hex Flange Screw M5 X 11

210251150

$2.00

130h

Rear Suspension Wiring Harness Ass'y

710006389

$205.94

130h3

O Ring

293300213

$1.97

130k

Socket Head Screw M5 X 10

205551060

$1.49

135a

RH Rear Adjustable Shock Absorber

706005764

$1,529.99

135b

Deep Black, Compression Spring

706005120

$115.64

135c

Deep Black, Compression Spring

706005129

$134.30

135d

Protector

706202215

$8.66

135f

Washer M5

250200025

$0.70

135g

Hex Flange Screw M5 X 11

210251150

$2.00

135h

Rear Suspension Wiring Harness Ass'y

710006389

$205.94

135h3

O Ring

293300213

$1.97

135k

Socket Head Screw M5 X 10

205551060

$1.49

140

Flange Screw M12 X 60

250000857

$6.99

145

Elastic Flange Nut M12

250001195

$2.46

150

Flange Screw M12 X 60

250000857

$6.99
