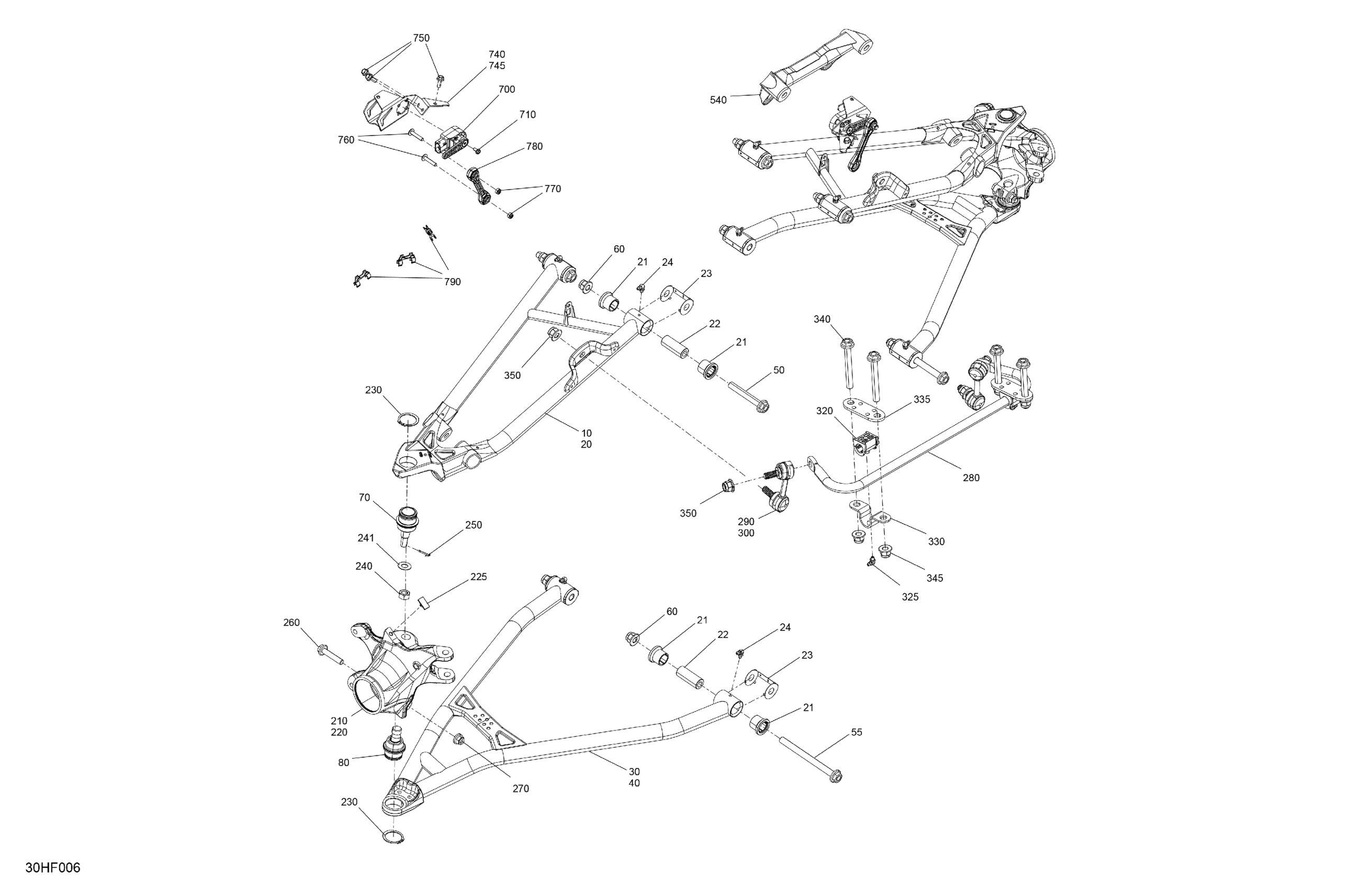

Can-Am Maverick - TURBO RR - XDS SAS - 7STU - Timeless Black Metallic - 64" Width, 2026 Suspension - Front Components Diagram

Deep Black, LH Upper Suspension Arm

706206031

$266.39

Deep Black, RH Upper Suspension Arm

706206032

$187.28

Deep Black, RH Rear Suspension Arm

706206653

$8.40

Interior Bushing

706202257

$7.27

Wear Plate

706202300

$1.69

Grease Elbow Fitting

293550085

$1.04

Deep Black, LH Front Suspension Arm Ass'y With Balljoint This part replaces 706202919.

715010612

$241.76

Deep Black, RH Front Suspension Arm Ass'y With Balljoint This part replaces 706202920.

715010611

$241.76

Flange Screw M12 X 85

250000859

$4.54

Flange Screw M12 X 145

250000861

$6.28

Elastic Flange Nut M12

250001195

$2.46

Ball Joint With Circlip Pin Kit

703501263

$34.30

Ball Joint Kit With Circlip

703501262

$34.30

LH Front Knuckle

706204785

$187.28

RH Front Knuckle

706204786

$138.03

Wear Plate

706202502

$2.29

Circlip

293370035

$2.48

Hex Nut M12

250100239

$1.88

Hardened Washer

706200281

$2.69

Cotter Pin

211400017

$0.28

Hex.Flange Screw Din.6921

207605046

$4.54

Hex. Flange Elastic Nut M10

233201436

$2.00

Stabilizer Bar Ass'y

706203953

$91.01

LH Stabilizer Bar Link

706203611

$62.66

RH Stabilizer Bar Link

706203612

$62.66

Stabilizer Bar Bushing

706204564

$3.58

Grease Elbow Fitting

293550085

$1.04

Mounting Clamp

706205649

$6.19

Support Plate

706202551

$4.52

Hex. Flange Screw M12 X 95

250000876

$6.36

Elastic Flange Nut M12

250001195

$2.46

Elastic Flange Nut M12

250001195

$2.46

Black, Link

706202708

$49.97

Position Sensor

710009195

$62.66

Hex. Flange Screw M5x10

207551056

$1.81

LH Front Sensor Support

705211588

$34.30

RH Front Sensor Support

705211589

$34.30

Hex. Flange Screw M6 X 16

207661654

$2.00

Stainless, Torx Screw M6 X 30

250000842

$2.00

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.55

Link

706203429

$17.88

Hose Support

706205606

$1.27
