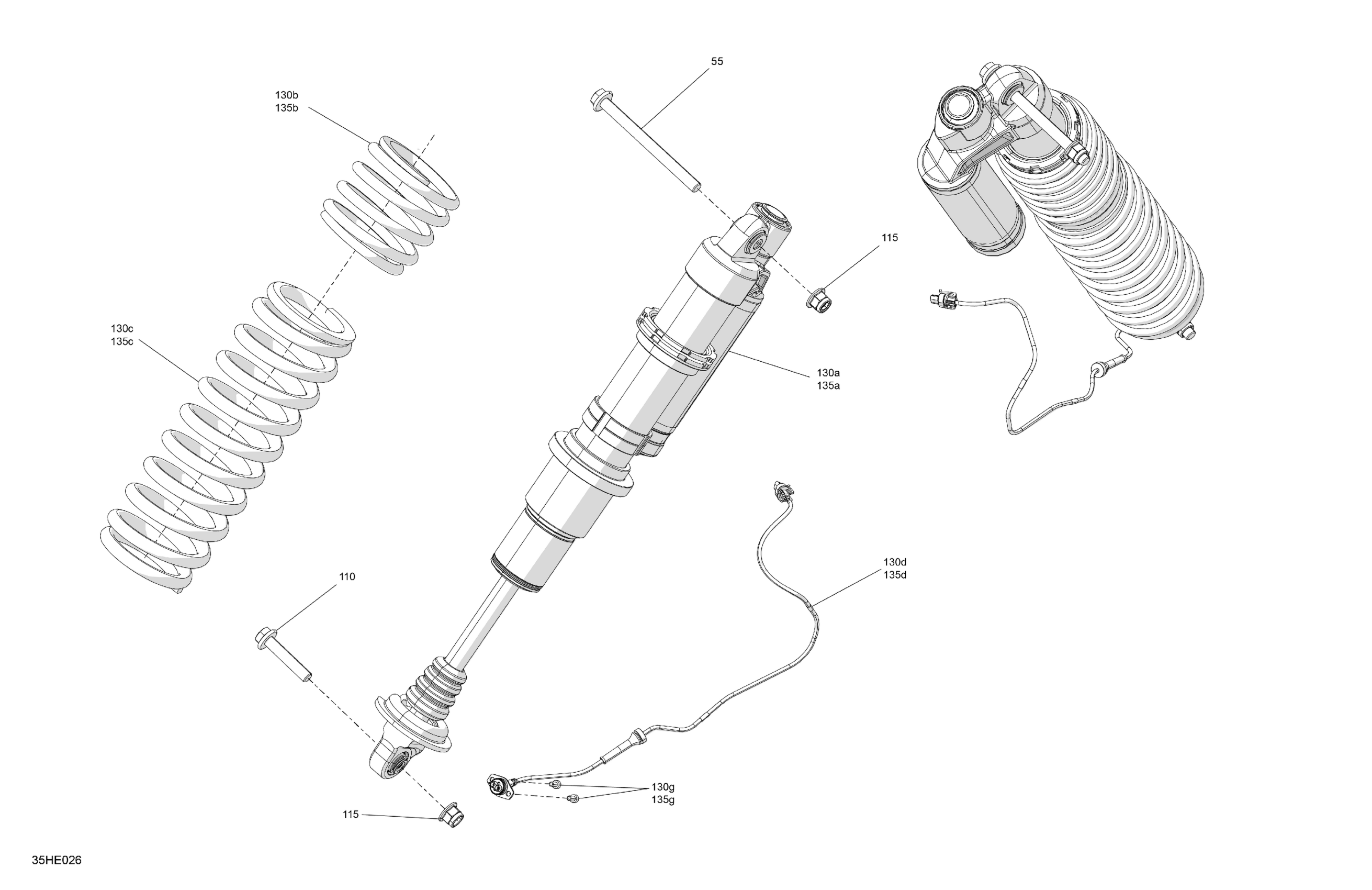

Can-Am Maverick - TURBO RR - XDS SAS - 7SSN - Timeless Black Metallic - 64" Width, 2025 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.28

110

Flange Screw M12 X 60

250000857

$6.99

115

Elastic Flange Nut M12

250001195

$2.46

130a

LH Front Adjustable Shock Absorber

706204823

$1,139.99

130b

Deep Black, Compression Spring

706205789

$115.64

130c

Deep Black, Compression Spring

706205343

$162.66

130d

Front Suspension Wiring Harness Ass'y

710006388

$205.94

130g

Socket Head Screw M5 X 10

205551060

$1.49

135a

RH Front Adjustable Shock Absorber

706204824

$1,139.99

135b

Deep Black, Compression Spring

706205789

$115.64

135c

Deep Black, Compression Spring

706205343

$162.66

135d

Front Suspension Wiring Harness Ass'y

710006388

$205.94

135g

Socket Head Screw M5 X 10

205551060

$1.49
