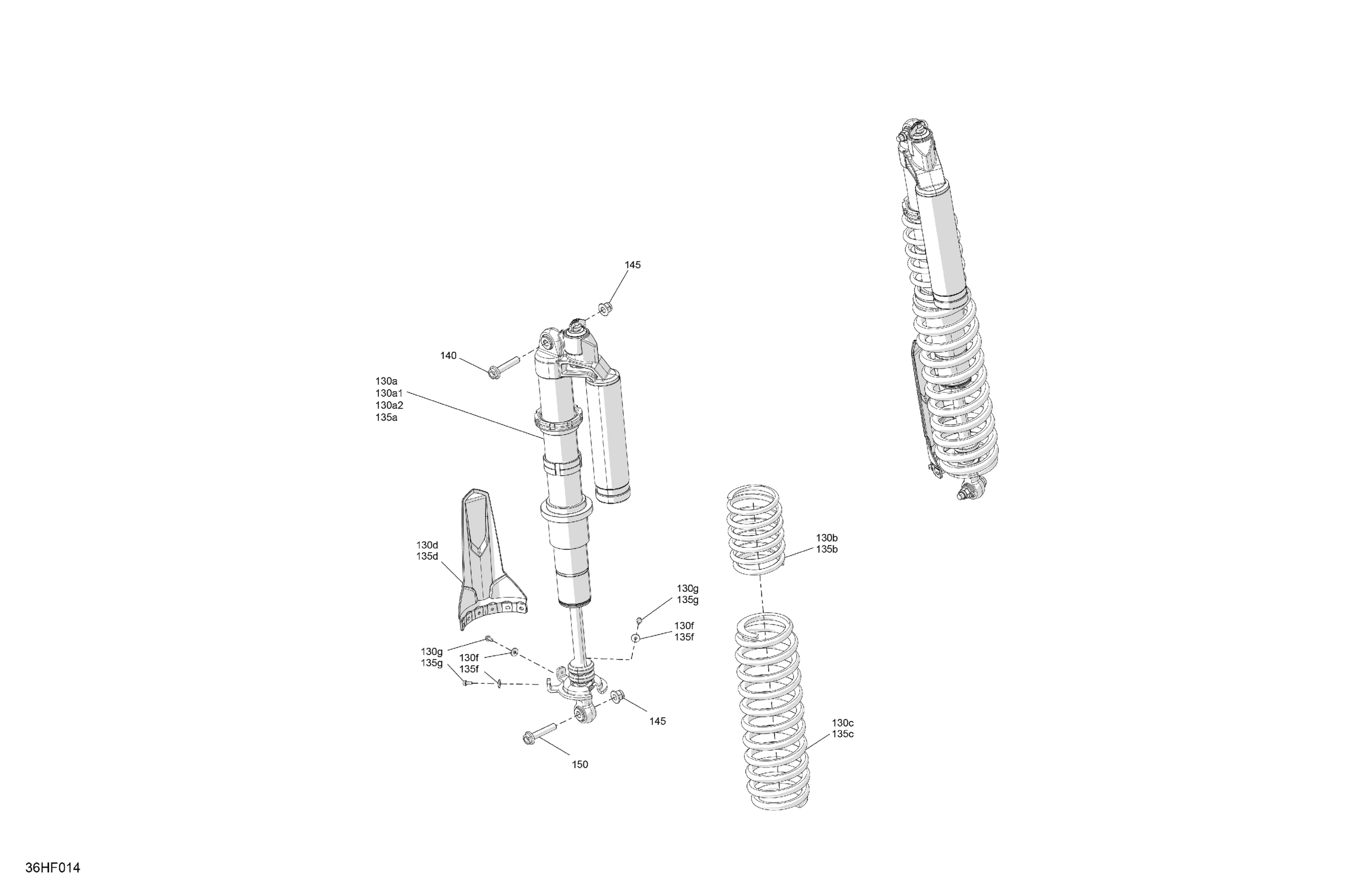

Can-Am Maverick - TURBO RR - RS - 9ETD - Dusty Navy Satin - 72" Width, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber

706004680

$933.05

130a1

Collar

715900791

$13.83

130a2

Spherical Bearing

715900954

$73.82

130b

Legion Red, Compression Spring

706005552

$96.89

130c

Legion Red, Compression Spring

706005558

$138.43

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

135a

RH Rear Adjustable Shock Absorber

706004681

$901.51

135b

Legion Red, Compression Spring

706005552

$96.89

135c

Legion Red, Compression Spring

706005558

$138.43

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Hex. Flange Screw M12 X 70

250000858

$3.11
