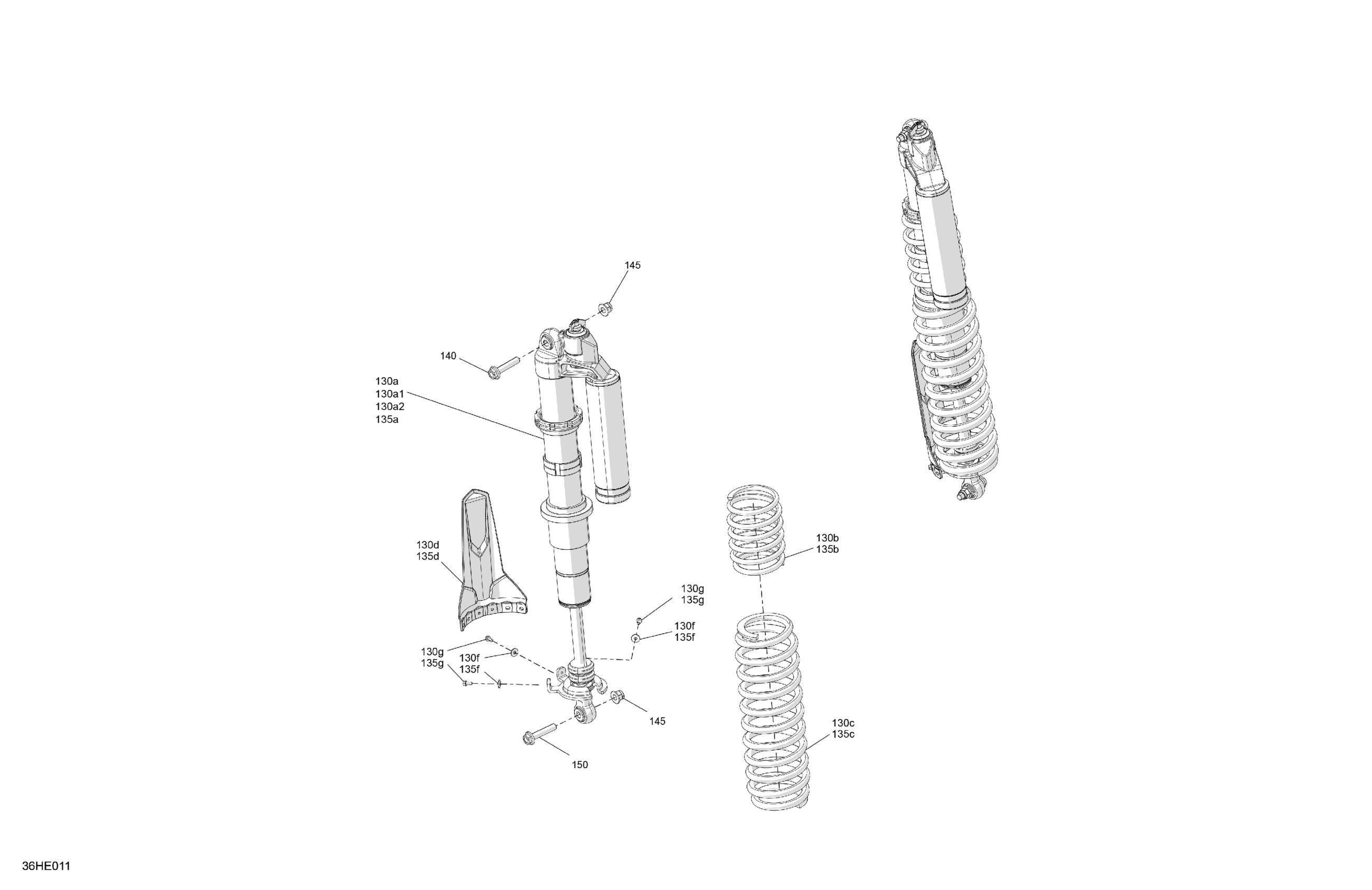

Can-Am Maverick - TURBO RR - RS - 9ESD - Fiery Red Metallic - 72" Width, 2025 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber

706004680

$1,009.99

130a1

Collar

715900791

$14.49

130a2

Spherical Bearing

715900954

$76.99

130b

Legion Red, Compression Spring

548875089

Unavailable

130c

Legion Red, Compression Spring

706005558

$142.99

130d

Protector

706202215

$11.99

130f

Washer M5

250200025

$0.74

130g

Hex Flange Screw M5 X 11

210251150

$2.11

135a

RH Rear Adjustable Shock Absorber

706004681

$979.99

135b

Legion Red, Compression Spring

548875089

Unavailable

135c

Legion Red, Compression Spring

706005558

$142.99

135d

Protector

706202215

$11.99

135f

Washer M5

250200025

$0.74

135g

Hex Flange Screw M5 X 11

210251150

$2.11

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

250001195

$2.64

150

Hex. Flange Screw M12 X 70

250000858

$3.80
