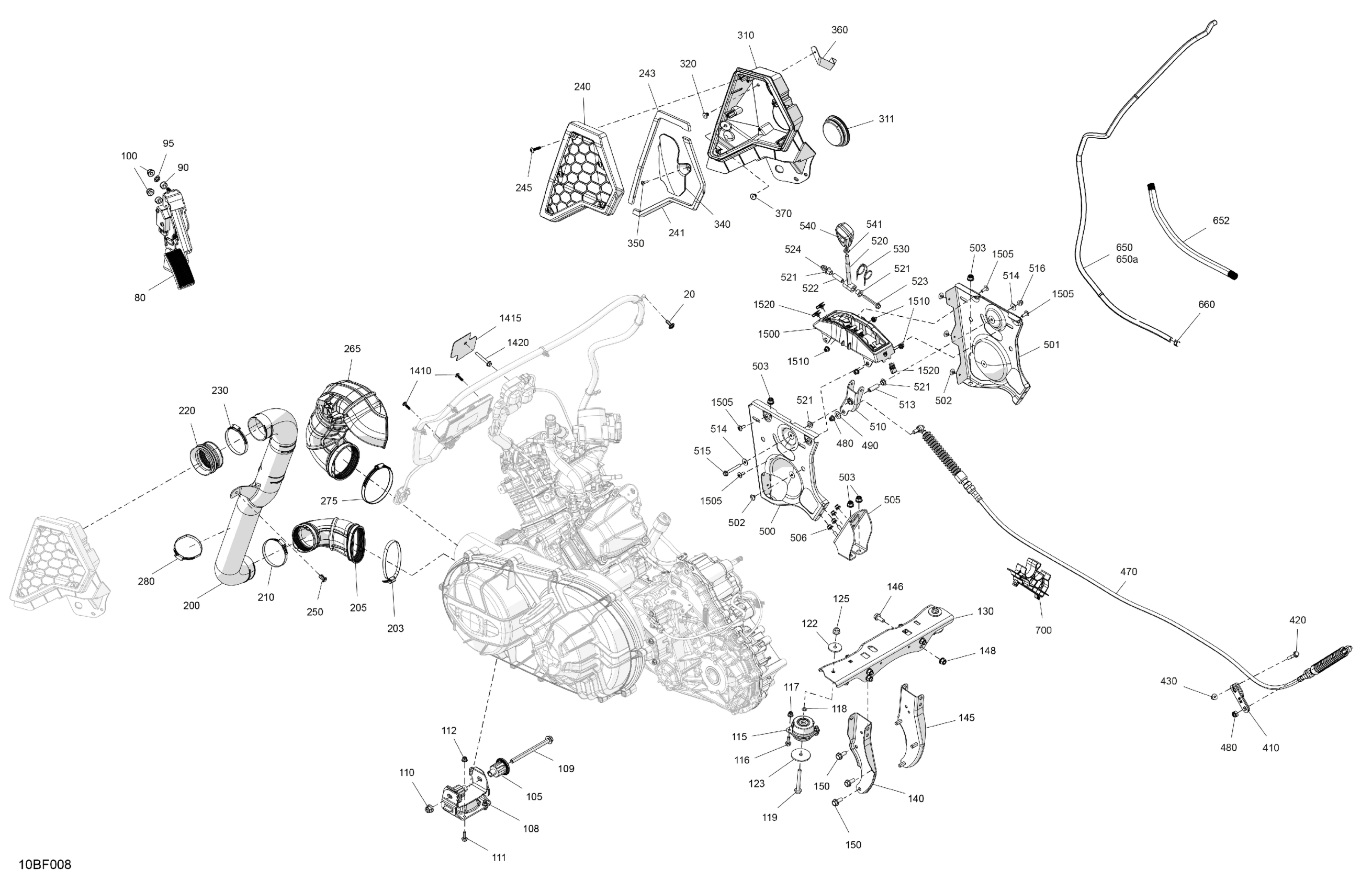

Can-Am Maverick Trail - 1000 EFI - DPS - 7FTC - Timeless Black Metallic - 50" Width - CALI, 2026 Engine - System Diagram

#

Description
Price

20

Screw PT Type K-50 X 16

250000959

$1.74

80

Accelerator Pedal

707003504

$281.51

90

Bushing

707000848

$1.08

95

Push Nut

250100031

$6.86

100

Hex. Flange Nut M8

233081416

$1.63

105

Vibration Damper

707001169

$44.99

108

Vibration Damper

707003563

$147.66

109

Hex. Flange Screw M10 X 135

230603546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

111

Hex. Flange Screw M6 X 20

207662044

$1.66

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

115

Rubber Mount

707002590

$59.97

116

Hex. Flange Screw M6 X 20

207662044

$1.66

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

118

O-Ring

293300215

$0.88

119

Hex. Flange Screw, M8 X 65

207686544

$9.74

122

Flat Washer M8

250200158

$1.74

123

Flat Washer M8

250200180

$1.79

125

Hex. Flange Nut M8

233081416

$1.63

130

Rear Link Bracket

707002290

$32.28

140

LH Rear Engine Support

707003338

$12.31

145

RH Rear Engine Support

707003340

$16.12

146

Hex Flange Screw M8 X 20

207582046

$1.25

148

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex Flange Screw M8 X 20

207582046

$1.25

200

Front CVT Cooling Duct

706600183

$41.51

203

Norma Clamp

514052924

$10.58

205

Flexible Adapter

706600249

$18.43

210

Norma Clamp

293650091

$4.60

220

Soft Fitting

706600190

$14.75

230

Norma Clamp

293650091

$4.60

240

CVT Filter

706600417

$41.51

241

Gasket

706600191

$37.66

243

Gasket

706600231

$11.98

245

Hex. Screw Pt K60 X 25

250000980

$1.74

250

Tuflok Plastic Rivet

293150230

$1.21

265

CVT Cooling Duct Out

706600192

$32.28

275

Norma Gear Clamp

514052983

$11.43

280

Norma Clamp

293650091

$4.60

310

CVT Airbox

706600196

$46.12

311

Plug

707002217

$2.75

320

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

340

Baffle

706600286

$27.66

350

Torx Screw K50 X 16

250000720

$1.39

360

Support

706600237

$5.97

370

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

410

Lever

707000911

$18.43

420

Hex. Flange Screw M6 X 35

207663544

$0.74

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

470

Shifting Cable

707002000

$69.20

480

Hex. Elastic Stop Nut M8

232581414

$0.47

490

Flat Washer 10 mm

234001410

$0.98

500

LH Bracket

707002099

$23.05

501

RH Bracket

707002100

$23.05

502

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

503

Hex. Elastic Flange Nut M8

233281416

$1.25

505

Cable Support

707002098

$15.22

506

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

510

Lower Lever Arm

707002093

$17.66

513

Bushing

707001376

$4.22

514

Flat Washer 6 mm

234062410

$0.64

515

Hex. Flange Screw M6 X 50

207665044

$3.38

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

520

Upper Lever Arm

707000711

$36.89

521

Flanged Bushing

707000869

$2.20

522

Bushing

707001376

$4.22

523

Hex. Flange Screw M6 X 50

207665044

$3.38

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

530

Lever Arm Spring

707000750

$2.75

540

Lever Trim

707003211

$7.95

541

Hexagonal Jam Nut M8

232180461

$7.31

650

Hose 6.35MM ID

219704534

$23.05

650a

Not Available As Spare Parts

XXX

Unavailable

652

Tubing 16 Mm 1000Mm Long

219704408

$6.23

660

Oetiker Clamp

293650042

$1.40

700

Hose Support

707002116

$10.15

1410

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1415

Insulator Pad

710000073

$11.06

1420

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.06

1500

Lever Indicator

707900603

$27.66

1505

Torx Head Screw M6 X 16

250000717

$1.74

1510

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1520

Panel Nut M6 X 1.0

250100198

$1.73
