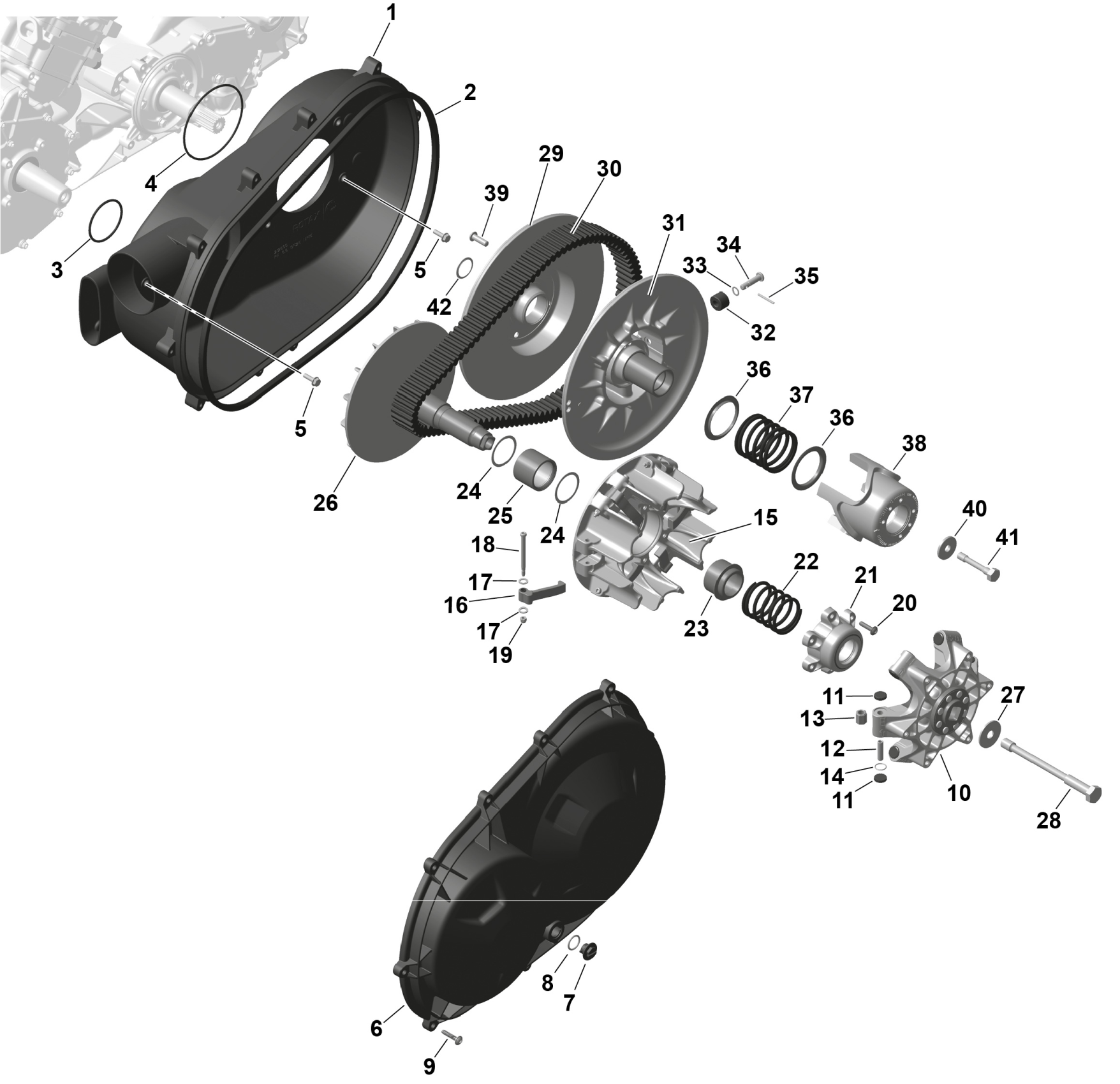

Can-Am Maverick Trail - 1000 EFI - DPS - 7FTC - Timeless Black Metallic - 50" Width - CALI, 2026 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420212604

$212.28

2

Gasket

420450400

$32.28

3

O-Ring | Included in gasket kit

420430409

$5.52

4

O-Ring

420450431

$5.52

5

Hex.Screw M6 X 20

420441311

$4.24

6

Variator Cover

420212500

$193.82

7

Cap

420441820

$11.06

8

O-Ring

420250052

$9.29

8

O-Ring

420250050

$9.29

9

Torx Screw 6X30

420441575

$2.54

10

Governor Cup Ass'y

420280727

$179.97

11

Slider Shoe Set

420281296

$42.28

12

Roller Axle

417223257

$9.22

13

Roller Thrust

420229991

$18.43

14

O-Ring

420230456

$1.54

15

Outer Half Ass'y

420280608

$193.82

16

Centrifugal Lever Kit | Includes no. 16-19

420248684

$166.12

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Torx Flange Screw M6 X 25

420841549

$1.97

21

Bearing Cover

420280616

$69.20

22

Compression Spring

420638129

$14.75

23

Spring Retainer

420427211

$18.43

24

Washer

420427220

$4.60

25

Needle Roller Bearing With Sleeves

420832351

$46.12

26

Inner Half Ass'y

420280597

$318.43

27

Washer

420245690

$4.60

28

Hexagonal Screw M14X 165

420841161

$27.66

29

Inner Half Ass'y

420280635

$166.12

30

Drive Belt

422280656

$166.24

31

Outer Half Ass'y

420280627

$350.74

32

Pulley Roller

417127016

$23.05

32

QRS XD Roller Kit (2)

861805577

$77.66

33

Lock Washer 8 mm

250200009

$2.06

34

Pivot Stud

417127294

$13.58

35

Dowel Pin

420629200

$2.31

36

Swivel Abutment

417127116

$8.06

37

Black, Return Spring

417127039

$45.35

38

Cam

420280647

$184.58

39

Binding Head Screw M8X25

420441981

$16.89

40

Collar Washer

420427243

$15.35

41

Hexagonal Screw M10X 61

420441990

$18.43

42

Distance Ring

420647263

$27.66
