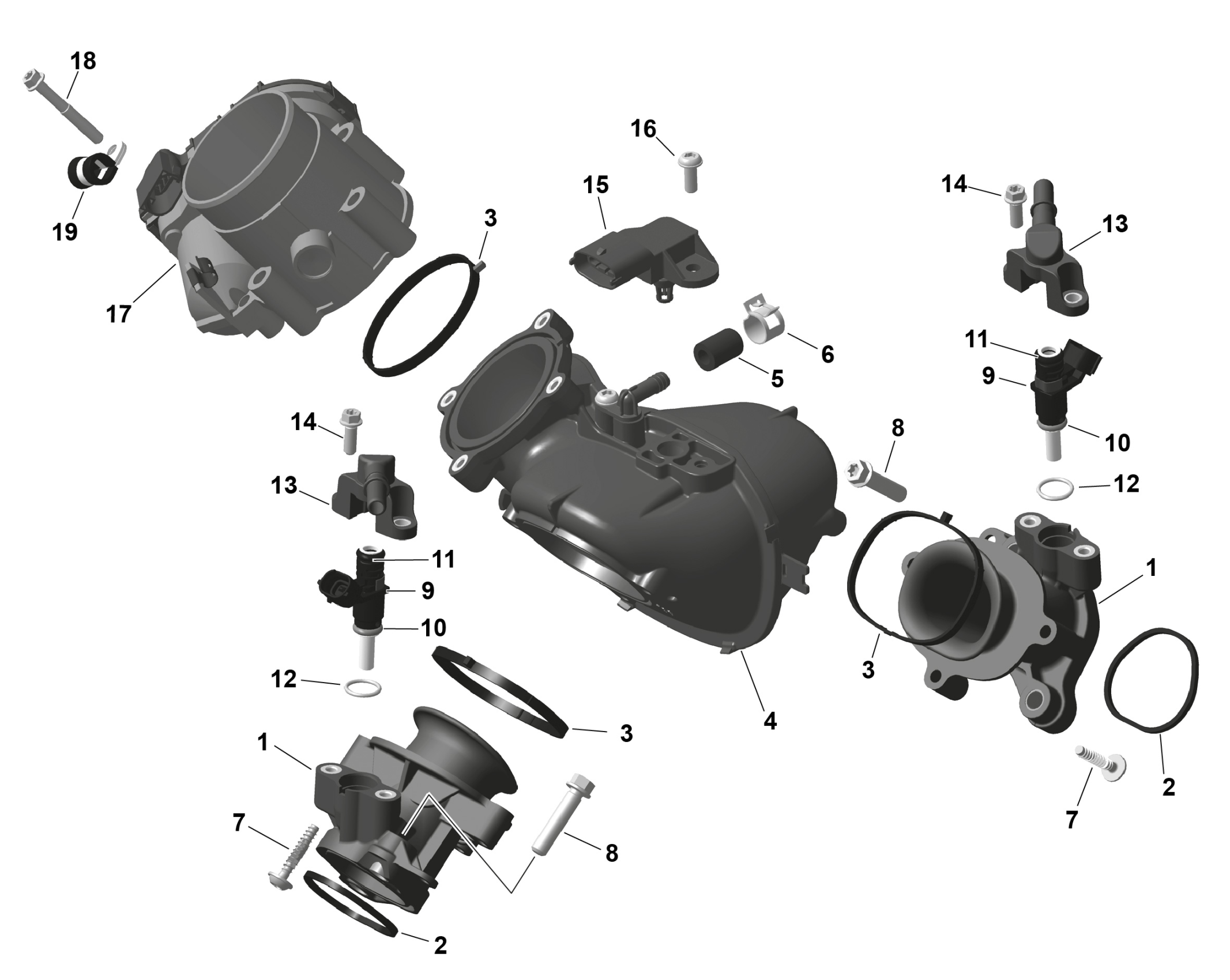

Can-Am Maverick Trail - 1000 EFI - DPS - 7FTC - Timeless Black Metallic - 50" Width - CALI, 2026 ROTAX - Air Intake Manifold And Throttle Body Diagram

Description

Price

Air Intake Manifold

420267610

$69.20

Gasket

420630642

$5.22

Gasket | Included in gasket kit

420431900

$5.52

Air Inlet Manifold

420667800

$69.20

Cap

420201910

$6.15

Spring Type Clamp 14

420853512

$4.60

Torx Screw 6X30

420441575

$2.54

Torx Flange Screw M8 X 35

420641188

$6.11

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

O-Ring

420431890

$4.95

O-Ring

420631220

$11.48

O-Ring

420631296

$0.74

Fuel Rail

420874902

$15.22

Torx Flange Screw M6 X 16

420440162

$3.11

Pressure And Temperature Sensor

420874658

$70.82

Torx Flange Screw M6 X 16

420641588

$1.74

Throttle Body Socket Ass'y

420892596

$446.89

Torx Flange Screw M6 X 45

420440324

$0.81

Cable Clamp

420251692

$9.87
