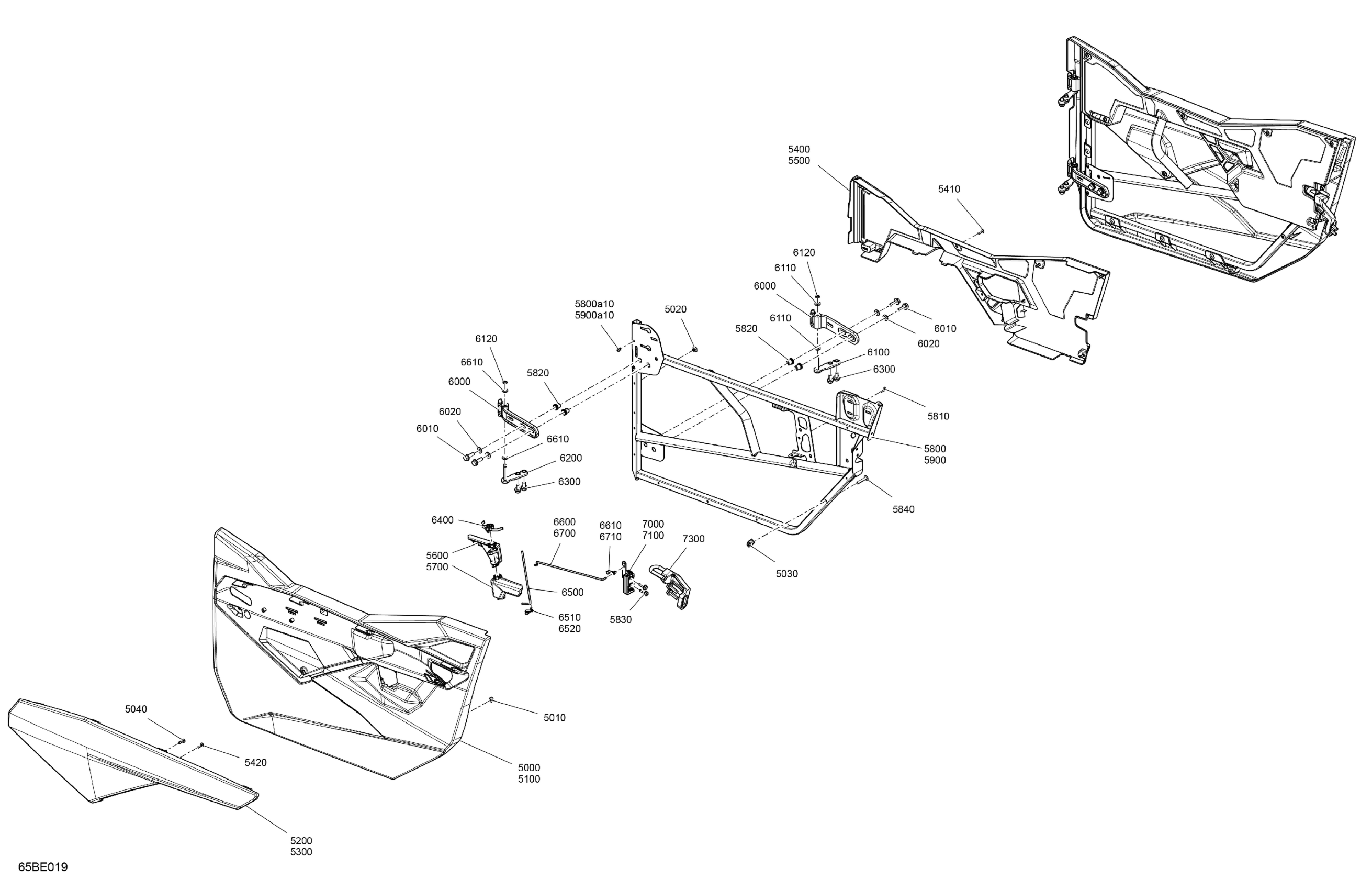

Can-Am Maverick Trail - 1000 - DPS - 7FSB - Timeless Black Metallic - 50" Width, 2025 Enclosure Cab - Doors Diagram

Description

Price

5000

LH Exterior Door Panel

705011479

$105.35

5010

Rubber Bumper

293830005

$5.33

5020

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

5030

Panel Nut M6 X 1.0

250100198

$1.73

5040

Torx Screw K50 X 16

250000720

$1.39

5100

RH Exterior Door Panel

705011480

$105.35

5200

Timeless Black, LH Front Door Panel

705015607

$172.28

5300

Timeless Black, RH Front Door Panel

705015613

$244.99

5400

LH Front Door Trim Ass'y

715009759

$101.51

5410

Torx Screw K50 X 16

250000720

$1.39

5420

Torx Screw K50 X 16

250000720

$1.39

5500

RH Front Door Trim Ass'y

715009761

$101.51

5600

LH Opening Handle

705011585

$16.12

5700

RH Opening Handle

705011586

$16.12

5800

LH Door Frame | Includes 5800 to 5800a10

705800303

$140.74

5800a10

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

5810

Torx Screw K50 X 16

250000720

$1.39

5820

Insert Half Hex Body M8 x 1.25

293450307

$2.03

5830

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

5840

Torx Screw M6 X 35

250000541

$1.74

5900

RH Door Frame | Includes 5900 to 5900a10

705800304

$140.74

5900a10

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

6000

Hinge

705013228

$27.66

6010

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

6020

Washer

503192494

$3.11

6100

Lower Hinge Ajustement

705011629

$12.31

6110

Flat Washer 8 mm, Nylon

234081100

$1.00

6120

Circlip | RS STD

705601030

$4.12

6200

Upper Hinge Ajustement

705012506

$12.31

6300

Hex. Flange Screw DIN.6921 S.Grip

250001033

$0.95

6400

Handle Spring

705011630

$10.14

6500

Handle Axle

705206132

$11.54

6510

RH Tie Rod Clip

708300202

$2.31

6520

LH Tie Rod Clip

708300182

$2.31

6600

LH Locking Rod

705206133

$3.98

6610

RH Tie Rod Clip

708300202

$2.31

6700

RH Locking Rod

705206134

$3.98

6710

LH Tie Rod Clip

708300182

$2.31

7000

LH Latch

705013095

$55.35

7100

RH Latch

705013096

$55.35

7300

RH Stricker Support

705207028

$27.66
