01- ROTAX - CVT

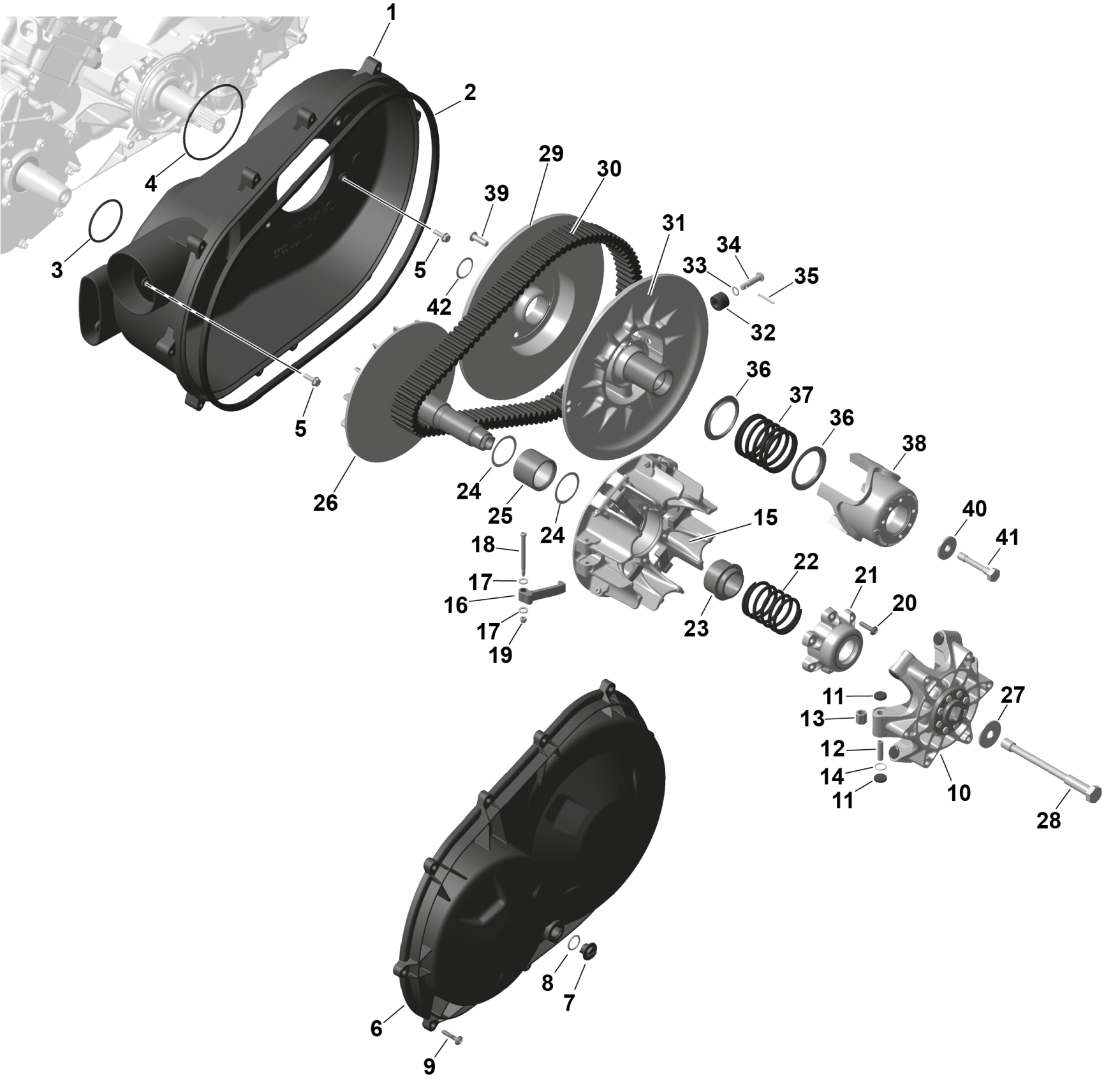

Can-Am North America - Maverick Trail - 1000 - DPS - 7FSB - Timeless Black Metallic - 50" Width, 2025 01- ROTAX - CVT Diagram
#
1
CVT Air Guide
420212604
Unavailable
2
Gasket
420450400
Unavailable
3
O-Ring
420430408
Unavailable
4
O-Ring
420450431
Unavailable
5
Hex.Screw M6 X 20
420441311
Unavailable
6
Variator Cover
420212500
Unavailable
7
Cap
420441820
Unavailable
8
O-Ring
420250052
Unavailable
8
O-Ring
420250050
Unavailable
9
Torx Screw 6X30
420441575
Unavailable
10
Governor Cup Ass'y
420280727
Unavailable
11
Slider Shoe Set
420281296
Unavailable
12
Roller Axle
417223257
Unavailable
13
Roller Thrust
420229991
Unavailable
14
O-Ring
420230456
Unavailable
15
Outer Half Ass'y
420280608
Unavailable
16
Centrifugal Lever Kit | Includes no. 16-19
420248684
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
Not Available As Spare Parts
XXX
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
20
Torx Flange Screw M6 X 25
420841549
Unavailable
21
Bearing Cover
420280616
Unavailable
22
Compression Spring
420638119
Unavailable
23
Spring Retainer
420427211
Unavailable
24
Washer
420427220
Unavailable
25
Needle Roller Bearing With Sleeves
420832351
Unavailable
26
Inner Half Ass'y
420280597
Unavailable
27
Washer
420245690
Unavailable
28
Hexagonal Screw M14X 165
420841161
Unavailable
29
Inner Half Ass'y
420280635
Unavailable
30
Drive Belt
422280656
Unavailable
31
Outer Half Ass'y
420280627
Unavailable
32
Pulley Roller
417127016
Unavailable
33
Lock Washer 8 mm
250200009
Unavailable
34
Pivot Stud
417127294
Unavailable
35
Dowel Pin
420629200
Unavailable
36
Swivel Abutment
417127116
Unavailable
37
Black, Return Spring
417127039
Unavailable
38
Cam
420280647
Unavailable
39
Binding Head Screw M8X25
420441981
Unavailable
40
Collar Washer
420427243
Unavailable
41
Hexagonal Screw M10X 61
420441990
Unavailable
42
Distance Ring
420647263
Unavailable
