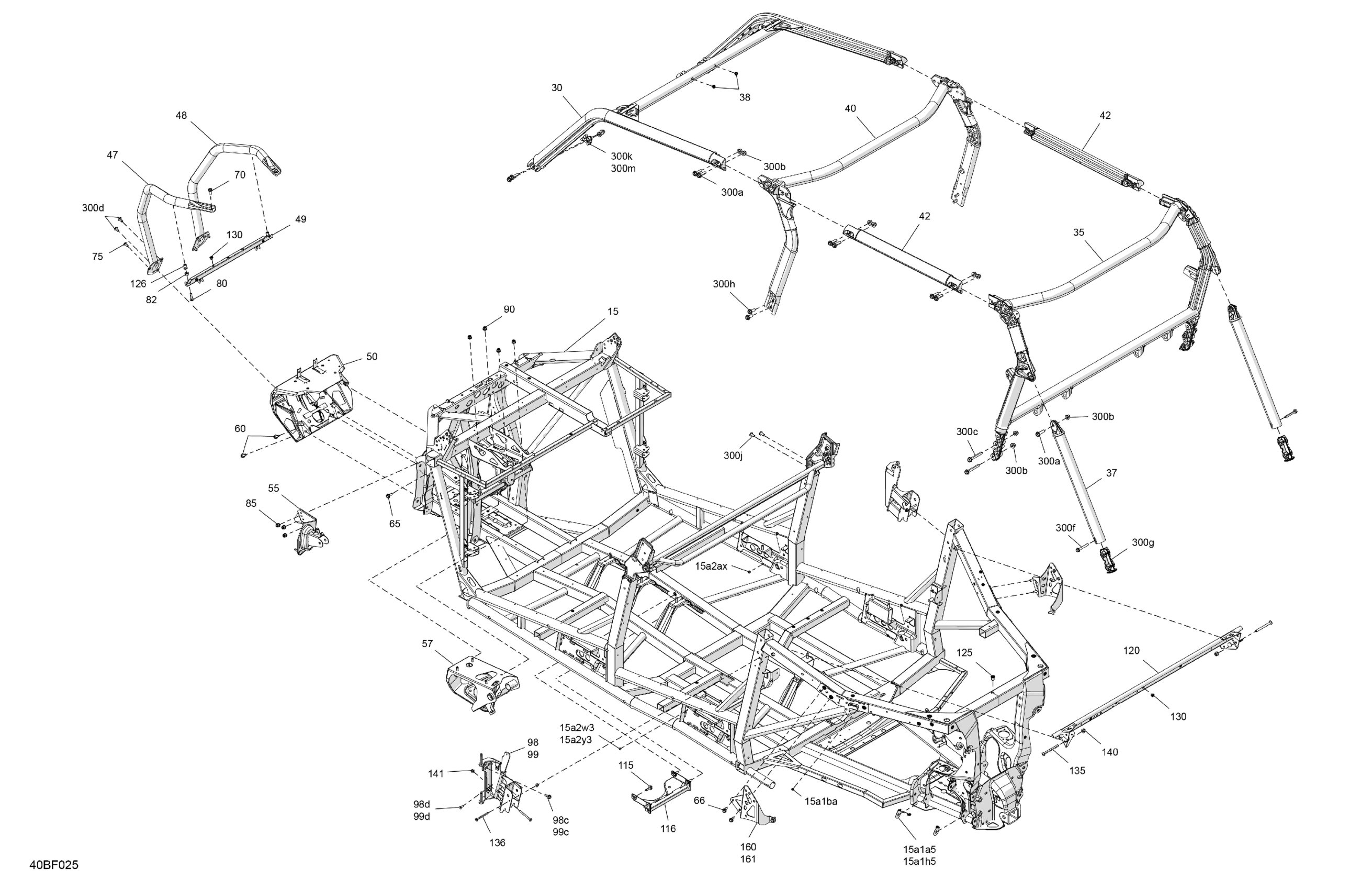

Can-Am Maverick Sport MAX - 1000R EFI - DPS - 9JTC - Timeless Black Metallic - 60" Width, 2026 Frame - System Diagram

#

Description
Price

15

Chassis Kit Max | Includes 15 to 15a2y3

715009466

$2,969.99

15a1a5

Shim

705209479

$3.29

15a1h5

Shim

705209479

$3.29

15a1ba

Pop Rivet 3/16 X ,425

293150293

$0.35

15a2w3

Pop Rivet 3/16 X ,425

293150293

$0.35

15a2y3

Pop Rivet 3/16 X ,425

293150293

$0.35

15a2ax

Pop Rivet 3/16 X ,425

293150293

$0.35

30

Deep Black, Front Cage Kit | Includes 30 to 30a

715009384

$619.99

35

Deep Black, Rear Cage Kit

715011063

Unavailable

37

Deep Black, Rear Cage Extension

705211125

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$3.19

40

Mid Cage Max

703501203

$519.99

42

Deep Black, Cage Extension

705209848

$41.99

47

LH Front Bumper

705206303

$116.49

48

RH Front Bumper

705206308

$116.49

49

Cross Member

705206313

$39.99

50

Deep Black, Front Bumper

705209043

$457.49

55

Brake Support

705206217

$49.99

57

DPS Support

705206294

$71.99

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

75

Torx Truss Screw M8 X 16

250000746

$3.38

80

Hex Torx Truss M8 X30

250000745

$3.17

82

Bushing

705207229

$14.49

85

Hex. Elastic Flange Nut M8

233281416

$1.48

90

Hex. Elastic Flange Nut M8

233281416

$1.48

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$439.99

98c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

98d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

99

RH Male Door Hinge Ass'y | Includes 99 to 99d

705211565

$439.99

99c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

99d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

115

Bearing Support

705211563

$48.99

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

120

Central Tube

705209434

$159.99

125

Insert Half Hex Body M8 x 1.25

293450307

$2.69

126

Insert Half Hex Body M8 x 1.25

293450307

$2.69

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Torx Truss M8 X 90

250000806

$7.51

136

Torx Screw M6 X 70

250000954

$1.90

140

Hex. Flange Nut M8

233081416

$1.15

141

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

160

LH Rear Anchorage Support

705211569

$19.99

161

RH Rear Anchorage Support

705211571

$19.99

300a

Hex. Flange Screw M10 X 35

250000855

$1.89

300b

Flange Elastic Nut M10

233201466

$3.17

300c

Hex. Flange Screw M10 X 70

207607056

$4.29

300d

Torx Truss Screw M8 X 16

250000746

$3.38

300f

Hex. Flange Screw M8 x 60

207686044

$3.07

300g

Sleeve

705210648

$9.90

300h

Hex. Flange Screw M10 X 25

207502546

$2.11

300j

Torx Truss M/S M8 X 20

250000953

$2.11

300k

LH Front Anchorage

705209913

$38.99

300m

RH Front Anchorage

705209914

$38.99
