Description

Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001674

$429.99

10b

Special Nut M130

250100062

$21.99

20

Pump Gasket

293250514

$19.49

30

Fuel Pump | Includes 30 to 30b

709001056

$372.49

30a

Fuel Filter

270600113

$33.99

30b

Fuel Sender

715900424

$144.99

40

Filler Neck Hose

709001699

$35.99

50

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Fuel Filler Neck Nut

293600206

$13.18

90

Fuel Cap

709000868

$32.99

130

Fuel Tank Support

709001453

$5.79

140

Hex. Flange Screw M6 X 16

207661644

$0.74

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$2.00

165

Spacer

293900135

$1.15

170

Washer M6

250200029

$2.50

200

Hose 7,94 MM ID

219704621

$87.99

200a

Not Available As Spare Parts

XXX

Unavailable

210

Y Fitting

709001329

$11.59

220a

Hose 7,94 MM ID

219704621

$87.99

230a

Hose 7,94 MM ID

219704621

$87.99

235

Tubing 16 Mm 1000Mm Long

219704408

$7.49

246

Screw PT Type K-50 X 16

250000959

$2.11

250

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp, 15.3-706R

293650047

$3.29

310

Crimp Clamp, 15.3-706R

293650047

$3.29

320

Crimp Clamp, 15.3-706R

293650047

$3.29

330

Crimp Clamp, 15.3-706R

293650047

$3.29

340

Crimp Clamp, 15.3-706R

293650047

$3.29

350

Crimp Clamp, 15.3-706R

293650047

$3.29

400

Quick Disconnect

275500921

$16.49

410

Quick Disconnect

275500921

$16.49

420

Quick Disconnect

275500921

$16.49

535

Oetiker Clamp

293650042

$3.09

540

Hose 6.35Mm 5000Mm Long

219704611

$194.99

540a

Not Available As Spare Parts

XXX

Unavailable

545

Y-Fitting

293710059

$9.69

550

Hose 6.35Mm 5000Mm Long

219704611

$194.99

550a

Not Available As Spare Parts

XXX

Unavailable

555

Oetiker Clamp

293650042

$3.09

560

Check Valve

513034263

$31.99

565

Check Valve This part replaces 275500087.

275501246

$10.99

570

Hose 6.35Mm 5000Mm Long

219704611

$194.99

570a

Not Available As Spare Parts

XXX

Unavailable

575

Oetiker Clamp

293650042

$3.09

580

Y-Fitting

293710059

$9.69

585

Oetiker Clamp

293650042

$3.09

800a

Formed Hose

709000879

$16.65

800b

Oetiker Clamp

293650186

$3.99

800c

Air Filter

709000524

$45.99

800d

Oetiker Clamp

293650186

$3.99

800f

Formed Hose

709000957

$16.65

800g

Crimp Clamp

293650053

$3.09

800h

Charcoal Canister This part replaces 709001294.

709001673

$88.99

800j

Charcoal Canister Support

709001498

$5.29

800k

Tridon Clamp

293650054

$9.49

800m

Hex. Elastic Stop Nut M6

232561600

$1.15

800n

Charcoal Canister Support

709001467

Unavailable

800p

Torx Screw M6 X 20

250000712

$2.11

800q

Oetiker Clamp

293650042

$3.09

800r

Charcoal Canister Hose

709001496

$19.99

800s

Crimp Clamp, 15.3-706R

293650047

$3.29

800t

Fuel Filter

513034047

$21.99

800u

Crimp Clamp, 15.3-706R

293650047

$3.29

800v

Charcoal Canister Hose

709001497

$19.99

800w

Crimp Clamp, 15.3-706R

293650047

$3.29

800x

Purge Valve

709001449

$72.99

800y

Crimp Clamp, 15.3-706R

293650047

$3.29

800z

Formed Charcoal Canister Hose

709001564

$17.49

800aa

Crimp Clamp

293650053

$3.09

800ab

Check Valve

275500941

$25.99

800ac

Crimp Clamp

293650053

$3.09

800ad

Hose

709001638

$15.99

800af

Crimp Clamp

293650053

$3.09

800ag

Flow Reducer

709000933

$4.12

800ah

Crimp Clamp, 15.3-706R

293650047

$3.29

800aj

Formed Hose

709001633

$28.99

800ak

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800am

Oetiker Clamp

293650046

$2.89

800an

Hose 6.35Mm 5000Mm Long

219704611

$194.99

800an1

Not Available As Spare Parts

XXX

Unavailable

800ap

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800aq

Wiring Harness

710009875

$27.99

820

Filter Support

709000935

$3.29

825

Stainless Steel Flat Washer

234062670

$2.11

830

Hex. Flange Screw M6 X 20

207662054

$1.01

831

Tie Wrap

293750108

$7.83

832

Tie Wrap

293750108

$7.83

860

Hex. Flange Screw M6 X 20

207662054

$1.01

870

Flat Washer M6.6 X 22

250200162

$2.32

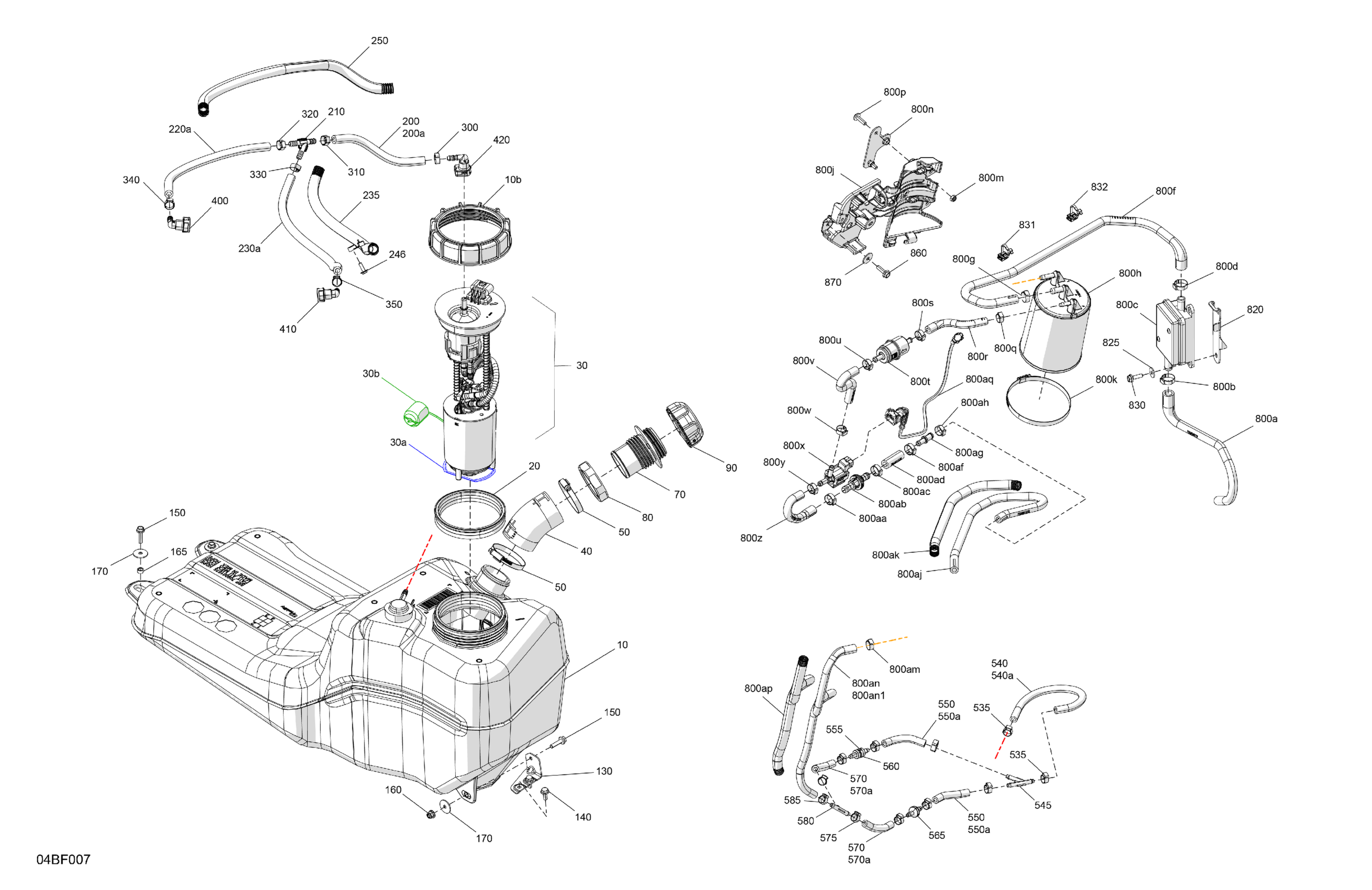

Can-Am Maverick Sport MAX - 1000R EFI - DPS - 9JTB - Timeless Black Metallic - 60" Width - CALI, 2026 Engine - Fuel Diagram

Fuel Tank Ass'y | Includes 10 to 10b

Special Nut M130

Pump Gasket

Fuel Pump | Includes 30 to 30b

Fuel Filter

Fuel Sender

Filler Neck Hose

Norma Clamp

Filler Neck

Fuel Filler Neck Nut

Fuel Cap

Fuel Tank Support

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6

Spacer

Washer M6

Hose 7,94 MM ID

Not Available As Spare Parts

Y Fitting

Hose 7,94 MM ID

Hose 7,94 MM ID

Tubing 16 Mm 1000Mm Long

Screw PT Type K-50 X 16

Tubing 16 Mm 1000Mm Long

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Quick Disconnect

Quick Disconnect

Quick Disconnect

Oetiker Clamp

Hose 6.35Mm 5000Mm Long

Not Available As Spare Parts

Y-Fitting

Hose 6.35Mm 5000Mm Long

Not Available As Spare Parts

Oetiker Clamp

Check Valve

Check Valve This part replaces 275500087.

Hose 6.35Mm 5000Mm Long

Not Available As Spare Parts

Oetiker Clamp

Y-Fitting

Oetiker Clamp

Formed Hose

Oetiker Clamp

Air Filter

Oetiker Clamp

Formed Hose

Crimp Clamp

Charcoal Canister This part replaces 709001294.

Charcoal Canister Support

Tridon Clamp

Hex. Elastic Stop Nut M6

Charcoal Canister Support

Torx Screw M6 X 20

Oetiker Clamp

Charcoal Canister Hose

Crimp Clamp, 15.3-706R

Fuel Filter

Crimp Clamp, 15.3-706R

Charcoal Canister Hose

Crimp Clamp, 15.3-706R

Purge Valve

Crimp Clamp, 15.3-706R

Formed Charcoal Canister Hose

Crimp Clamp

Check Valve

Crimp Clamp

Hose

Crimp Clamp

Flow Reducer

Crimp Clamp, 15.3-706R

Formed Hose

Tubing 16 Mm 1000Mm Long
