07- Body - Rear Section

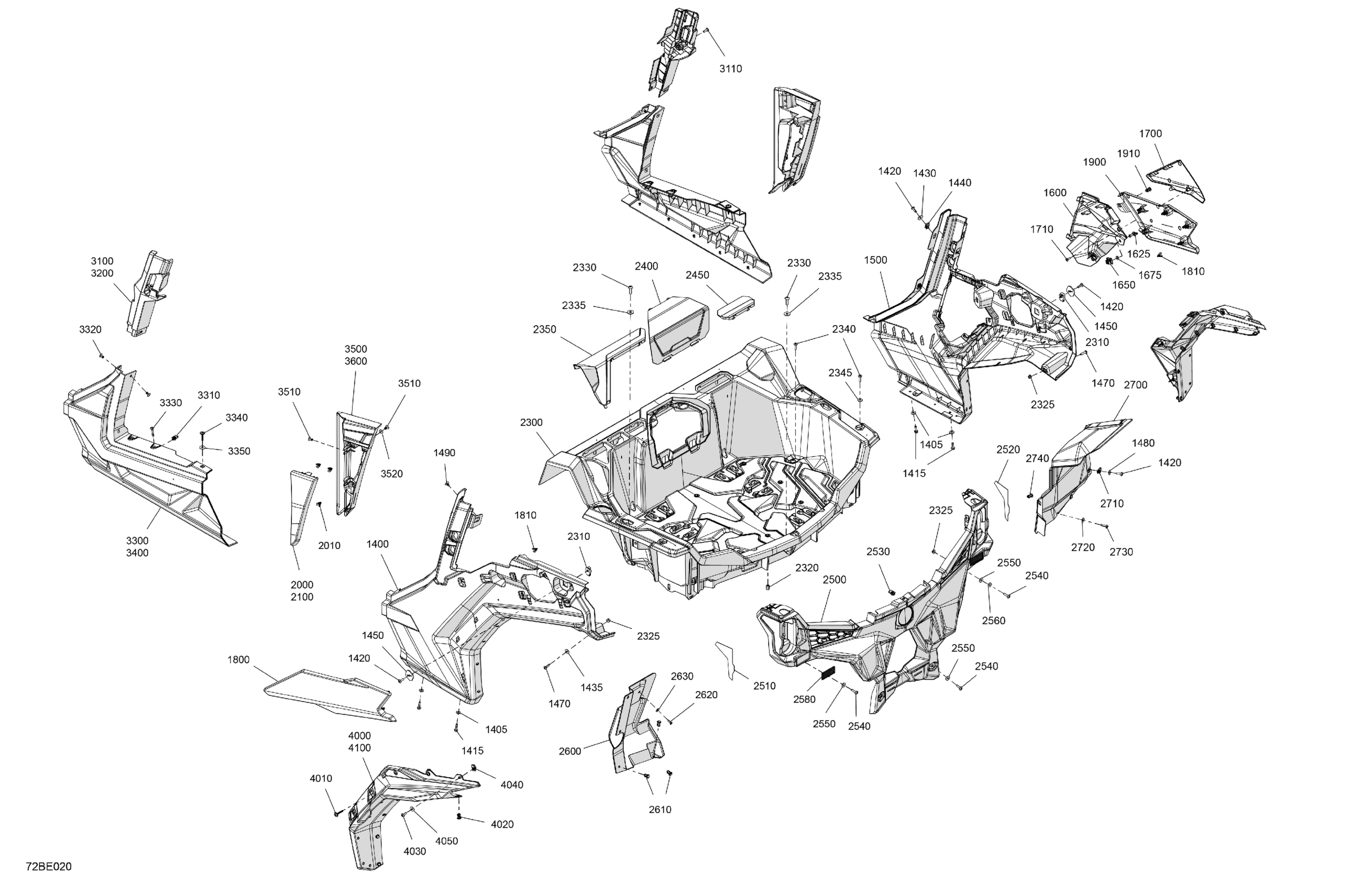

Can-Am North America - Maverick Sport Max - 1000R EFI - DPS - 9JSB - Timeless Black Metallic - 60" Width, 2025 07- Body - Rear Section Diagram
#
1400
LH Rear Panel
705011335
Unavailable
1405
Washer
503192494
Unavailable
1415
Hex. Flange Screw M6 X 25
207662554
Unavailable
1420
Torx Screw M6 X 20
250000722
Unavailable
1430
Flat Washer M6.6 X 22
250200162
Unavailable
1435
Stainless Steel Flat Washer
234062670
Unavailable
1440
Panel Nut M6 X 1.0
250100198
Unavailable
1450
Support Plate
705003841
Unavailable
1470
Torx Truss Screw M6 X 25
250000807
Unavailable
1480
Stainless Steel Flat Washer
234062670
Unavailable
1490
Black, Dart
414644300
Unavailable
1500
RH Rear Panel
705011336
Unavailable
1600
Air Filter Acces Door
705011338
Unavailable
1625
Quarter Turn
708400278
Unavailable
1650
Clip
708400285
Unavailable
1675
Washer
708400286
Unavailable
1700
Timeless Black, Acces Panel Trim
705015587
Unavailable
1710
Torx Screw K50 X 16
250000720
Unavailable
1800
Timeless Black, LH Open Carrier Trim
705015592
Unavailable
1810
Clip
517306478
Unavailable
1900
Timeless Black, RH Open Carrier Trim
705015597
Unavailable
1910
Tuflok Plastic Rivet
293150230
Unavailable
2000
Timeless Black, LH Rear Panel Trim
705015602
Unavailable
2010
Clip
517306478
Unavailable
2100
Timeless Black, RH Rear Panel Trim
705015603
Unavailable
2300
Rear Box
705016885
Unavailable
2310
Panel Nut M6 X 1.0
250100224
Unavailable
2320
Hex. Coupling Nut M6
250100207
Unavailable
2325
Hex. Elastic Flange Nut M6
233161464
Unavailable
2330
Hex Torx Truss M8 X30
250000745
Unavailable
2335
Stainless Steel Flat Washer
234082670
Unavailable
2340
Torx Truss Screw M6 X 25
250000807
Unavailable
2345
Stainless Steel Flat Washer
234062670
Unavailable
2350
CVT Air Inlet Cover
705011339
Unavailable
2400
Access Cover Kit
715010283
Unavailable
2450
Air Intake Cover
705011340
Unavailable
2500
Rear Fascia
705016944
Unavailable
2510
LH Rear Reflector
704906815
Unavailable
2520
RH Rear Reflector
704906816
Unavailable
2530
Panel Nut M6 X 1.0
250100198
Unavailable
2540
Torx Truss Screw M6 X 25
250000807
Unavailable
2550
Stainless Steel Flat Washer
234062670
Unavailable
2560
Stainless Steel Flat Washer
234062670
Unavailable
2580
Red Reflector
520001820
Unavailable
2600
LH Rear Wheel Arch Protector
705015886
Unavailable
2610
Tuflok Plastic Rivet
293150230
Unavailable
2620
Torx Screw K50 X 16
250000720
Unavailable
2630
Washer M5
250200025
Unavailable
2700
RH Rear Wheel Arch Protector
705016135
Unavailable
2710
Panel Nut M6 X 1.0
250100198
Unavailable
2720
Stainless Steel Flat Washer
234062670
Unavailable
2730
Torx Truss Screw M6 X 25
250000807
Unavailable
2740
Tuflok Plastic Rivet
293150230
Unavailable
3100
LH Median Side Panel
705011430
Unavailable
3110
Torx Screw M6 X 20
250000722
Unavailable
3200
RH Median Side Panel
705011431
Unavailable
3300
LH Rear Rocker Panel
705013190
Unavailable
3310
Panel Nut M6 X 1.0
250100198
Unavailable
3320
Pop Rivet 3/16”
293150108
Unavailable
3330
Torx Truss Hex. Screw M6X35, Nylon Patch
250000867
Unavailable
3340
Torx Truss Screw Head PT.K50 X 40
250000840
Unavailable
3350
Flat Washer M6.6 X 22
250200162
Unavailable
3400
RH Rear Rocker Panel
705013191
Unavailable
3500
LH Rear Fixed Panel
705013140
Unavailable
3510
Pop Rivet 3/16”
293150108
Unavailable
3520
Washer M5
250200025
Unavailable
3600
RH Rear Fixed Panel
705013141
Unavailable
4000
LH Rear Mud Guard
705019030
Unavailable
4010
Torx Truss Screw Head PT.K50 X 40
250000840
Unavailable
4020
Tuflok Plastic Rivet
293150230
Unavailable
4030
Torx Screw M6 X 20
250000722
Unavailable
4040
Panel Nut M6 X 1.0
250100198
Unavailable
4050
Stainless Steel Flat Washer
234062670
Unavailable
4100
RH Rear Mud Guard
705019031
Unavailable
