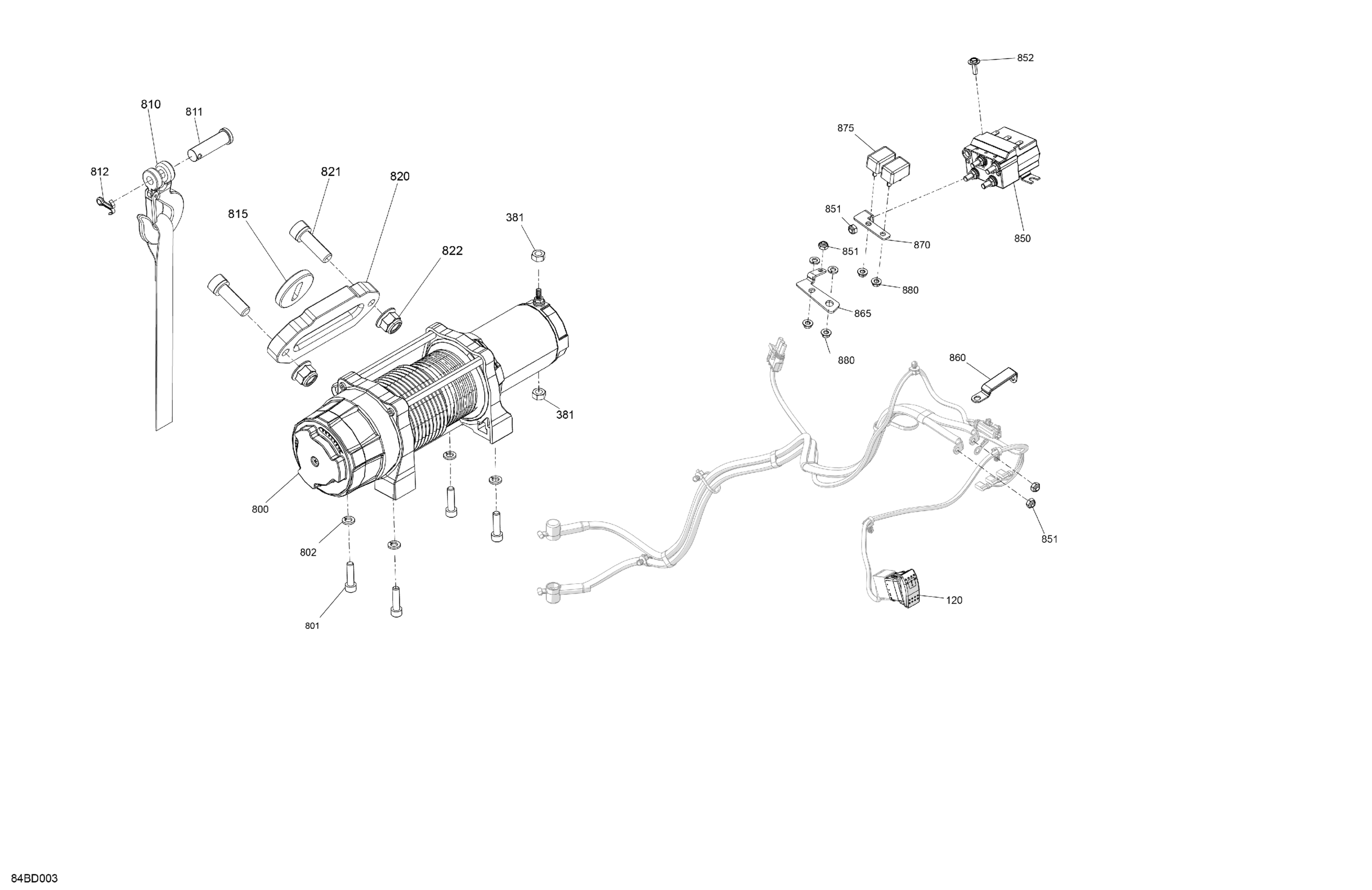

Can-Am Maverick Sport 1000R - XRC - 7BRB - Hybrid White Pearl - 64" Width, 2024 Electric - Winch Diagram

Description

Price

Elastic Stop Nut M6, Brass

232561200

$4.23

120

Switch Winch

710002052

$28.49

381

Elastic Stop Nut M6, Brass

232561200

$4.23

800

Electric Winch

710006990

$763.49

800a

WINCH DECAL 4500S - Call your local BRP dealership | Not Shown

704908222

Unavailable

801

Socket Head Screw M8 X 25

205082544

$1.15

802

Lock Washer 8 mm

234181401

$0.92

810

Winch Hook Kit

705014949

$24.99

811

Winch Hook Kit

705014949

$24.99

812

Winch Hook Kit

705014949

$24.99

815

Stopper

710007028

$3.82

820

Winch Rope Guide Kit

715006426

$61.49

821

Socket Screw M10 x 30 | XT

205003044

$3.17

822

Hex. Flange Elastic Nut M10

233201414

$1.58

850

Solenoid

710006991

$62.49

851

Elastic Stop Nut M6, Brass

232561200

$4.23

852

Screw PT Type K-50 X 16

250000959

$2.11

860

Power Bar

710004772

$12.16

865

Power Bar

710004872

$12.16

870

Power Bar

710004873

$12.16

875

Circuit Breaker 50 Amp

710007039

$19.49

880

Flange Elastic Nut M5

233251434

$2.00
