Description

Price

10

English Operator Guide

219002314

Unavailable

20

Tool Kit | Includes 20 to 20h

704700179

$70.99

20c

Socket Wrench 14/16MM

529000085

$6.55

20g

Screw Driver

529000021

$3.29

20h

Torx Key T30

708200340

$1.28

35

Adjustment Wrench

529000057

$4.29

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

130

Amber Reflector

705017809

$14.49

140

Elastic Flange Nut M5

233251494

$2.11

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

220

Emblem Logo BRP

705017645

$12.99

230

Screw M4 X 16

250000725

$3.49

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100198

$2.11

540

Screw PT Type K-50 X 16

250000959

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

Hybrid White Pearl, LH Front Fender

705018121

$204.99

710

Torx Truss Screw M6 X 16

250000721

$1.69

730

Panel Nut M6 X 1.0

250100198

$2.11

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

Hybrid White Pearl, RH Front Fender

705018122

$409.99

900

Removable Hood

705011322

$109.99

910

Clip

517306478

$1.09

930

Torx Truss Screw M6 X 25

250000807

$2.11

940

Bushing

705502616

$10.49

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1070

Tuflok Plastic Rivet

293150230

$1.47

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1085

Stainless Steel Flat Washer

234062670

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

1200

LH Front Rocker Panel

705019024

$79.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

1220

Pop Rivet 3/16”

293150101

$2.09

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

1250

Flat Washer M6.6 X 22

250200162

$2.32

1300

RH Front Rocker Panel

705019025

$79.99

1410

Hex. Flange Screw M6 X 25

207662554

$1.48

3800

LH Front Mud Guard

705019029

$56.99

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

3820

Tuflok Plastic Rivet

293150230

$1.47

3900

RH Front Mud Guard

705019028

$13.77

7400

Deep Black, LH Rock Slider

705017324

$87.99

7410

Pop Rivet 3/16”

293150101

$2.09

7500

Deep Black, RH Rock Slider

705017325

$87.99

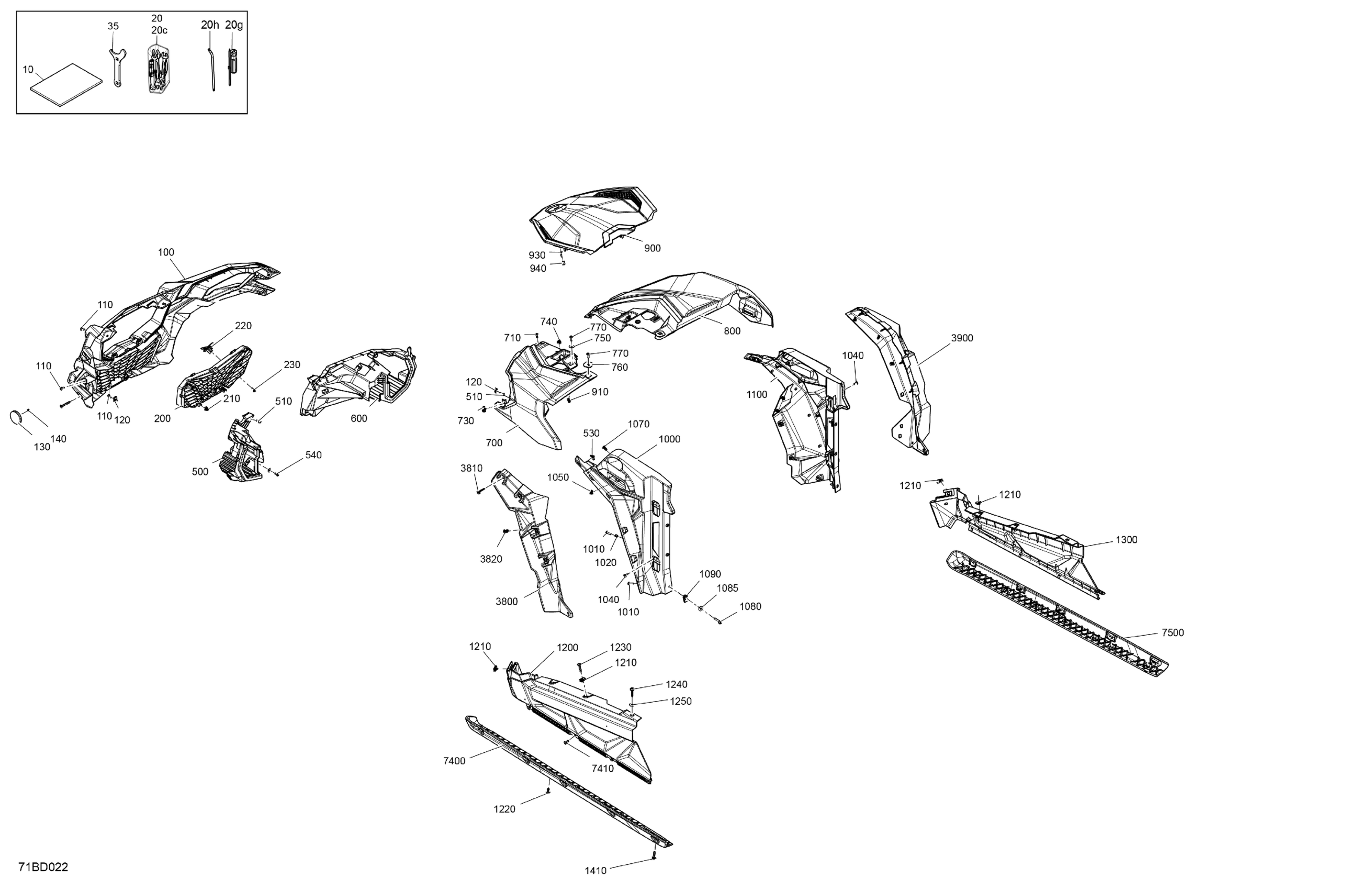

Can-Am Maverick Sport 1000R - XRC - 7BRB - Hybrid White Pearl - 64" Width, 2024 Body - Front Section Diagram

English Operator Guide

Tool Kit | Includes 20 to 20h

Socket Wrench 14/16MM

Screw Driver

Torx Key T30

Adjustment Wrench

Front Fascia

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Amber Reflector

Elastic Flange Nut M5

Fascia Removable Grid

Clip

Emblem Logo BRP

Screw M4 X 16

LH Headlamp Structure

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Screw PT Type K-50 X 16

RH Headlamp Structure

Hybrid White Pearl, LH Front Fender

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Clip

Flat Washer M6.6 X 22

Support Plate

Torx Screw M6 X 20

Hybrid White Pearl, RH Front Fender

Removable Hood

Clip

Torx Truss Screw M6 X 25

Bushing

LH Front Mudguard

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Torx Truss Screw M6 X 16

Clip

Tuflok Plastic Rivet

Torx Truss Hex. Screw M6X35, Nylon Patch

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

RH Front Mudguard

LH Front Rocker Panel

Panel Nut M6 X 1.0

Pop Rivet 3/16”

Torx Truss Hex. Screw M6X35, Nylon Patch

Torx Truss Screw Head PT.K50 X 40

Flat Washer M6.6 X 22

RH Front Rocker Panel

Hex. Flange Screw M6 X 25

LH Front Mud Guard

Torx Truss Screw Head PT.K50 X 40

Tuflok Plastic Rivet

RH Front Mud Guard

Deep Black, LH Rock Slider

Pop Rivet 3/16”

Deep Black, RH Rock Slider
