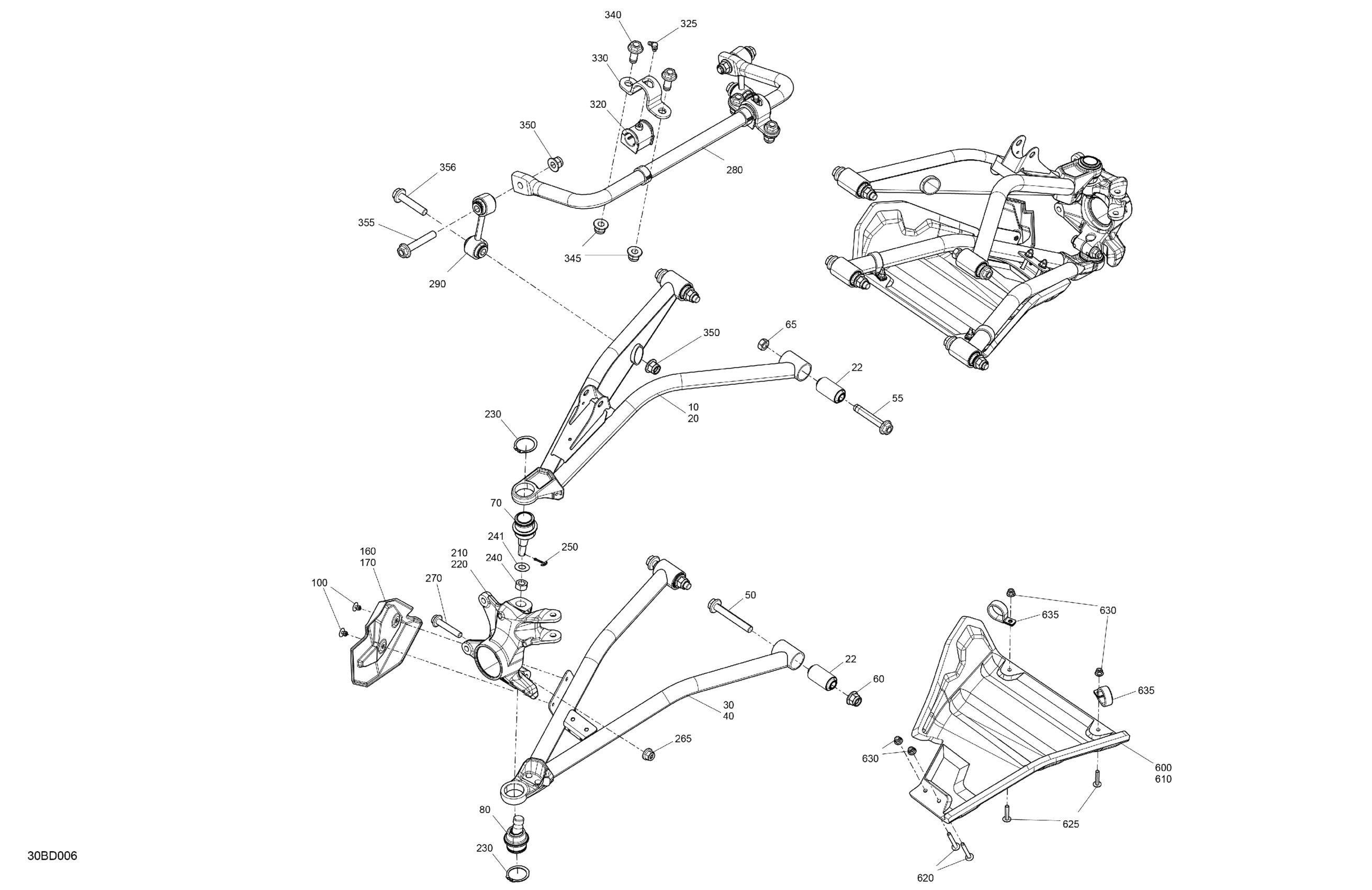

Can-Am Maverick Sport 1000R - XRC - 7BRB - Hybrid White Pearl - 64" Width, 2024 Suspension - Front Components Diagram

Legion Red, LH Upper Suspension Arm Balljoint Bushing Ass'y | Includes 10 to 10a This part replaces 706205728.

715010752

$284.99

Legion Red, RH Upper Suspension Arm Balljoint Bushing Ass'y | Includes 20 to 20a This part replaces 706205729.

715010761

$284.99

Suspension Arm Bushing

706004828

$3.79

Deep Black, LH Lower Suspension Arm Balljoint Bushing Ass'y | Includes 30 to 30a This part replaces 706205730.

715010768

$279.99

Deep Black, RH Lower Suspension Arm Balljoint Bushing Ass'y | Includes 40 to 40a This part replaces 706205731.

715010775

$279.99

Hex. Flange Screw M12X1.75X85

250001168

$3.38

Hex. Flange Screw M12X1.75X85

250001168

$3.38

Elastic Flange Nut M12

250001195

$2.64

Elastic Flange Nut M12

250001195

$2.64

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

RH CV joint Guard

706202135

$11.01

LH CV joint Guard

706202134

$11.01

LH Front Knuckle

706202842

$211.99

RH Front Knuckle

706202844

$211.99

Circlip

293370035

$2.64

Hex Nut M12

250100239

$2.00

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 55

207605546

$2.11

Sway Bar Ass'y

706203649

$126.99

Sway Bar Double Link

706202937

$111.49

Stabilizer Bar Bushing

706204414

$8.43

Grease Fitting 90°

293550056

$1.15

Clamp

706203437

$14.81

Hex. Flange Screw DIN.6921

250000951

$7.17

Elastic Flange Nut M12

250001195

$2.64

Elastic Flange Nut M12

250001195

$2.64

Hex. Flange Screw M12 X 70

250000858

$3.80

Flange Screw M12 X 60

250000857

$7.41

LH A-Arm Protector

706203566

$132.49

RH A-Arm Protector

706203567

$132.49

Torx Truss Screw M6 X 50

250000749

$3.17

Stainless, Torx Screw M6 X 30

250000842

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Open Clamp

293750064

$5.89
