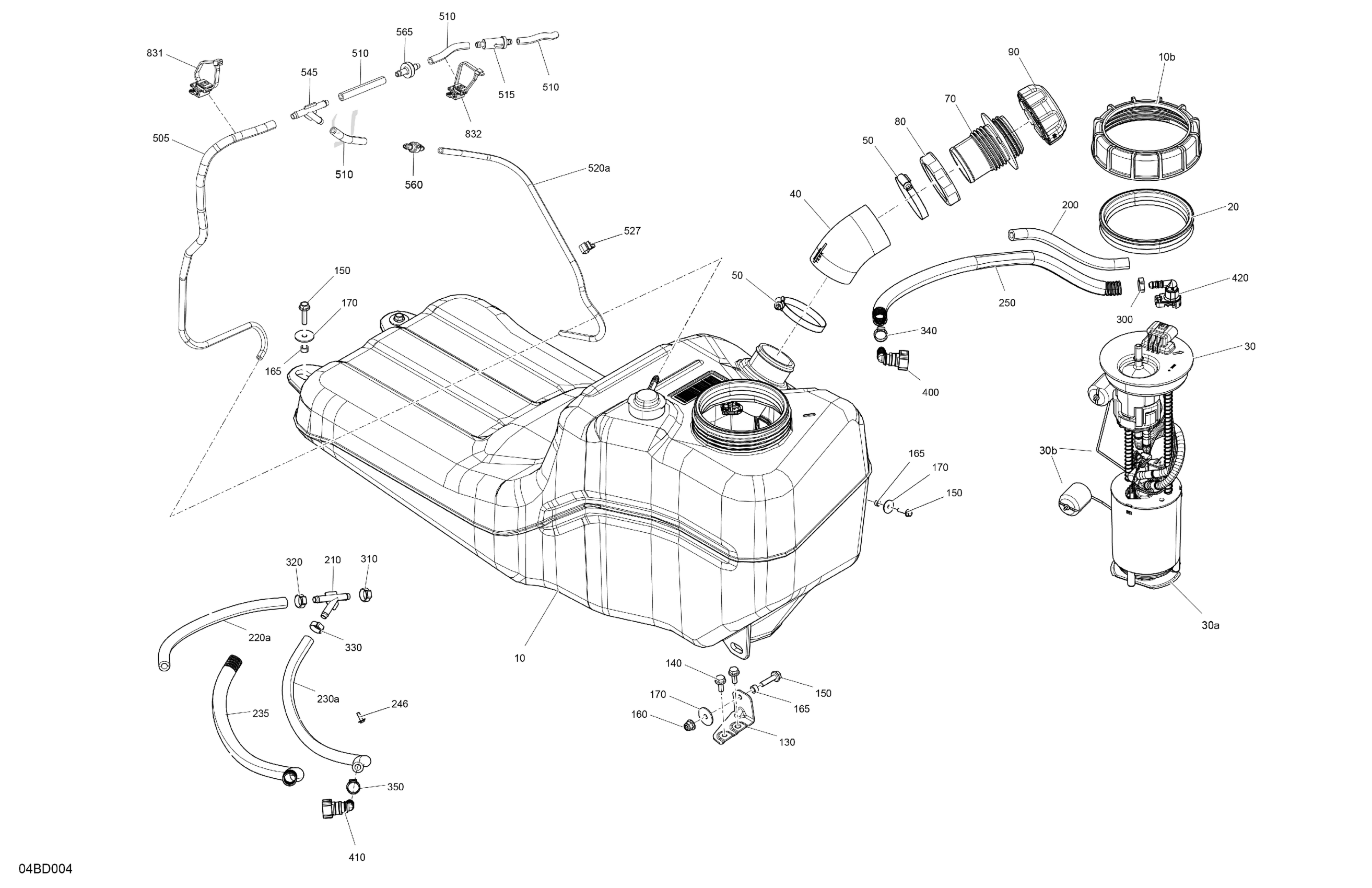

Can-Am Maverick Sport 1000R - XRC - 7BRB - Hybrid White Pearl - 64" Width, 2024 Engine - Fuel Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$429.99

10b

Special Nut M130

250100062

$21.99

Gasket

293250173

$18.49

Fuel Pump | Includes 30 to 30b

709001056

$372.49

30a

Fuel Filter

270600113

$33.99

30b

Fuel Sender

715900424

$144.99

Fil Neck Hose

709000828

$31.99

Norma Clamp

293650081

$12.18

Filler Neck

709000867

$15.36

Fuel Filler Neck Nut

293600206

$13.18

Fuel Cap

709000868

$32.99

130

Fuel Tank Support

709001453

$5.79

140

Hex. Flange Screw M6 X 16

207661644

$0.74

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$2.00

165

Spacer

293900135

$1.15

170

Washer M6

250200029

$2.50

200

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

210

Y Fitting

709001329

$11.59

220a

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

230a

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

235

Tubing 16 Mm 1000Mm Long

219704408

$7.49

246

Screw PT Type K-50 X 16

250000959

$2.11

250

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp

293650053

$3.09

310

Crimp Clamp

293650053

$3.09

320

Crimp Clamp

293650053

$3.09

330

Crimp Clamp

293650053

$3.09

340

Crimp Clamp

293650053

$3.09

350

Crimp Clamp

293650053

$3.09

400

Quick Disconnect

275500921

$16.49

410

Quick Disconnect

275500921

$16.49

420

Quick Disconnect

275500921

$16.49

505

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

510

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

515

Filter

709001120

$8.05

520a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

527

Tie Rap Mount (screwable)

515176795

$5.39

545

Y-Fitting

293710059

$9.69

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

831

Tie Wrap

293750108

$7.83

832

Tie Wrap

293750108

$7.83
