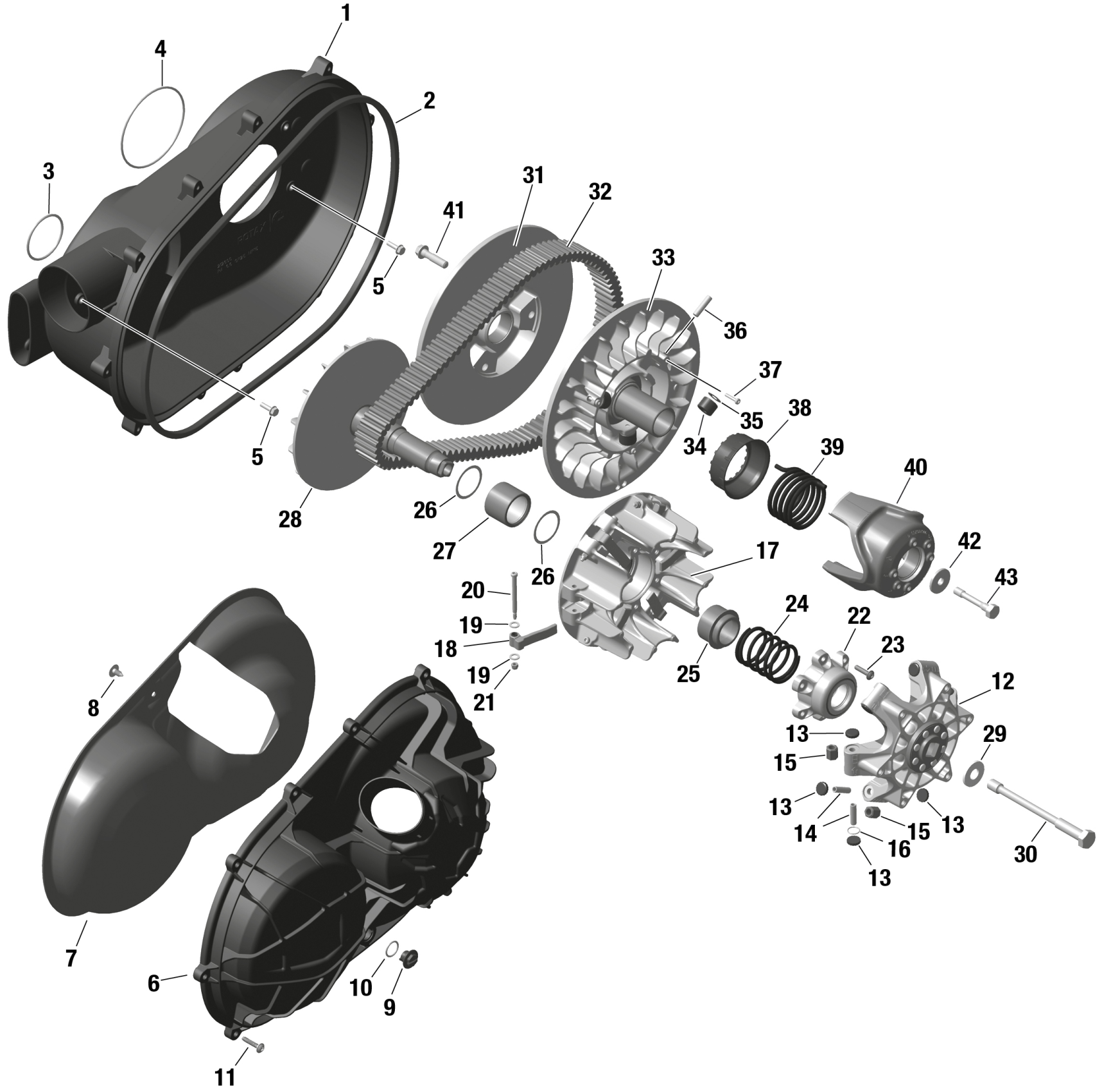

Can-Am Maverick Sport 1000R - XMR - 6FRA - Hyper Silver - 64" Width, 2024 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420212604

$224.99

2

Gasket

420450400

$31.99

3

O-Ring | Included in gasket kit

420430409

$5.29

4

O-Ring

420450431

$5.29

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212711

$249.99

7

Heat Protector

420897388

$53.99

8

Trim Button

420651816

$1.04

9

Cap

420441820

$11.63

10

O-Ring

420250052

$10.43

11

Torx Screw 6X30

420441575

$3.06

12

Governor Cup Ass'y

420280727

$439.99

13

Slider Shoe Set

420281296

$65.49

14

Roller Axle

417223257

$6.99

15

Roller Thrust

420229991

$19.99

16

O-Ring

420230456

$2.09

17

Outer Half Ass'y

420280608

$296.99

18

Lever Set | Includes 18 to 21

420248663

$439.99

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Bearing Cover

420280616

$69.99

23

Torx Flange Screw M6 X 25

420841549

$2.00

24

Compression Spring

420638119

$35.99

25

Spring Retainer

420427211

$46.49

26

Washer

420427220

$4.86

27

Needle Roller Bearing With Sleeves

420832351

$49.99

28

Inner Half Ass'y

420280597

$328.49

29

Washer

420245690

$4.86

30

Hexagonal Screw M14X 165

420841161

$29.49

31

Sliding Pulley Ass'y

420280636

$349.99

32

Drive Belt

422280656

$174.99

33

Outer Half Pulley Ass'y

420280626

$349.99

34

Pulley Roller

417127016

$24.49

35

Thrust Washer

420227946

$2.51

36

Bearing Pin

420629192

$16.34

37

Torx Screw M4 X 20

420841531

$2.09

38

Swivel Abutment

417127116

$9.39

39

Black, Return Spring

417127039

$46.49

40

Cam

420280755

$137.99

41

Torx Flange Screw M10 X 40

420841711

$2.09

42

Collar Washer

420427243

$16.40

43

Hexagonal Screw M10X 61

420441990

$19.49
