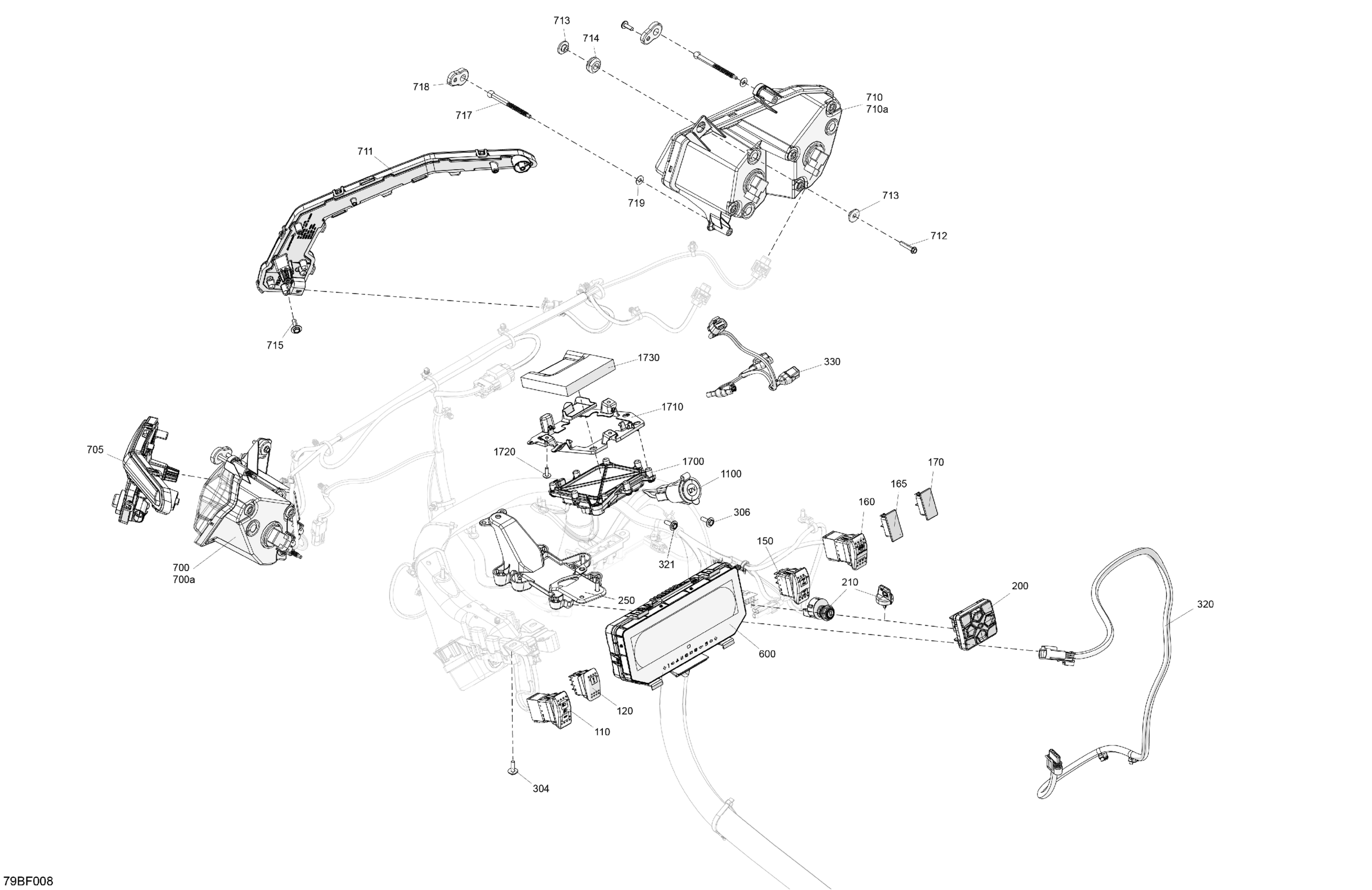

Can-Am Maverick Sport - 1000R EFI - XRC - 7BTB - Hybrid White Pearl - 64" Width, 2026 Electric - Front Section Diagram

Description

Price

110

Light Switch

710004492

$46.12

120

Switch Winch

710002052

$28.92

150

Differential Switch

710006040

$32.28

160

Differential Mode Switch

710006558

$23.05

165

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

200

Multifonction Switch

710006650

$87.66

205

Specialized Nut

710007923

$2.05

210

Ignition Switch | Includes 210 to 210b

710007324

$62.69

250

Housing Support

710005672

$8.05

304

Screw PT Type K-50 X 16

250000959

$1.74

306

Screw PT Type K-50 X 16

250000959

$1.74

320

Trottle Pedal Harness

710005929

$226.12

321

Screw PT Type K-50 X 16

250000959

$1.74

330

Front Differential Wiring Harness

710006807

$46.12

600

MID Multifunction Gauge

710008295

$355.35

700

LH Headlamp | Includes 700 to 700a

710008230

$189.20

700a

Bulb 12V 55W

715900141

$41.51

705

LH Signature Beam

710004994

$161.51

710

RH Headlamp | Includes 710 to 710a

710008231

$189.20

710a

Bulb 12V 55W

715900141

$41.51

711

RH Signature Beam

710004995

$161.51

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

$2.75

714

Overmolded Grommet

293720130

$4.38

715

Screw PT Type K-50 X 16

250000959

$1.74

717

Ajustment Screw

710005837

$6.45

718

Ball Socket

293900157

$8.45

719

O-Ring

293300192

$3.85

1100

12V Power Outlet

710005374

$27.27

1700

Differential Module

710008842

$447.66

1710

FDM Support

710006104

$7.60

1720

Screw PT Type K-50 X 16

250000959

$1.74

1730

Protector Foam

710006580

$15.22
