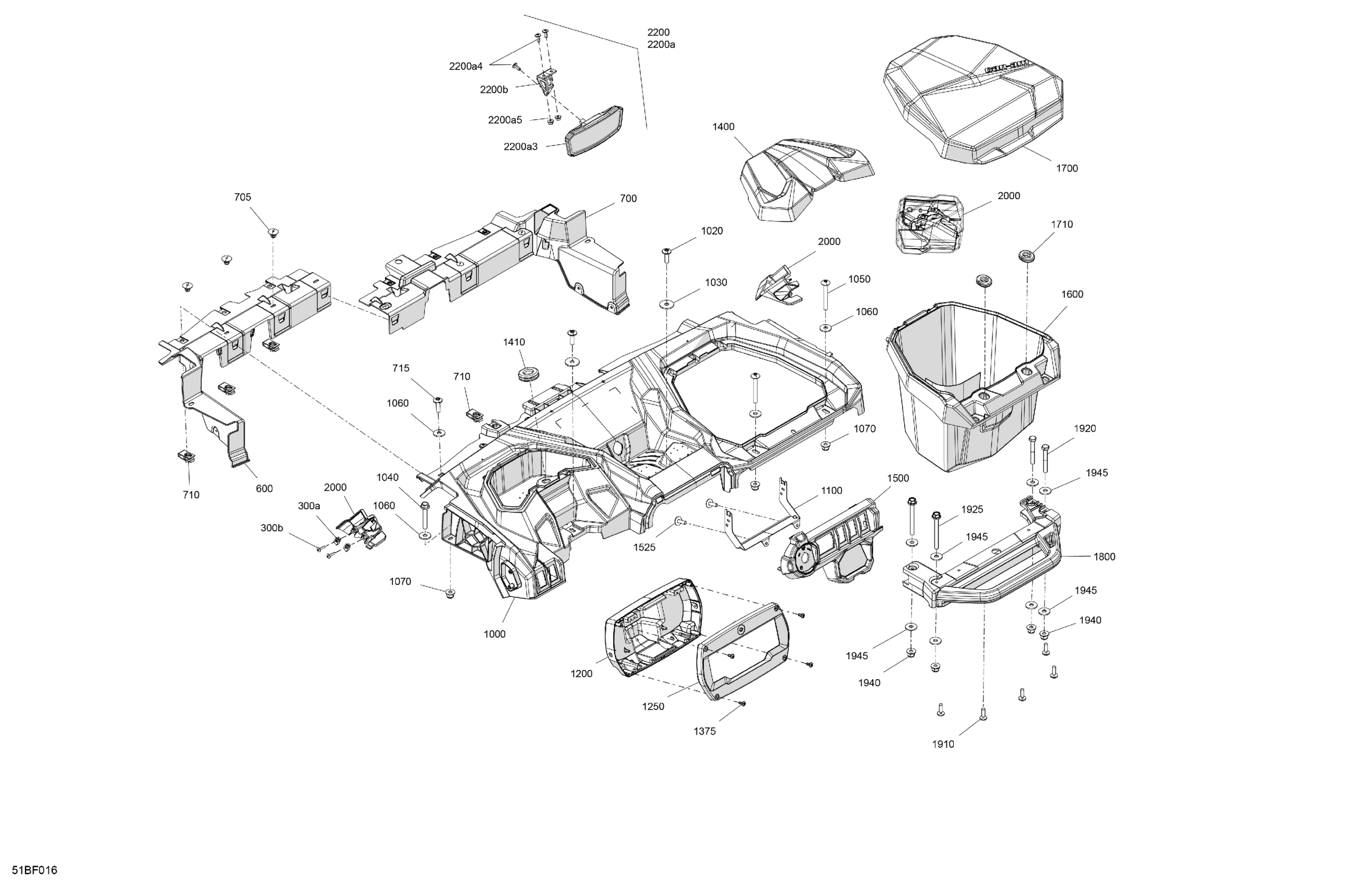

Can-Am Maverick Sport - 1000R EFI - XRC - 7BTB - Hybrid White Pearl - 64" Width, 2026 Cab Interior - Dashboard Diagram

Description

Price

300a

Panel Nut M5 X 0.8

250000958

$4.23

300b

Torx Screw M5 X 20

250000724

$1.69

600

LH Upper Front Bulkhead

707900513

$18.99

700

RH Upper Front Bulkhead

707900514

$18.99

705

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

710

Panel Nut M6 X 1.0

250100198

$2.11

715

Torx Screw M6 X 20

250000722

$1.68

1000

Dashboard Kit

715008528

$204.99

1020

Torx Screw M6 X 20

250000722

$1.68

1030

Flat Washer M6.6 X 22

250200162

$2.32

1040

Hex. Flange Screw M6 X 40

207664044

$2.22

1050

Torx Truss Screw M6 X 50

250000749

$3.17

1060

Stainless Steel Flat Washer

234062670

$2.11

1070

Hex. Flange Elastic Nut M6

233261466

$2.00

1100

Dash Support

707900941

$9.79

1200

Rear Gauge Trim

709402490

$22.49

1250

Front Gauge Trim

709402487

$22.49

1375

Torx Truss Screw K40 X 12

250000577

$2.11

1400

Storage Cover

707900522

$16.49

1410

Grommet

517303756

$4.09

1500

Switch Support

707900876

$18.54

1525

Screw PT Type K-50 X 16

250000959

$2.11

1600

Glove Box

715005011

$57.99

1700

Glove Box Cover

715005009

$53.99

1710

Oblong Grommet

707900663

$2.79

1800

Passenger Handle Bar Kit

707900559

$34.99

1910

Torx Screw K50 X 16

250000720

$1.69

1920

Hex. Screw M6 X 45

207064544

$2.11

1925

Hex. Flange Screw M6 X 60

250000778

$4.44

1940

Hex. Flange Elastic Nut M6

233261466

$2.00

1945

Stainless Steel Flat Washer

234062670

$2.11

2000

Front Cage Trim Kit

707901021

$28.99

2200

Center Mirror Kit | Except Package XMR

715004924

$106.49

2200a

Central Rear View Mirror Kit | Includes 2200a to 2200a5 But NOT 2200b

715009470

$106.49

2200a3

Central Mirror

707900502

$56.99

2200a4

Torx Truss Screw M6 X 16

250000721

$1.69

2200a5

Hex. Elastic Flange Nut M6

233161464

$1.01

2200b

Mirror Support | NOT Included in 2200a

707901225

$68.99
