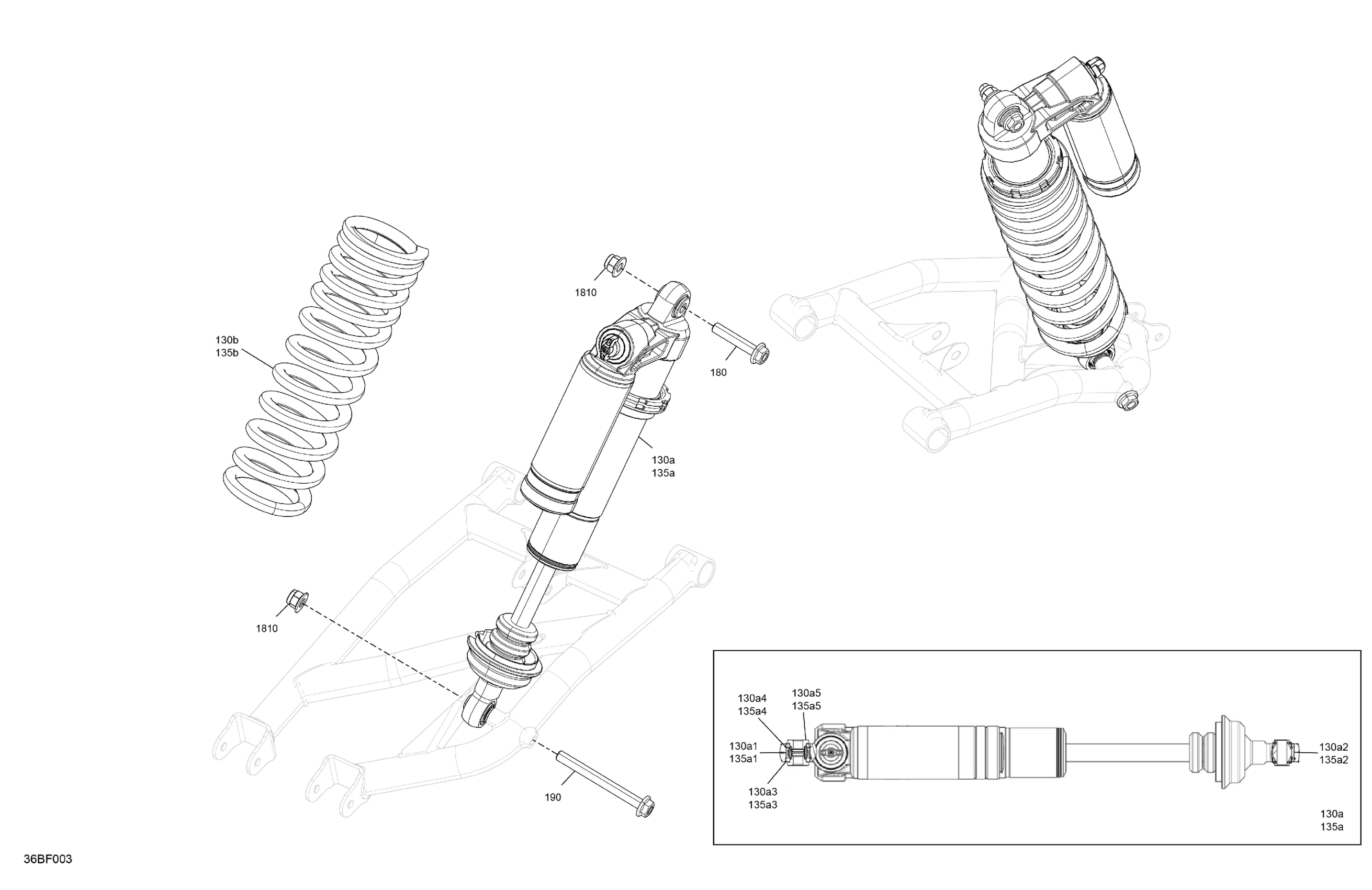

Can-Am Maverick Sport - 1000R EFI - XRC - 7BTB - Hybrid White Pearl - 64" Width, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Shock | Includes 130a to 130a5

706003181

$729.97

130a1

Spherical Bearing

715900337

$80.74

130a2

Ball Joint

706004078

$45.12

130a3

O-Ring Bushing

715900338

$10.98

130a4

Circlip

715900480

$11.06

130a5

Reducer

715900481

$27.66

130b

Deep Black, Compression Spring

706005165

$115.35

135a

Rear Shock | Includes 130a to 130a5

706003181

$729.97

135a1

Spherical Bearing

715900337

$80.74

135a2

Ball Joint

706004078

$45.12

135a3

O-Ring Bushing

715900338

$10.98

135a4

Circlip

715900480

$11.06

135a5

Reducer

715900481

$27.66

135b

Deep Black, Compression Spring

706005165

$115.35

180

Flange Screw M12 X 60

250000857

$6.08

190

Screw Flange M12 X 115

250000860

$5.47

1810

Elastic Flange Nut M12

250001195

$2.15
