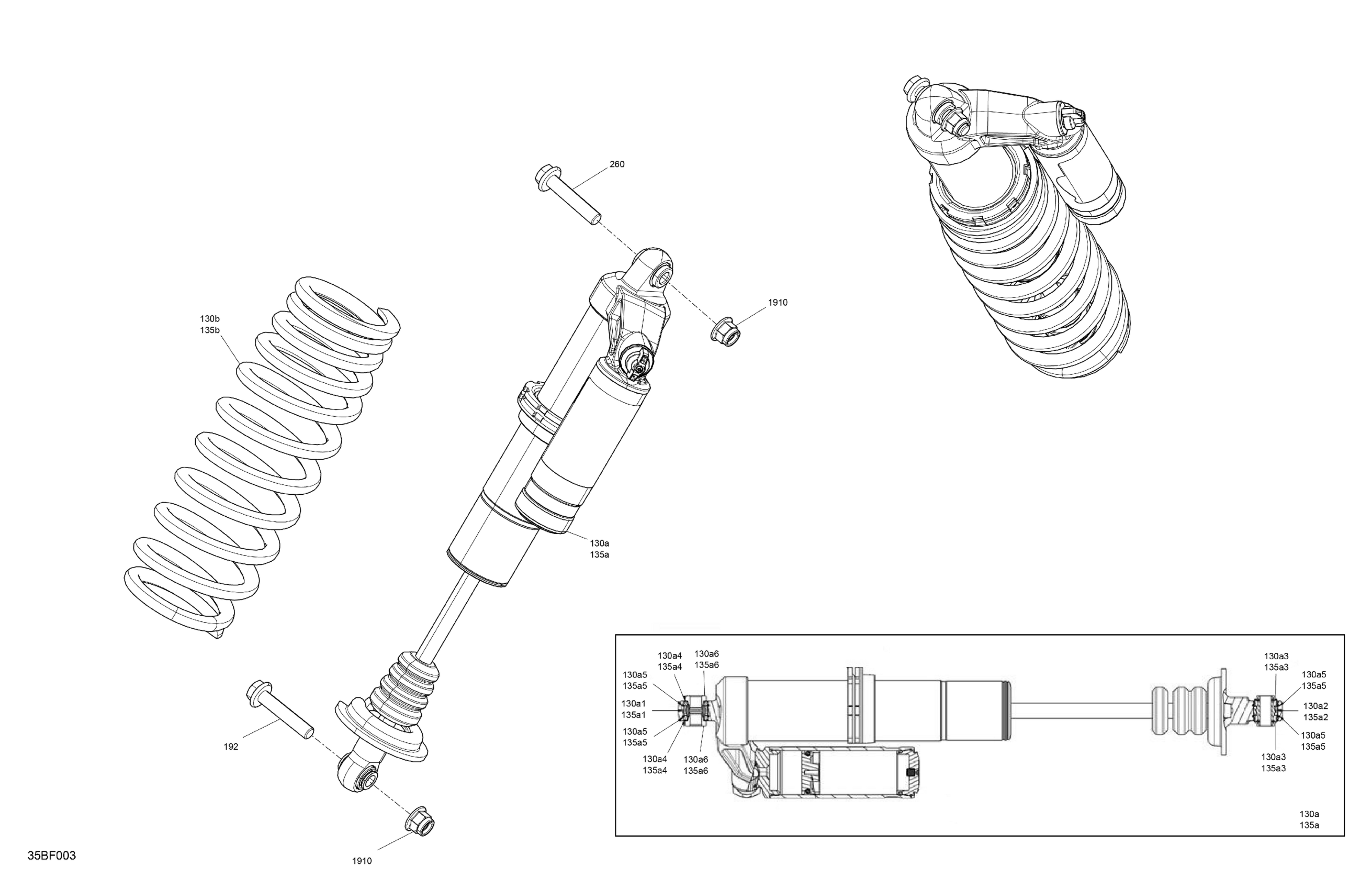

Can-Am Maverick Sport - 1000R EFI - XRC - 7BTB - Hybrid White Pearl - 64" Width, 2026 Suspension - Front Shocks Diagram

Description

Price

130a

LH Front Shock | Includes 130a to 130a6

706203352

$644.75

130a1

Spherical Bearing

715900329

$79.07

130a2

Spherical Bearing

715900330

$79.07

130a3

Protector

715900331

$12.49

130a4

O-Ring Bushing

715900268

$12.49

130a5

Retaining Ring

715900252

$10.24

130a6

Internal Bushing

715900267

$24.60

130b

Deep Black, Compression Spring

706205392

$134.30

135a

RH Front Shock | Includes 135a to 135a6

706203353

$821.61

135a1

Spherical Bearing

715900329

$79.07

135a2

Spherical Bearing

715900330

$79.07

135a3

Protector

715900331

$12.49

135a4

O-Ring Bushing

715900268

$12.49

135a5

Retaining Ring

715900252

$10.24

135a6

Internal Bushing

715900267

$24.60

135b

Deep Black, Compression Spring

706205392

$134.30

192

Flange Screw M12 X 60

250000857

$6.99

260

Flange Screw M12 X 60

250000857

$6.99

1910

Elastic Flange Nut M12

250001195

$2.46
