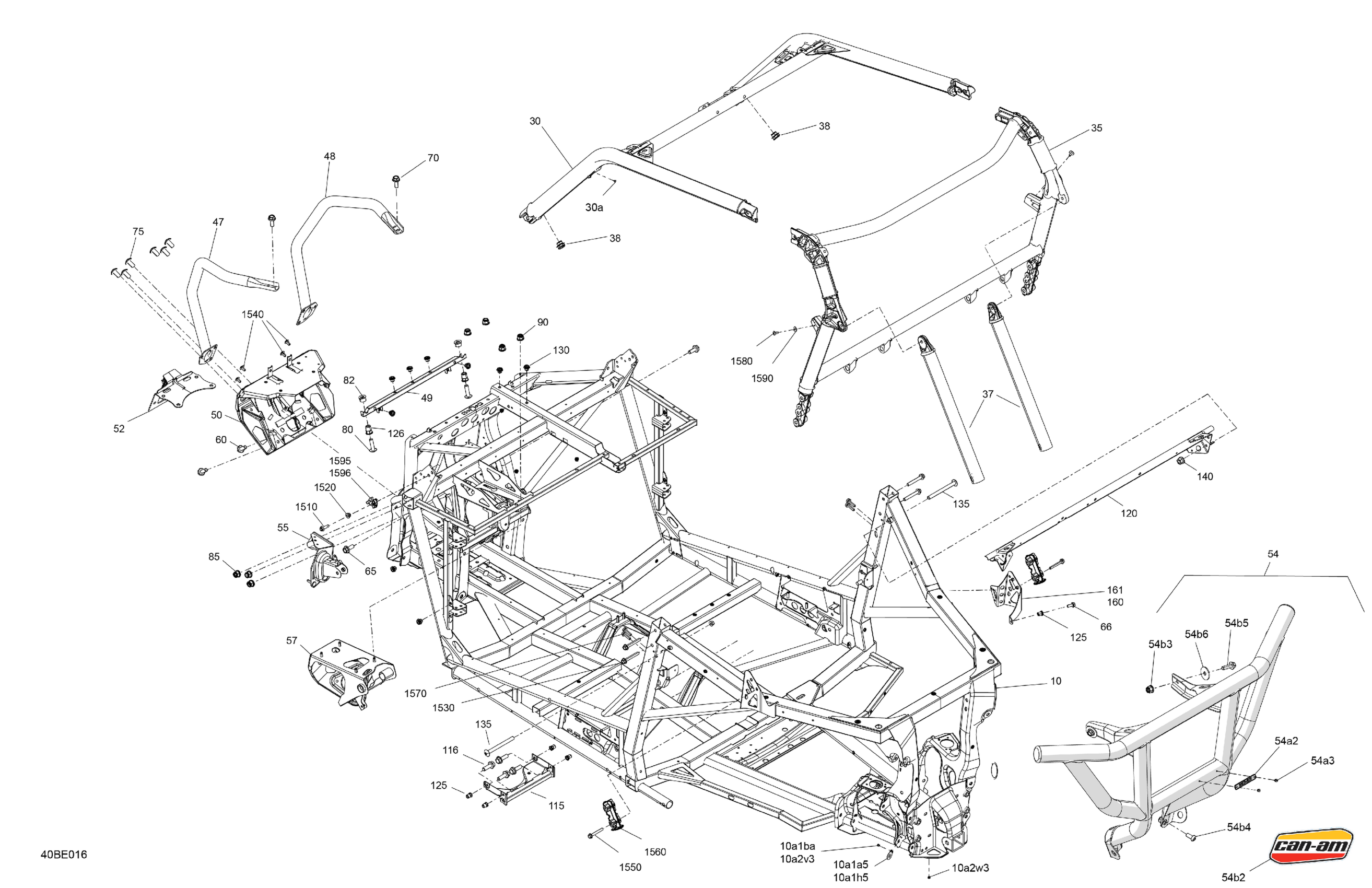

Can-Am North America - Maverick Sport - 1000R EFI - XRC - 7BSB - Hybrid White Pearl - 64" Width, 2025 06- Frame - System Diagram

#

Description
Price

10

Chassis Kit | Includes 10 to 10a2w3

715009394

Unavailable

10a1a5

Shim

705209479

Unavailable

10a1h5

Shim

705209479

Unavailable

10a1ba

Pop Rivet 3/16 X ,425

293150293

Unavailable

10a2v3

Pop Rivet 3/16 X ,425

293150293

Unavailable

10a2w3

Pop Rivet 3/16 X ,425

293150293

Unavailable

30

Legion Red, Front Cage Kit | Includes 30 to 30a

715010128

Unavailable

30a

Pop Rivet 3/16 X ,425

293150293

Unavailable

35

Legion Red, Front Cage Kit

715010132

Unavailable

37

Legion Red, Rear Cage Extension

705211532

Unavailable

38

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

47

Legion Red, LH Front Bumper

705211533

Unavailable

48

Legion Red, RH Front Bumper

705211534

Unavailable

49

Cross Member

705206313

Unavailable

50

Deep Black, Front Bumper

705209043

Unavailable

52

Front Anchorage Ass'y

705211909

Unavailable

54

Deep Black, Rear Bumper Kit | Includes 54 to 54b6

715007109

Unavailable

54a2

Can Am Logo

704902307

Unavailable

54a3

Pop Rivet 1/8", Black

293150189

Unavailable

54b2

Decal "Can-Am" | Not Shown

704904566

Unavailable

54b3

Hex. Elastic Flange Nut M8

229000122

Unavailable

54b4

Torx Truss M/S M8 X 20

229000057

Unavailable

54b5

Shoulder Screw HEX. M8 X 25

229000147

Unavailable

54b6

Flat Washer M8

229000148

Unavailable

55

Brake Support

705206217

Unavailable

57

DPS Support

705206294

Unavailable

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

75

Torx Truss Screw M8 X 16

250000746

Unavailable

80

Hex Torx Truss M8 X30

250000745

Unavailable

82

Bushing

705207229

Unavailable

85

Hex. Elastic Flange Nut M8

233281416

Unavailable

90

Hex. Elastic Flange Nut M8

233281416

Unavailable

115

Bearing Support

705211563

Unavailable

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

120

Central Tube

705209434

Unavailable

125

Insert Half Hex Body M8 x 1.25

293450307

Unavailable

126

Insert Half Hex Body M8 x 1.25

293450307

Unavailable

130

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

135

Torx Truss M8 X 90

250000806

Unavailable

140

Hex. Flange Nut

233081436

Unavailable

160

LH Rear Anchorage Support

705211569

Unavailable

161

RH Rear Anchorage Support

705211571

Unavailable

1510

Hex. Flange Screw M10 X 35

250000855

Unavailable

1520

Flange Elastic Nut M10

233201466

Unavailable

1530

Hex. Flange Screw M10 X 70

207607056

Unavailable

1540

Torx Truss Screw M8 X 16

250000746

Unavailable

1550

Hex. Flange Screw M8 x 60

207686044

Unavailable

1560

Sleeve

705210648

Unavailable

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

1580

Torx Head Screw M6 X 16

250000717

Unavailable

1590

Stainless Steel Flat Washer

234062670

Unavailable

1595

LH Front Anchorage

705209913

Unavailable

1596

RH Front Anchorage

705209914

Unavailable
