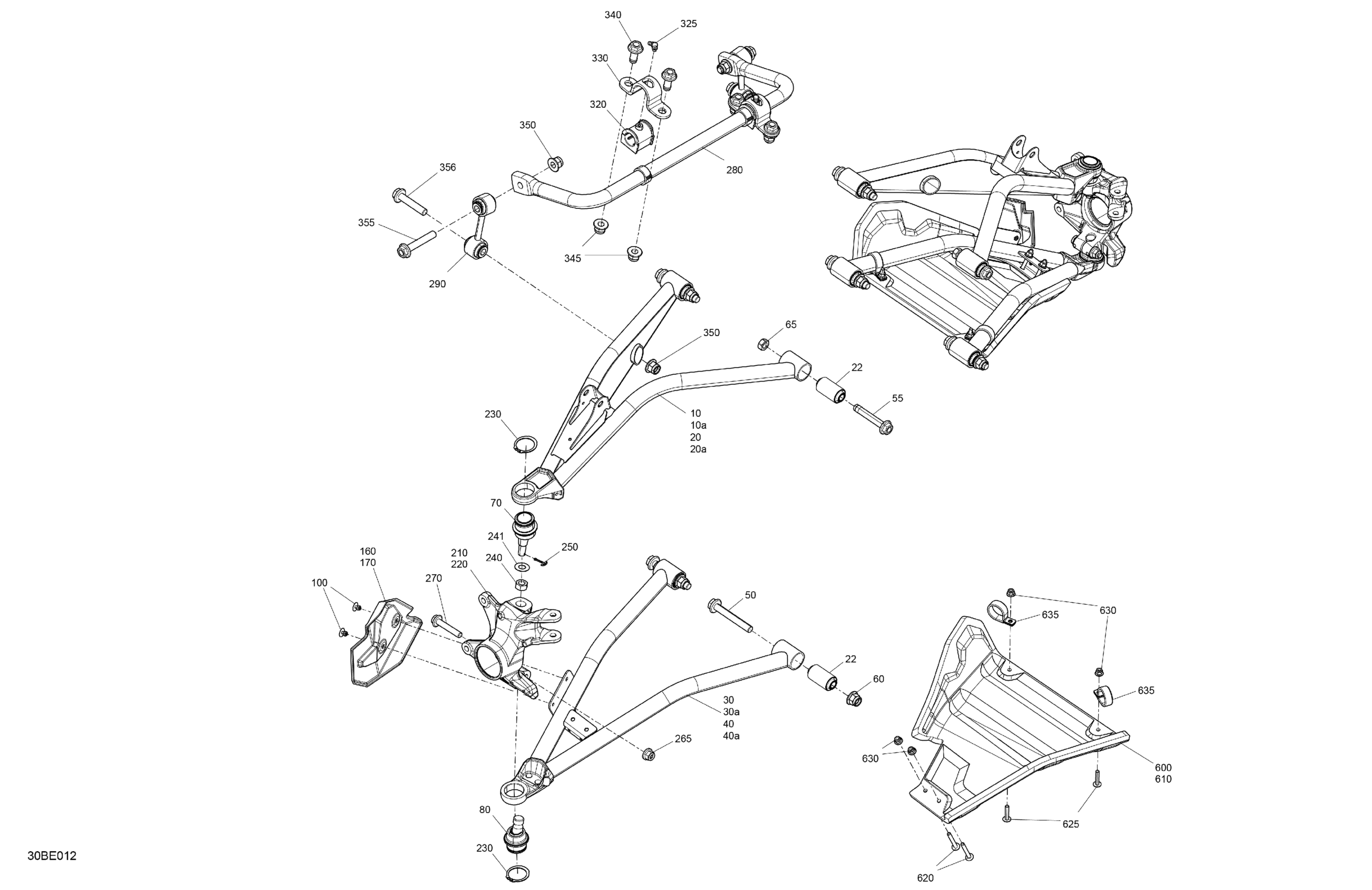

Can-Am Maverick Sport - 1000R EFI - XRC - 7BSB - Hybrid White Pearl - 64" Width, 2025 Suspension - Front Components Diagram

#

Description
Price

10

Legion Red, LH Upper Suspension Arm Balljoint Bushing Ass'y | Includes 10 to 10a This part replaces 706205728.

715010752

$267.66

10a

LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203896.

715010749

$263.05

20

Legion Red, RH Upper Suspension Arm Balljoint Bushing Ass'y | Includes 20 to 20a This part replaces 706205729.

715010761

$267.66

20a

RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203897.

715010758

$263.05

22

Suspension Arm Bushing

706004828

$9.22

30

Deep Black, LH Lower Suspension Arm Balljoint Bushing Ass'y | Includes 30 to 30a This part replaces 706205730.

715010768

$263.05

30a

LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203908.

715010767

$263.05

40

Deep Black, RH Lower Suspension Arm Balljoint Bushing Ass'y | Includes 40 to 40a This part replaces 706205731.

715010775

$263.05

40a

Deep Black, RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203909.

715010774

$263.05

50

Hex. Flange Screw M12X1.75X85

250001168

$2.80

55

Hex. Flange Screw M12X1.75X85

250001168

$2.80

60

Elastic Flange Nut M12

250001195

$2.15

65

Elastic Flange Nut M12

250001195

$2.15

70

Ball Joint

706203084

$35.35

80

Ball Joint

706202045

$35.35

100

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

160

RH CV joint Guard

706202135

$9.23

170

LH CV joint Guard

706202134

$9.23

210

LH Front Knuckle

706202842

$207.66

220

RH Front Knuckle

706202844

$207.66

230

Circlip

293370035

$2.55

240

Hex Nut M12

250100239

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

265

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Hex. Flange Screw M10 X 55

207605546

$1.74

280

Sway Bar Ass'y

706203649

$119.97

290

Sway Bar Double Link

706202937

$110.74

320

Stabilizer Bar Bushing

706204414

$9.22

325

Grease Elbow Fitting

293550085

$1.37

330

Clamp

706203437

$13.83

340

Hex. Flange Screw DIN.6921

250000951

$5.47

345

Elastic Flange Nut M12

250001195

$2.15

350

Elastic Flange Nut M12

250001195

$2.15

355

Hex. Flange Screw M12 X 70

250000858

$3.11

356

Flange Screw M12 X 60

250000857

$6.08

600

LH A-Arm Protector

706203566

$129.20

610

RH A-Arm Protector

706203567

$129.20

620

Torx Truss Screw M6 X 50

250000749

$3.11

625

Stainless, Torx Screw M6 X 30

250000842

$1.74

630

Hex. Flange Elastic Nut M6

233261494

$1.26

635

Open Clamp

293750064

$15.99
