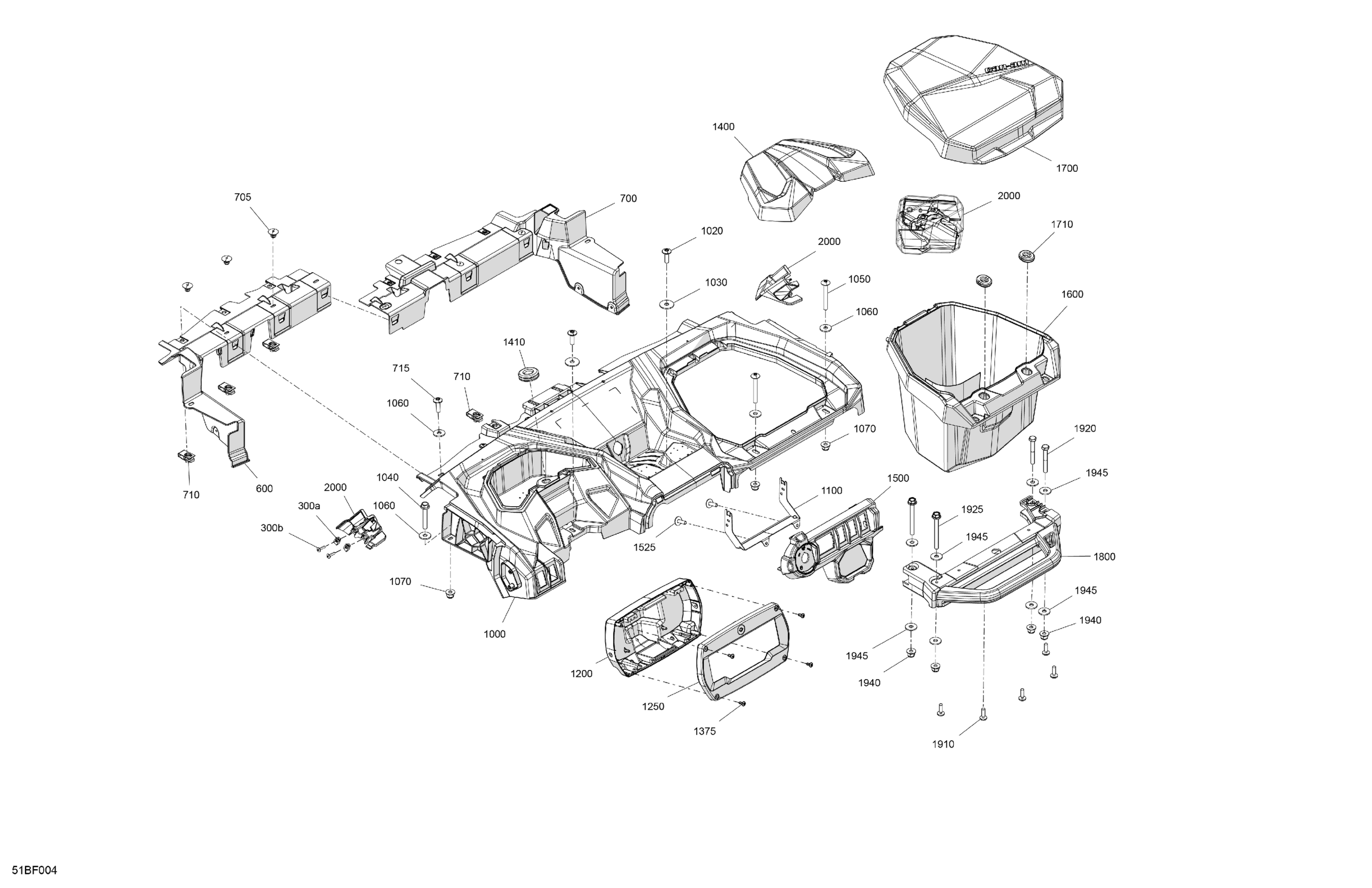

Can-Am Maverick Sport - 1000R EFI - XMR - 6FTA - Hyper Silver - 64" Width, 2026 Cab Interior - Dashboard Diagram

Description

Price

300a

Panel Nut M5 X 0.8

250000958

$3.48

300b

Torx Screw M5 X 20

250000724

$1.39

600

LH Upper Front Bulkhead

707900513

$16.12

700

RH Upper Front Bulkhead

707900514

$16.12

705

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

710

Panel Nut M6 X 1.0

250100198

$1.73

715

Torx Screw M6 X 20

250000722

$1.34

1000

Dashboard Kit

715008528

$193.82

1020

Torx Screw M6 X 20

250000722

$1.34

1030

Flat Washer M6.6 X 22

250200162

$1.91

1040

Hex. Flange Screw M6 X 40

207664044

$2.18

1050

Torx Truss Screw M6 X 50

250000749

$3.11

1060

Stainless Steel Flat Washer

234062670

$1.74

1070

Hex. Flange Elastic Nut M6

233261466

$1.66

1100

Dash Support

707900941

$7.69

1200

Rear Gauge Trim

709402490

$20.74

1250

Front Gauge Trim

709402487

$20.74

1375

Torx Truss Screw K40 X 12

250000577

$1.74

1400

Storage Cover

707900522

$13.52

1410

Grommet

517303756

$3.15

1500

Switch Support

707900876

$16.12

1525

Screw PT Type K-50 X 16

250000959

$1.74

1600

Glove Box

715005011

$55.35

1700

Glove Box Cover

715005009

$50.74

1710

Oblong Grommet

707900663

$1.79

1800

Passenger Handle Bar Kit

707900559

$32.28

1910

Torx Screw K50 X 16

250000720

$1.39

1920

Hex. Screw M6 X 45

207064544

$2.02

1925

Hex. Flange Screw M6 X 60

250000778

$3.61

1940

Hex. Flange Elastic Nut M6

233261466

$1.66

1945

Stainless Steel Flat Washer

234062670

$1.74

2000

Front Cage Trim Kit

707901021

$26.12
