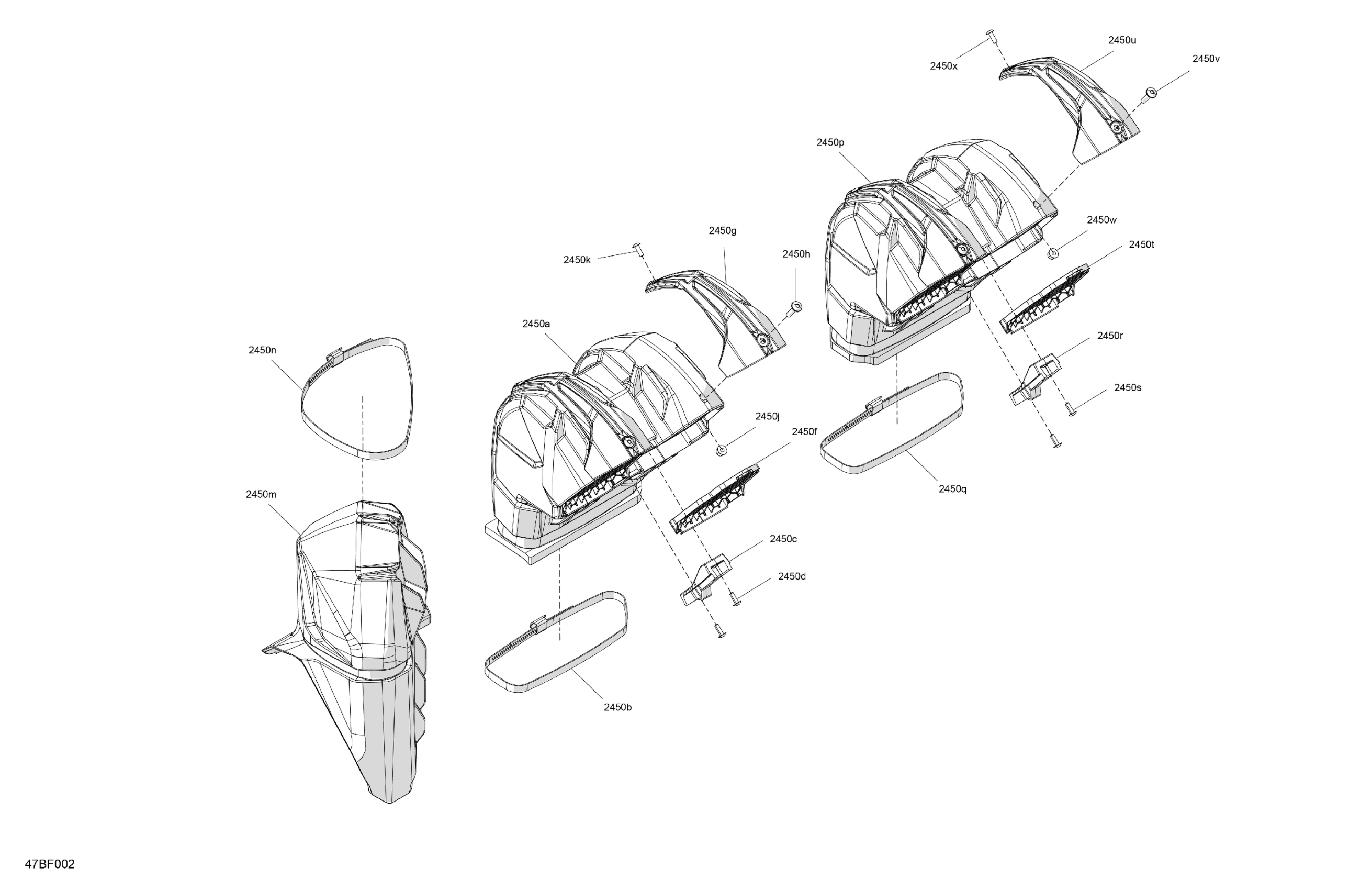

Can-Am Maverick Sport - 1000R EFI - XMR - 6FTA - Hyper Silver - 64" Width, 2026 Body - Snorkel Diagram

Description

Price

2450a

Air Inlet

706600271

$115.35

2450b

Clamp

293650275

$23.05

2450c

Jonction Grid

706600284

$2.75

2450d

Torx Truss Screw K40 X 12

250000577

$1.74

2450f

Grate

706600221

$23.05

2450g

Black, Cap

707001523

$6.45

2450h

Torx Screw M5 X 20

250000792

$1.74

2450j

Elastic Flange Nut M5

233251494

$1.74

2450k

Torx Truss Screw K40 X 12

250000577

$1.74

2450m

CVT Outlet

706600265

$69.20

2450n

Clamp

293650276

$23.05

2450p

Air Inlet

707800821

$115.35

2450q

Clamp

293650275

$23.05

2450r

Jonction Grid

706600284

$2.75

2450s

Torx Truss Screw K40 X 12

250000577

$1.74

2450t

Grate

706600221

$23.05

2450u

Black, Cap

707001523

$6.45

2450v

Torx Screw M5 X 20

250000792

$1.74

2450w

Elastic Flange Nut M5

233251494

$1.74

2450x

Torx Truss Screw K40 X 12

250000577

$1.74
