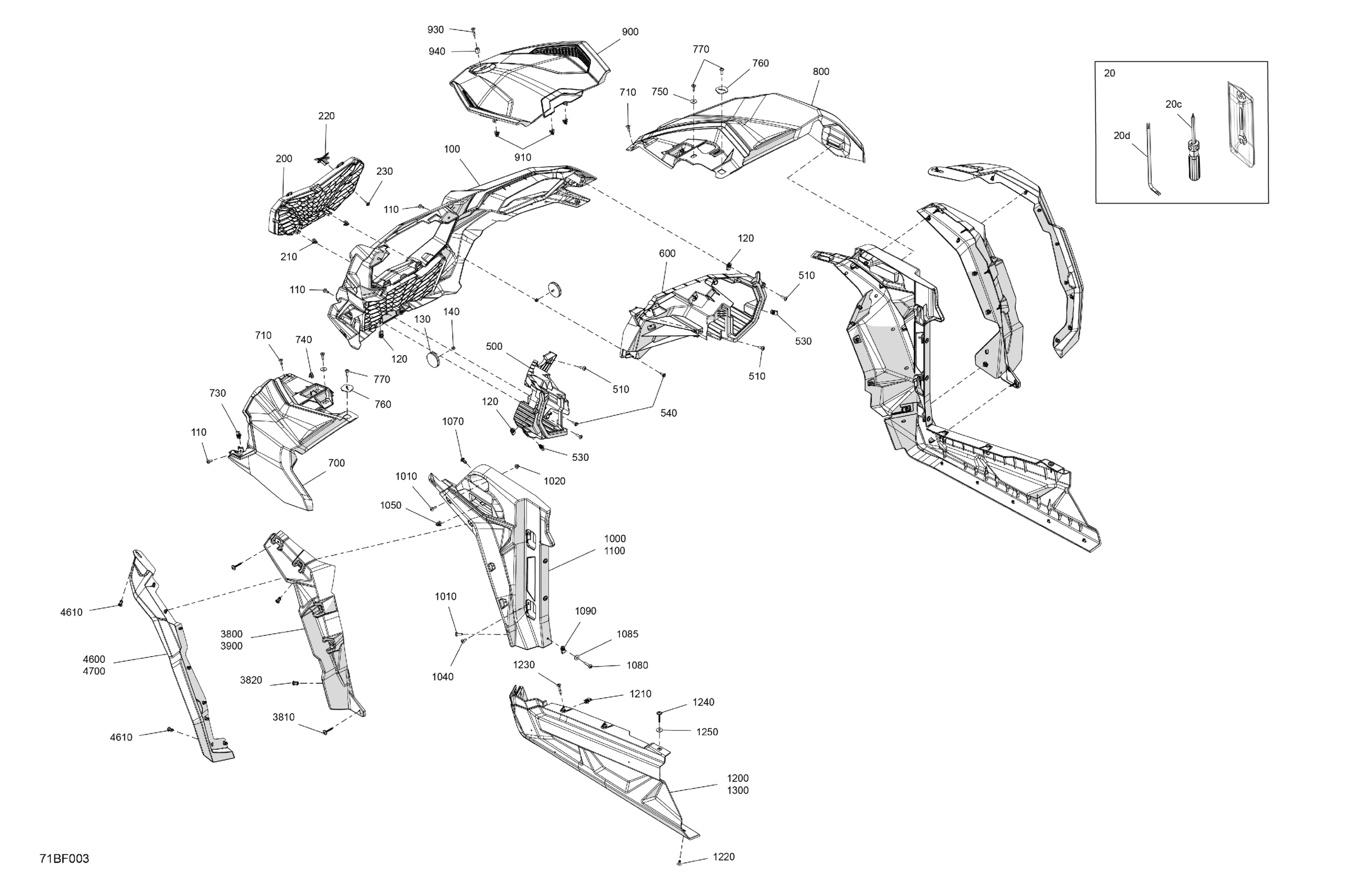

Can-Am Maverick Sport - 1000R EFI - XMR - 6FTA - Hyper Silver - 64" Width, 2026 Body - Front Section Diagram

#

Description
Price

20

Tool Kit | Includes 90 to 90f

704700182

$39.99

20c

Screw Driver

529000021

$3.19

20d

Torx Key T30

708200340

$8.94

100

Front Fascia

705011317

$241.01

110

Torx Truss Screw M6 X 16

250000721

$1.60

120

Panel Nut M6 X 1.0

250100198

$1.99

130

Amber Reflector

705017809

$11.96

140

Elastic Flange Nut M5

233251494

$2.00

200

Fascia Removable Grid

705011318

$196.99

210

Clip

517306478

$1.03

220

Emblem Logo BRP

705017645

$10.55

230

Screw M4 X 16

250000725

$3.30

500

LH Headlamp Structure

705011319

$206.69

510

Torx Screw M6 X 20

250000722

$1.54

530

Panel Nut M6 X 1.0

250100198

$1.99

540

Screw PT Type K-50 X 16

250000959

$2.00

600

RH Headlamp Structure

705011320

$206.69

700

Hyper Silver, LH Front Fender

705018114

$184.30

710

Torx Truss Screw M6 X 16

250000721

$1.60

730

Panel Nut M6 X 1.0

250100198

$1.99

740

Clip

517306478

$1.03

750

Flat Washer M6.6 X 22

250200162

$2.19

760

Support Plate

705003841

$0.91

770

Torx Screw M6 X 20

250000722

$1.54

800

Hyper Silver, RH Front Fender

705018115

$368.63

900

Removable Hood

705011322

$95.49

910

Clip

517306478

$1.03

930

Torx Truss Screw M6 X 25

250000807

$2.00

940

Bushing

705502616

$8.24

1000

LH Front Mudguard

705011323

$52.96

1010

Torx Screw M6 X 20

250000712

$2.00

1020

Hex. Flange Elastic Nut M6

233261494

$1.45

1040

Torx Truss Screw M6 X 16

250000721

$1.60

1050

Clip

517306478

$1.03

1070

Tuflok Plastic Rivet

293150230

$1.39

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

1085

Stainless Steel Flat Washer

234062670

$2.00

1090

Panel Nut M6 X 1.0

250100198

$1.99

1100

RH Front Mudguard

705011324

$52.96

1200

LH Front Rocker Panel

705019026

$71.61

1210

Panel Nut M6 X 1.0

250100198

$1.99

1220

Black, Ornit Rivet 3/16 X ,925 This part replaces 293150307.

293150307

$2.00

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

1250

Flat Washer M6.6 X 22

250200162

$2.19

1300

RH Front Rocker Panel

705019027

$71.61

3800

LH Front Mud Guard

705019029

$52.96

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

3820

Tuflok Plastic Rivet

293150230

$1.39

3900

RH Front Mud Guard

705019028

$12.75

4600

LH Front Fender Extender

705012762

$41.01

4610

Tuflok Plastic Rivet

293150230

$1.39

4700

RH Front Fender Extender

705012763

$22.36
