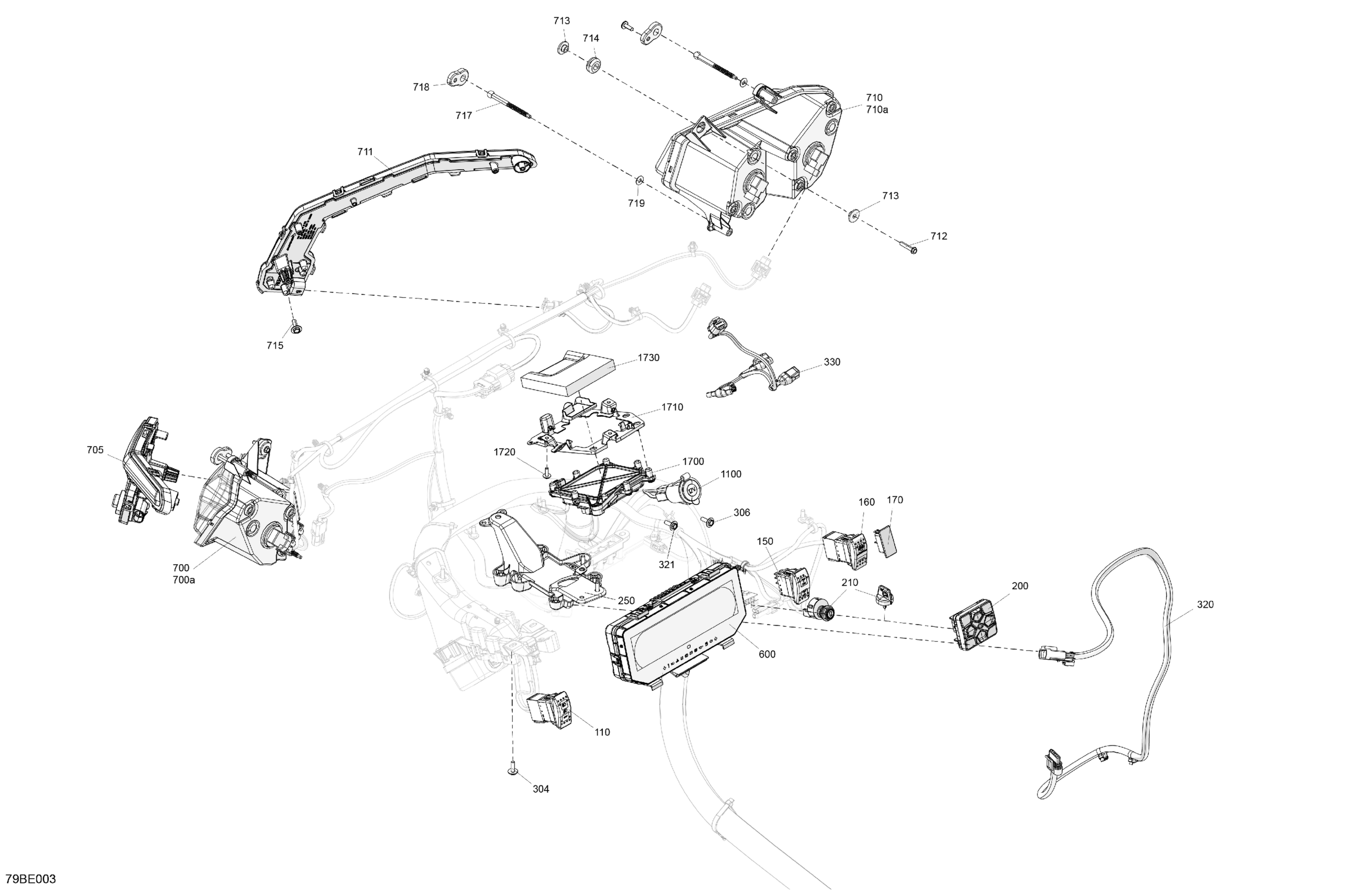

Can-Am Maverick Sport - 1000R EFI - XMR - 6FSA - Hyper Silver - 64" Width, 2025 Electric - Front Section Diagram

Description

Price

Elastic Stop Nut M6, Brass

232561200

$4.03

110

Light Switch

710004492

$44.00

150

Differential Switch

710006040

$29.82

160

Differential Mode Switch

710006559

$29.82

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

200

Multifonction Switch

710006650

$81.31

205

Specialized Nut

710007923

$1.99

210

Ignition Switch | Includes 210 to 210b

710007324

$61.16

250

Housing Support

710005672

$7.81

304

Screw PT Type K-50 X 16

250000959

$2.00

306

Screw PT Type K-50 X 16

250000959

$2.00

320

Trottle Pedal Harness

710005929

$211.91

321

Screw PT Type K-50 X 16

250000959

$2.00

330

Front Differential Wiring Harness

710006807

$44.75

600

MID Multifunction Gauge

710008295

$336.54

700

LH Headlamp | Includes 700 to 700a

710008230

$177.58

700a

Bulb 12V 55W

715900141

$38.78

705

LH Signature Beam

710004994

$151.46

710

RH Headlamp | Includes 710 to 710a

710008231

$177.58

710a

Bulb 12V 55W

715900141

$38.78

711

RH Signature Beam

710004995

$151.46

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

713

Shoulder Bushing

710004749

$2.69

714

Overmolded Grommet

293720130

$4.25

715

Screw PT Type K-50 X 16

250000959

$2.00

717

Ajustment Screw

710005837

$5.90

718

Ball Socket

293900157

$7.88

719

O-Ring

293300192

$3.81

1100

12V Power Outlet

710005374

$31.31

1700

Differential Module

710008842

$423.85

1710

FDM Support

710006104

$6.73

1720

Screw PT Type K-50 X 16

250000959

$2.00

1730

Protector Foam

710006580

$13.99
