07- Body - Front Section

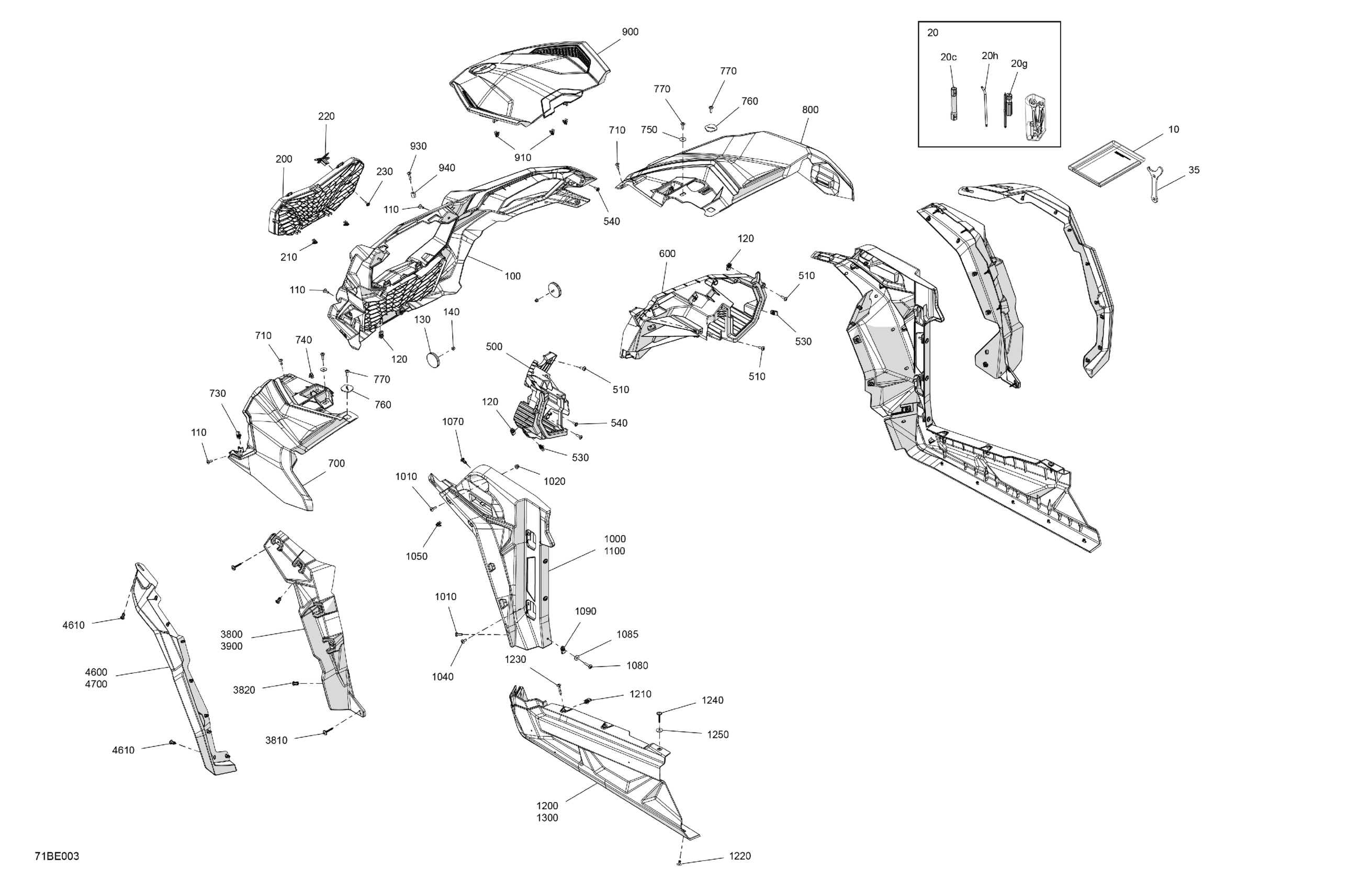

Can-Am North America - Maverick Sport - 1000R EFI - XMR - 6FSA - Hyper Silver - 64" Width, 2025 07- Body - Front Section Diagram
#
10
English Operator Guide
219002401
Unavailable
20
Tool Kit | Includes 20 to 20h
704700179
Unavailable
20c
Socket Wrench 14/16MM
529000085
Unavailable
20g
Screw Driver
529000021
Unavailable
20h
Torx Key T30
708200340
Unavailable
35
Adjustment Wrench
529000057
Unavailable
100
Front Fascia
705011317
Unavailable
110
Torx Truss Screw M6 X 16
250000721
Unavailable
120
Panel Nut M6 X 1.0
250100198
Unavailable
130
Amber Reflector
705017809
Unavailable
140
Elastic Flange Nut M5
233251494
Unavailable
200
Fascia Removable Grid
705011318
Unavailable
210
Clip
517306478
Unavailable
220
Emblem Logo BRP
705017645
Unavailable
230
Screw M4 X 16
250000725
Unavailable
500
LH Headlamp Structure
705011319
Unavailable
510
Torx Screw M6 X 20
250000722
Unavailable
530
Panel Nut M6 X 1.0
250100198
Unavailable
540
Screw PT Type K-50 X 16
250000959
Unavailable
600
RH Headlamp Structure
705011320
Unavailable
700
Hyper Silver, LH Front Fender
705018114
Unavailable
710
Torx Truss Screw M6 X 16
250000721
Unavailable
730
Panel Nut M6 X 1.0
250100198
Unavailable
740
Clip
517306478
Unavailable
750
Flat Washer M6.6 X 22
250200162
Unavailable
760
Support Plate
705003841
Unavailable
770
Torx Screw M6 X 20
250000722
Unavailable
800
Hyper Silver, RH Front Fender
705018115
Unavailable
900
Removable Hood
705011322
Unavailable
910
Clip
517306478
Unavailable
930
Torx Truss Screw M6 X 25
250000807
Unavailable
940
Bushing
705502616
Unavailable
1000
LH Front Mudguard
705011323
Unavailable
1010
Torx Screw M6 X 20
250000712
Unavailable
1020
Hex. Flange Elastic Nut M6
233261494
Unavailable
1040
Torx Truss Screw M6 X 16
250000721
Unavailable
1050
Clip
517306478
Unavailable
1070
Tuflok Plastic Rivet
293150230
Unavailable
1080
Torx Truss Hex. Screw M6X35, Nylon Patch
250000867
Unavailable
1085
Stainless Steel Flat Washer
234062670
Unavailable
1090
Panel Nut M6 X 1.0
250100198
Unavailable
1100
RH Front Mudguard
705011324
Unavailable
1200
LH Front Rocker Panel
705019026
Unavailable
1210
Panel Nut M6 X 1.0
250100198
Unavailable
1220
Pop Rivet 3/16”
293150101
Unavailable
1230
Torx Truss Hex. Screw M6X35, Nylon Patch
250000867
Unavailable
1240
Torx Truss Screw Head PT.K50 X 40
250000840
Unavailable
1250
Flat Washer M6.6 X 22
250200162
Unavailable
1300
RH Front Rocker Panel
705019027
Unavailable
3800
LH Front Mud Guard
705019029
Unavailable
3810
Torx Truss Screw Head PT.K50 X 40
250000840
Unavailable
3820
Tuflok Plastic Rivet
293150230
Unavailable
3900
RH Front Mud Guard
705019028
Unavailable
4600
LH Front Fender Extender
705012762
Unavailable
4610
Tuflok Plastic Rivet
293150230
Unavailable
4700
RH Front Fender Extender
705012763
Unavailable
