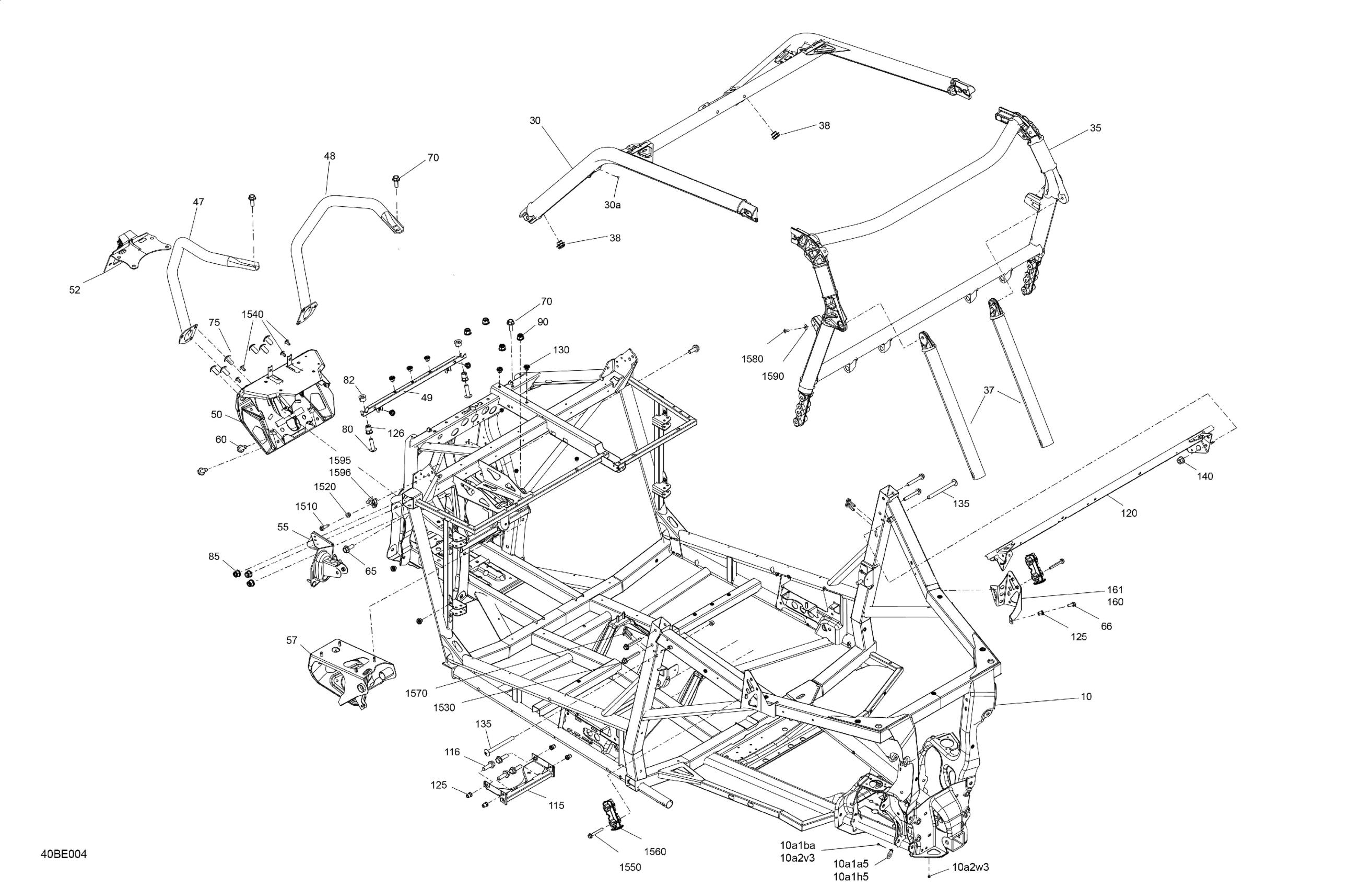

Can-Am Maverick Sport - 1000R EFI - XMR - 6FSA - Hyper Silver - 64" Width, 2025 Frame - System Diagram

#

Description
Price

10

Chassis Kit | Includes 10 to 10a2w3

715009394

$2,969.99

10a1a5

Shim

705209479

$3.05

10a1h5

Shim

705209479

$3.05

10a1ba

Pop Rivet 3/16 X ,425

293150293

$0.26

10a2v3

Pop Rivet 3/16 X ,425

293150293

$0.26

10a2w3

Pop Rivet 3/16 X ,425

293150293

$0.26

30

Hyper Silver, Front Cage Kit | Includes 30 to 30a

715010130

$609.99

30a

Pop Rivet 3/16 X ,425

293150293

$0.26

35

Hyper Silver, Rear Cage Kit

715010134

$619.99

37

Hyper Silver, Rear Cage Extension

705211129

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$2.54

47

Legion Red, LH Front Bumper

705211533

$110.74

48

Legion Red, RH Front Bumper

705211534

$110.74

49

Cross Member

705206313

$36.89

50

Deep Black, Front Bumper

705209043

$474.58

52

Front Anchorage Ass'y

705211909

Unavailable

55

Brake Support

705206217

$50.74

57

DPS Support

705206294

$66.12

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

75

Torx Truss Screw M8 X 16

250000746

$2.78

80

Hex Torx Truss M8 X30

250000745

$3.05

82

Bushing

705207229

$11.54

85

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

115

Bearing Support

705211563

$45.35

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

120

Central Tube

705209434

$146.89

125

Insert Half Hex Body M8 x 1.25

293450307

$2.03

126

Insert Half Hex Body M8 x 1.25

293450307

$2.03

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

140

Hex. Flange Nut

233081436

$1.63

160

LH Rear Anchorage Support

705211569

$18.43

161

RH Rear Anchorage Support

705211571

$18.43

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1540

Torx Truss Screw M8 X 16

250000746

$2.78

1550

Hex. Flange Screw M8 x 60

207686044

$2.56

1560

Sleeve

705210648

$9.29

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

1580

Torx Head Screw M6 X 16

250000717

$1.74

1590

Stainless Steel Flat Washer

234062670

$1.74

1595

LH Front Anchorage

705209913

$35.35

1596

RH Front Anchorage

705209914

$35.35
