Partiron

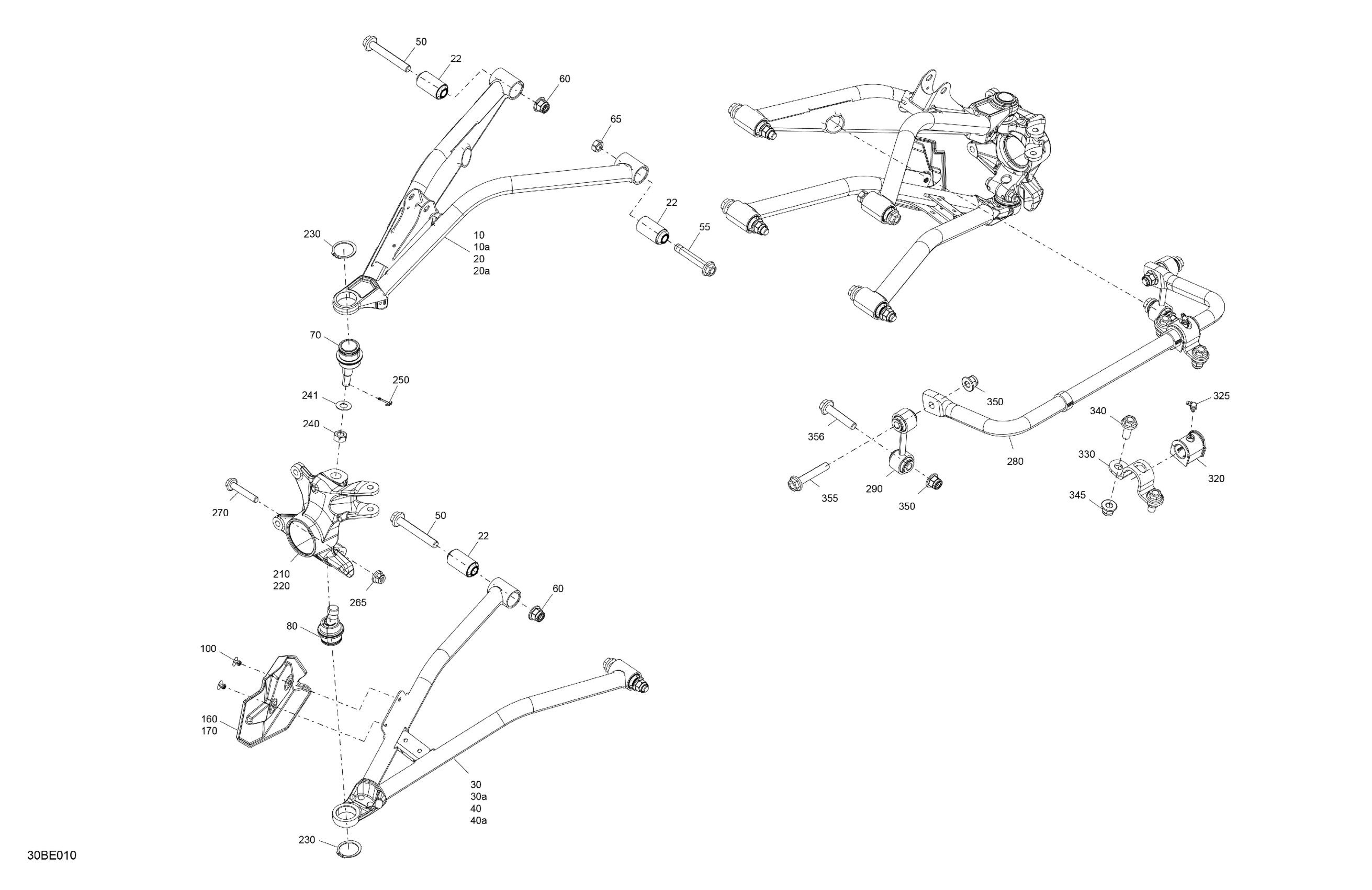

Can-Am Maverick Sport - 1000R EFI - XMR - 6FSA - Hyper Silver - 64" Width, 2025 Suspension - Front Components Diagram

#

Description
Price

10

Legion Red, LH Upper Suspension Arm Balljoint Bushing Ass'y | Includes 10 to 10a This part replaces 706205728.

715010752

$255.19

10a

LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203896.

715010749

$250.72

20

Legion Red, RH Upper Suspension Arm Balljoint Bushing Ass'y | Includes 20 to 20a This part replaces 706205729.

715010761

$255.19

20a

RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203897.

715010758

$250.72

22

Suspension Arm Bushing

706004828

$3.36

30

Legion Red, LH Lower Suspension Arm Balljoint Bushing Ass'y | Includes 30 to 30a This part replaces 706205732.

715010769

$255.19

30a

LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203908.

715010767

$250.72

40

Legion Red, RH Lower Suspension Arm Balljoint Bushing Ass'y | Includes 40 to 40a This part replaces 706205733.

715010776

$255.19

40a

Deep Black, RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203909.

715010774

$250.72

50

Hex. Flange Screw M12X1.75X85

250001168

$3.21

55

Hex. Flange Screw M12X1.75X85

250001168

$3.21

60

Elastic Flange Nut M12

250001195

$2.46

65

Elastic Flange Nut M12

250001195

$2.46

70

Ball Joint

706203084

$34.30

80

Ball Joint

706202045

$34.30

100

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

160

RH CV joint Guard

706202135

$8.48

170

LH CV joint Guard

706202134

$8.48

210

LH Front Knuckle

706202842

$196.99

220

RH Front Knuckle

706202844

$196.99

230

Circlip

293370035

$2.48

240

Hex Nut M12

250100239

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

265

Hex. Flange Elastic Nut M10

233201436

$2.00

270

Hex. Flange Screw M10 X 55

207605546

$2.00

280

Sway Bar Ass'y

706203649

$114.90

290

Sway Bar Double Link

706202937

$104.45

320

Stabilizer Bar Bushing

706204414

$7.24

325

Grease Elbow Fitting

293550085

$1.04

330

Clamp

706203437

$13.40

340

Hex. Flange Screw DIN.6921

250000951

$6.28

345

Elastic Flange Nut M12

250001195

$2.46

350

Elastic Flange Nut M12

250001195

$2.46

355

Hex. Flange Screw M12 X 70

250000858

$3.57

356

Flange Screw M12 X 60

250000857

$6.99
