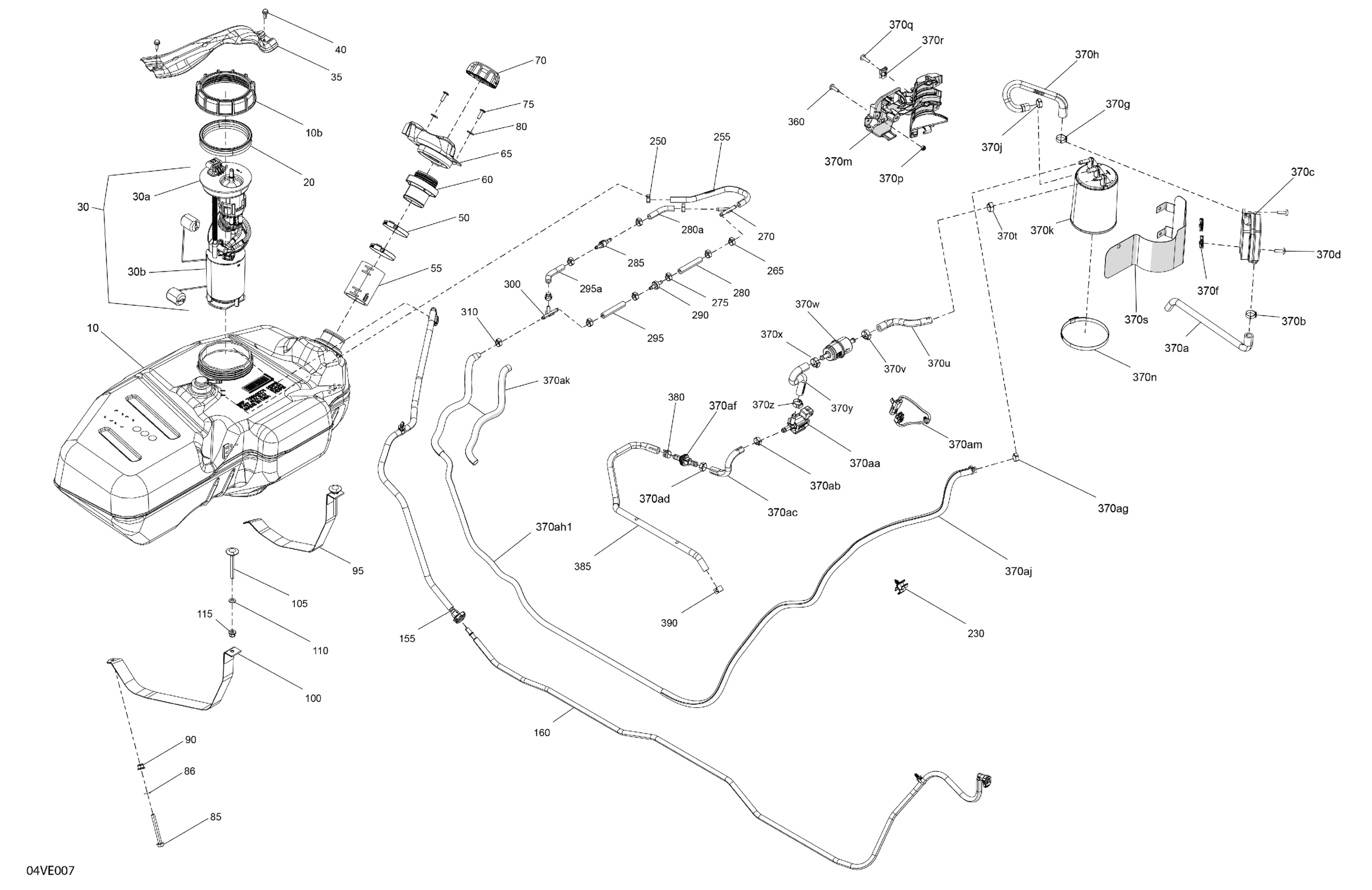

Can-Am Maverick R MAX - 996NT2 - XRS - 7DSV - Dusty Navy - 77" Width CALI, 2025 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001204

$379.07

10b

Special Nut M130

250100062

$20.12

20

Pump Gasket

293250514

$17.88

30

Fuel Pump | Includes 30 to 30b

709001057

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

35

Connector Guard

707901204

$18.63

40

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

50

Norma Clamp

293650081

$11.33

55

Filler Neck Hose

709001277

$28.33

60

Filler Neck

709001220

$14.33

65

Neck Support

709001332

$14.76

70

Fuel Cap

709000868

$29.07

75

Torx Screw M6 X 20

250000722

$1.54

80

Stainless Steel Flat Washer

234062670

$2.00

85

Hex. Flange Screw M8 X 70

207687044

$7.01

86

Flat Washer 8 mm

234081410

$0.79

90

Hex. Flange Elastic Nut M8

233281414

$1.31

95

RH Retaining Strap

709001290

$39.52

100

LH Retaining Strap

709001284

$39.52

105

Carriage Bolt M8 X 75

250001199

$6.00

110

Flat Washer 8 mm

234081410

$0.79

115

Hex. Flange Elastic Nut M8

233281414

$1.31

155

Fuel Tank Hose

709001209

$39.49

160

Fuel Tank Hose

709001315

$41.76

230

Hose Support

709000571

$4.30

250

Oetiker Clamp

293650042

$1.61

255

Front Formed Drain Hose

709001650

$14.33

265

Oetiker Clamp

293650042

$1.61

270

Y-Fitting

293710059

$9.40

275

Oetiker Clamp

293650042

$1.61

280

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

280a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

285

Check Valve

513033469

$29.07

290

Check Valve

275500398

$9.84

295

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

295a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

300

Y-Fitting

293710059

$9.40

310

Oetiker Clamp

293650042

$1.61

360

Torx Screw M6 X 20

250000712

$2.00

370a

Formed Hose

709001243

$15.64

370b

Oetiker Clamp

293650186

$3.82

370c

Air Filter

709000524

$41.01

370d

Torx Screw M6 X 20

250000712

$2.00

370f

Panel Nut M6 X 1.0

250100208

$1.22

370g

Oetiker Clamp

293650186

$3.82

370h

Formed Hose

709001242

$15.64

370j

Crimp Clamp

293650053

$2.78

370k

Charcoal Canister This part replaces 709001294.

709001673

$79.07

370m

Charcoal Canister Support

709001498

$4.76

370n

Tridon Clamp

293650054

$8.63

370p

Hex. Elastic Stop Nut M6

232561600

$1.06

370q

Torx Screw M6 X 20

250000712

$2.00

370r

Panel Nut M6 X 1.0

250100208

$1.22

370s

Module Support

709001488

$92.51

370t

Oetiker Clamp

293650042

$1.61

370u

Charcoal Canister Hose

709001496

$16.39

370v

Oetiker Clamp

293650046

$2.67

370w

Fuel Filter

513034047

$35.99

370x

Crimp Clamp, 15.3-706R

293650047

$3.03

370y

Charcoal Canister Hose

709001497

$16.39

370z

Crimp Clamp, 15.3-706R

293650047

$3.03

370aa

Purge Valve

709001449

$64.90

370ab

Crimp Clamp, 15.3-706R

293650047

$3.03

370ac

Formed Hose

709001651

$14.33

370ad

Crimp Clamp

293650053

$2.78

370af

Check Valve

275500941

$23.10

370ag

Oetiker Clamp

293650046

$2.67

370ah1

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

370aj

Tubing 16 Mm 1000Mm Long

219704408

$7.15

370ak

Tubing 16 Mm 1000Mm Long

219704408

$7.15

370am

Module Wiring Harness

710009741

$18.63

380

Spring Clamp

293650321

$3.81

385

Formed Charcoal Canister Hose

709001540

$29.82

390

Norma Spring Clamp

293650214

$14.90
