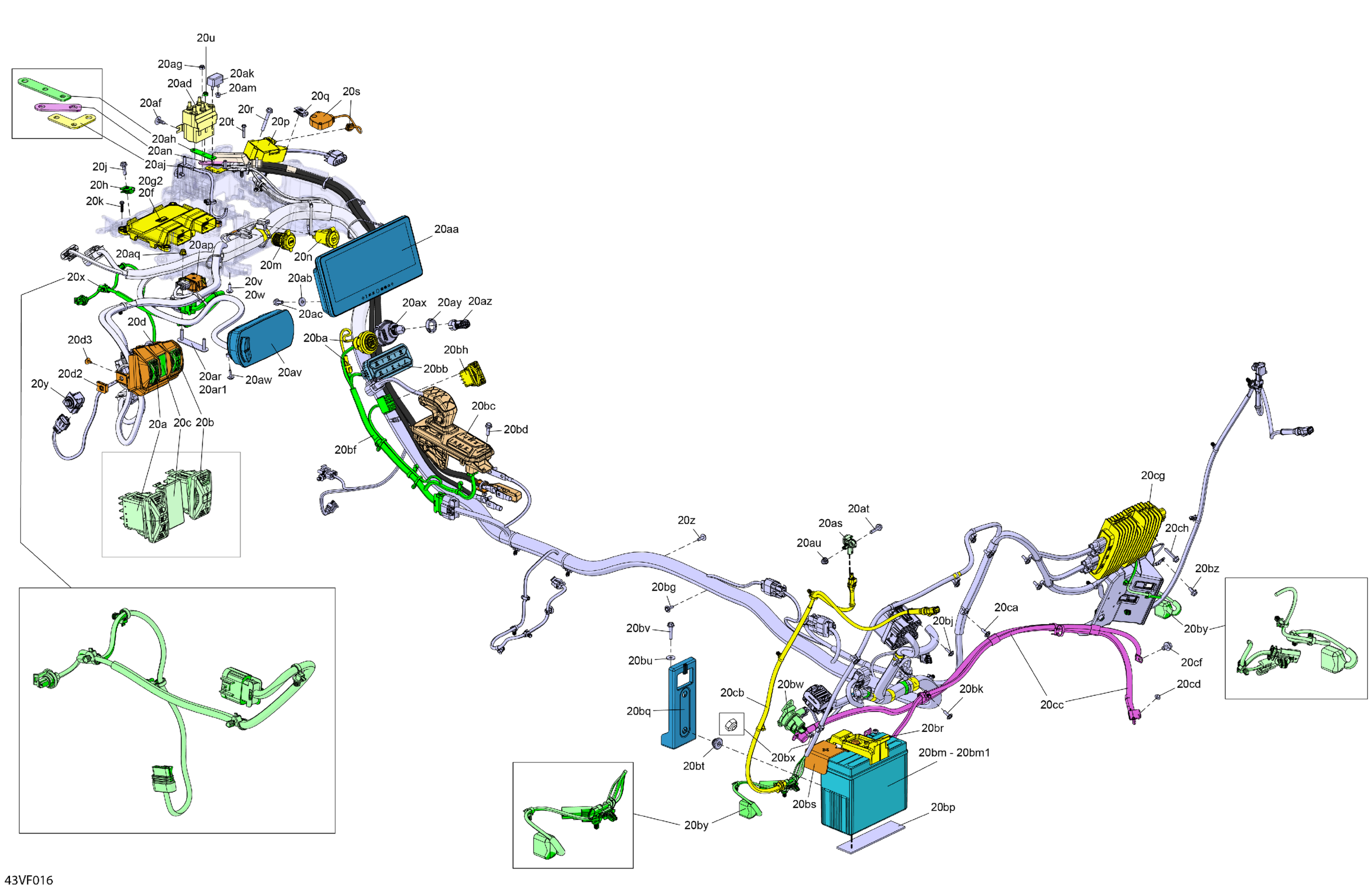

Can-Am Maverick R Max - 996NT2 - XRC SAS - 7JTF - Loft Green Satin - 77" Width, 2026 Electric - Central Electric Diagram

#

Description
Price

20a

Light Switch

710007663

$47.49

20b

Winch Switch

710007665

$87.99

20c

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

20d

Switch Support Ass'y | Includes 20d to 20d3

710009476

$18.99

20d2

Panel Nut M6 X 1.0

250100208

$1.46

20d3

Plastite Screw M4 X 10

250000805

$2.11

20f

BCM Moldule OPT #1

710010598

$939.99

20g2

BCM Moldule OPT #1

710010598

$939.99

20h

Panel Nut M6 X 1.0

250100208

$1.46

20j

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

20k

Hex. Flange PT Screw K50 X 20

241152040

$2.11

20m

USB Outlet

219400510

$42.99

20n

12V Power Outlet

710005374

$33.99

20p

Radio Frequency Module

515179191

$1.00

20q

Panel Nut M6 X 1.0

250100208

$1.46

20r

Hex. Flange Screw

207664554

$2.11

20s

Radio Frequency Antenna

515179821

$129.99

20t

Hex. Flange Screw K50 X 25

250000680

$1.89

20u

Elastic Stop Nut M6, Brass

232561200

$4.23

20v

Screw PT Type K-50 X 16

250000959

$2.11

20w

Screw PT Type K-50 X 16

250000959

$2.11

20x

Accelerator Pedal Wiring Harness

710008927

$229.99

20y

Door Switch

710010023

$76.99

20z

Screw PT Type K-50 X 16

250000959

$2.11

20aa

Multifunction Gauge 10

710010375

$2,039.99

20ab

Stainless Steel Flat Washer

234062670

$2.11

20ac

Hex. Flange Screw M6 X 16

207661644

$0.74

20ad

Solenoid

710006991

$62.49

20af

Black, Dart

293730011

$0.99

20ag

Elastic Stop Nut M6, Brass

232561200

$4.23

20ah

Copper Bar 1

710009727

Unavailable

20aj

Copper Bar 2

710009728

Unavailable

20ak

Circuit Breaker 50 Amp

710007039

$19.49

20am

Hex. Flange Elastic Nut M5

233251414

$1.04

20an

Copper Bar 3

710011000

$11.49

20ap

Inertial Sensor

710010113

$419.99

20aq

Hex. Flange Elastic Nut M6

233261494

$1.58

20ar

Sensor Support | Includes 1825 to 1825a

710009676

$17.99

20ar1

Sensor Support ED

710009651

$17.99

20as

Sensor

710009009

$69.99

20at

Hex. Flange Screw M6 X 25

207662554

$1.48

20au

Hex. Flange Elastic Nut M6

233261494

$1.58

20av

Multifunction Compact Gauge

710008298

$389.99

20aw

Screw M4 X 16

250000725

$3.49

20ax

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

20ay

Specialized Nut

278004274

$3.28

20az

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

20ba

Start-Stop Button | Not Shown

710005213

$60.49

20bb

Multifunction Switch

710010054

$126.99

20bc

Electronic Gear Shift Lever

710007338

$329.99

20bd

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

20bf

Console Wiring Harness

710010955

$94.99

20bg

Screw PT Type K-50 X 16

250000959

$2.11

20bh

Vol Up/Down Switch

710010952

$48.99

20bj

Screw M4 X 16

250000725

$3.49

20bk

Screw PT Type K-50 X 16

250000959

$2.11

20bm

Battery | Includes 900 to 900a

515176151

$219.99

20bm1

Battery Bolt Kit

515176081

$6.99

20bp

Rubber Pad

293830126

$13.76

20bq

Fixation Plate

710004788

$11.49

20br

Battery Support

710009128

$8.99

20bs

Battery Cable Cap

710006471

$2.59

20bt

Stopper Rubber

705014429

$5.95

20bu

Flat Washer 6 mm

234062410

$0.77

20bv

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

20bw

Starter Relay

278003012

$42.49

20bx

Elastic Stop Nut M6, Brass

232561200

$4.23

20by

Junction Wiring Harness

710010700

$899.99

20bz

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20ca

Screw PT Type K-50 X 16

250000959

$2.11

20cb

Junction Wiring Harness

710008618

$439.99

20cc

Starter Wiring Harness

710010036

$77.99

20cd

Elastic Stop Nut M6, Brass

232561200

$4.23

20cf

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

20cg

Voltage Regulator

710007558

$360.49

20ch

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11
