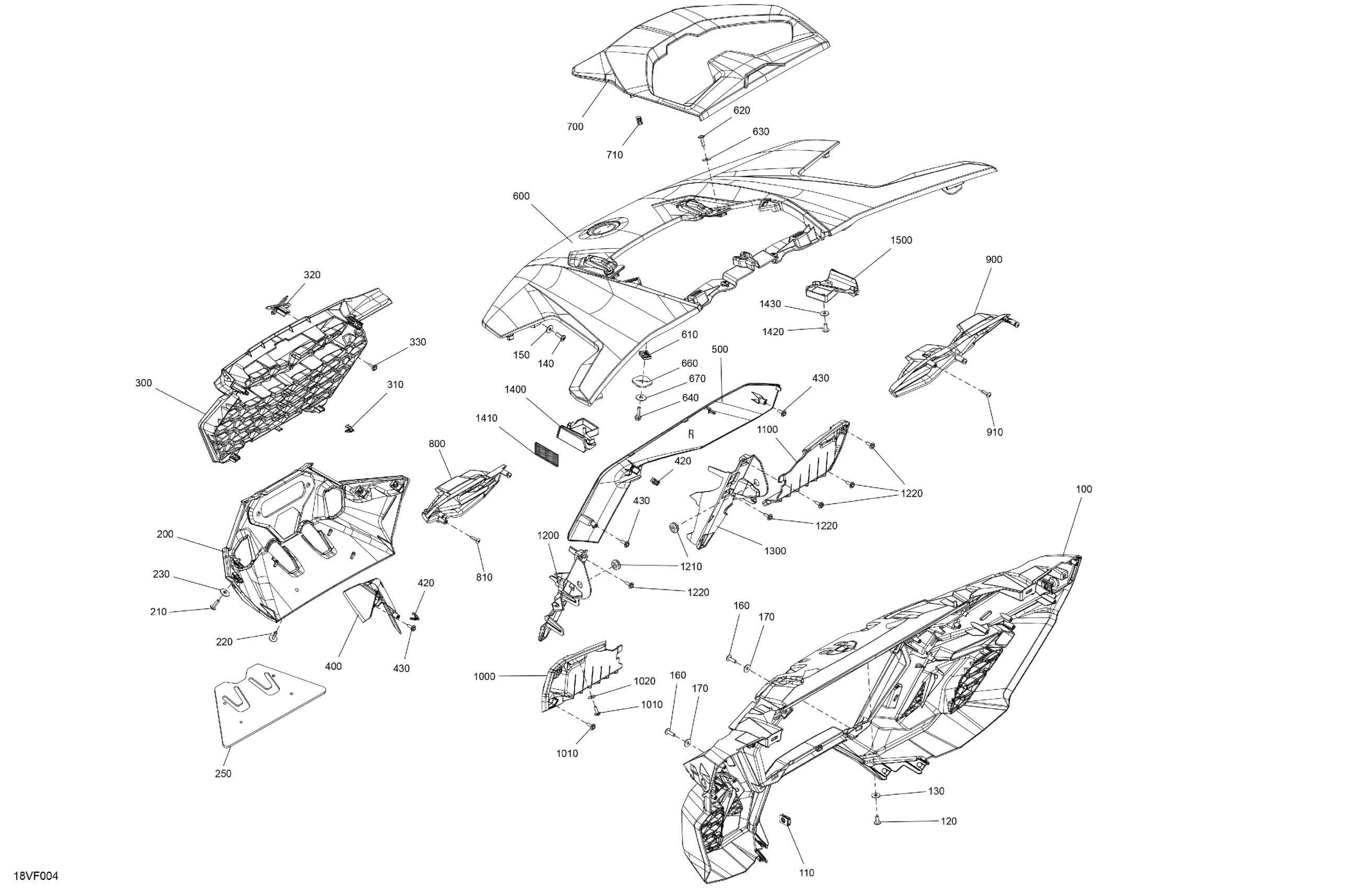

Can-Am Maverick R Max - 996NT2 - XRC SAS - 7JTF - Loft Green Satin - 77" Width, 2026 Body - Hood Diagram

Description

Price

100

Front Fascia

708500006

$69.20

110

Panel Nut M6 X 1.0

250100208

$1.07

120

Torx Truss Screw M6 X 16

250000721

$1.39

130

Stainless Steel Flat Washer

234062670

$1.74

140

Torx Screw M6 X 20

250000722

$1.34

150

Stainless Steel Flat Washer

234062670

$1.74

160

Torx Screw M6 X 20

250000722

$1.34

170

Stainless Steel Flat Washer

234062670

$1.74

200

Hyper Silver, Front Deflector

708500090

Unavailable

210

Torx Screw M6 X 20

250000722

$1.34

220

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

230

Stainless Steel Flat Washer

234062670

$1.74

250

Front Lower Skid Plate

708500065

$16.89

300

Deep Black, Grille

708500007

$50.74

310

Clip

517306478

$1.37

320

Emblem Logo BRP

705017645

$10.98

330

Screw M4 X 16

250000725

$2.87

400

Deep Black, LH Front Fairing Trim

708500016

$36.12

420

Clip

517306478

$1.37

430

Screw PT Type K-50 X 16

250000959

$1.74

500

Deep Black, RH Front Fairing Trim

708500017

$36.12

600

Loft Green, Hood | Includes 600 to 600a

708500118

$503.05

610

Panel Nut M6 X 1.0

250100208

$1.07

620

Torx Screw M6 X 20

250000722

$1.34

630

Stainless Steel Flat Washer

234062670

$1.74

640

Hex. Flange Screw M6 X 25

207562544

$1.39

660

Support Plate

705003841

$0.91

670

Washer M6

250200029

$1.83

700

Deep Black, Central Hood Trim

708500003

$101.51

710

Clip

517306478

$1.37

800

LH Headlight Trim

708500085

$34.58

810

Torx-Truss Pt K40 X 16

250000759

$1.74

900

RH Headlight Trim

708500086

$34.58

910

Torx-Truss Pt K40 X 16

250000759

$1.74

1000

LH Front Body Panel Cap

708500024

$20.74

1010

Screw PT Type K-50 X 16

250000959

$1.74

1020

Washer M5

250200025

$0.61

1100

RH Front Body Panel Cap

708500025

$20.74

1200

LH Radiator Deflector

708500021

$16.89

1210

Overmolded Grommet

293720130

$4.38

1220

Screw PT Type K-50 X 16

250000959

$1.74

1300

RH Radiator Deflector

708500022

$16.89

1400

LH Front Reflector Support

708500029

$4.98

1410

Amber, Reflector

520002680

$19.20

1420

Torx Truss Screw M6 X 16

250000721

$1.39

1430

Stainless Steel Flat Washer

234062670

$1.74

1500

RH Front Reflector Support

708500030

$4.98
