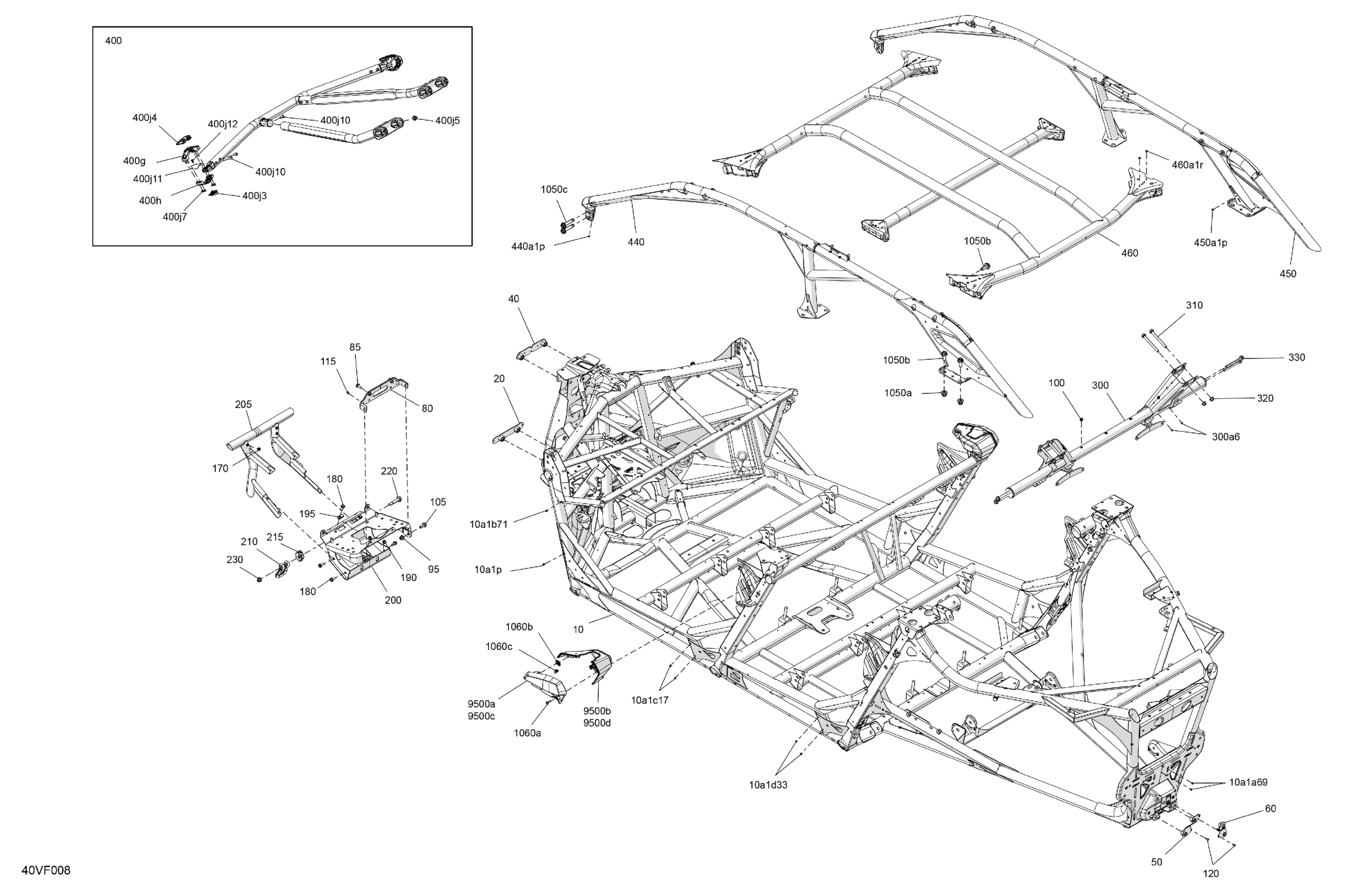

Can-Am Maverick R Max - 996NT2 - XRC SAS - 7JTF - Loft Green Satin - 77" Width, 2026 Frame - System Diagram

#

Description
Price

9500a

LH Central Cage Trim

705017709

$32.06

9500b

RH Central Cage Trim

705017710

$32.06

9500c

LH Central Cage Trim

705017711

$32.06

9500d

RH Central Cage Trim

705017712

$32.06

10

Deep Black, Chassis Kit

715010381

Unavailable

10a1a15c

Pop Rivet 3/16 X ,425

293150293

$0.30

10a1a16c

Pop Rivet 3/16 X ,425

293150293

$0.30

10a1a17c

Pop Rivet 3/16 X ,425

293150293

$0.30

10a1a69

Pop Rivet 3/16 X ,425

293150293

$0.30

10a1b71

Pop Rivet 3/16 X ,425

293150293

$0.30

10a1c17

Pop Rivet 3/16 X ,425

293150293

$0.30

10a1d33

Pop Rivet 3/16 X ,425

293150293

$0.30

10a1p

Pop Rivet 3/16 X ,425

293150293

$0.30

20

Retaining Plate

705212438

$18.63

40

Retaining Plate

705212518

$18.63

50

Retaining Plate

705209767

$18.63

60

Retaining Plate

705209773

$18.63

80

Interior Bumper Reinforcement

705210435

$31.31

85

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

95

Flange Elastic Nut M10

233201466

$3.01

100

Insert Half Hex Body M6 x 1.0

250100199

$2.91

105

Hex. Flange Screw M10 X 25

207502546

$2.00

115

Pop Rivet 3/16 X ,425

293150293

$0.30

120

Pop Rivet 3/16"

390402300

$0.73

170

Insert Half Hex Body M6 x 1.0

250100199

$2.91

180

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

190

Hex. Flange Nut M8

233181414

$1.04

195

Panel Nut M8 X 1.25

250100118

$1.87

200

Front Bumper

705209762

$246.24

205

Deep Black, Front Bumper Kit

715010915

Unavailable

210

Forged Tow Hook

705210586

$29.82

215

Bumper Cap

709402854

$0.84

220

Shoulder Screw M10 X 1.5 X 60

250001240

$9.16

230

Flange Elastic Nut M10

233201466

$3.01

300

Safety Belt Anchorage | Includes 300 to 300a6

705209776

$128.33

300a6

Pop Rivet 3/16 X ,425

293150293

$0.30

310

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.01

320

Hex. Flange Nut M10

233101466

$2.81

330

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.01

400

Deep Black, Intrusion Bar | Includes 400 to 400j12

715007312

$478.99

400g

Black, Over Mounting Clamp

705210258

$39.52

400h

Black, Over Mounting Clamp

705210259

$39.52

400j3

Molded Plug

705210355

$24.60

400j4

Molded Cover

705210528

$35.04

400j5

Flange Elastic Nut M10

233201466

$3.01

400j7

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.55

400j10

Torx Screw M8 X 16

250000751

$5.33

400j11

Formed Shim

705211104

$18.63

400j12

Dart

293730062

$1.87

440

Deep Black, LH Cage Kit

715010928

$619.99

440a1p

Pop Rivet 3/16 X ,425

293150293

$0.30

450

Deep Black, RH Cage Kit

715010378

$619.99

450a1p

Pop Rivet 3/16 X ,425

293150293

$0.30

460

Deep Black, Central Cage Kit

715010372

$399.99

460a1r

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

1050a

Elastic Flange Nut M12

250001195

$2.46

1050b

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

1050c

Flange Screw M12 X 60

250000857

$6.99

1060a

Torx Screw M6 X 20

250000722

$1.54

1060b

Panel Nut M6 X 1.0

250100208

$1.22

1060c

Clip

517306478

$1.03
